Mettler Toledo PS60 Scale Repair Firmware Backup and Change Scale form LB to LB/ OZ
I have been searching for a decent shipping scale and came across a PS6L on a local marketplace facilitator. I messaged the seller they had a PS6L in the photo but said they sold it but had another one. We met up and when they arrived and it was a Mettler Toledo PS60 and the USB Port on it was a little loose (broken) LOL. Since it was not a PS6L we agreed on a price! Deal was Done. So Now time for a Mettler Toledo PS60 Scale Repair.
Sorry, no Treardown photos this time. See reassembly photo. For Disassembly Just Clipped the wire lock and broke the seal!

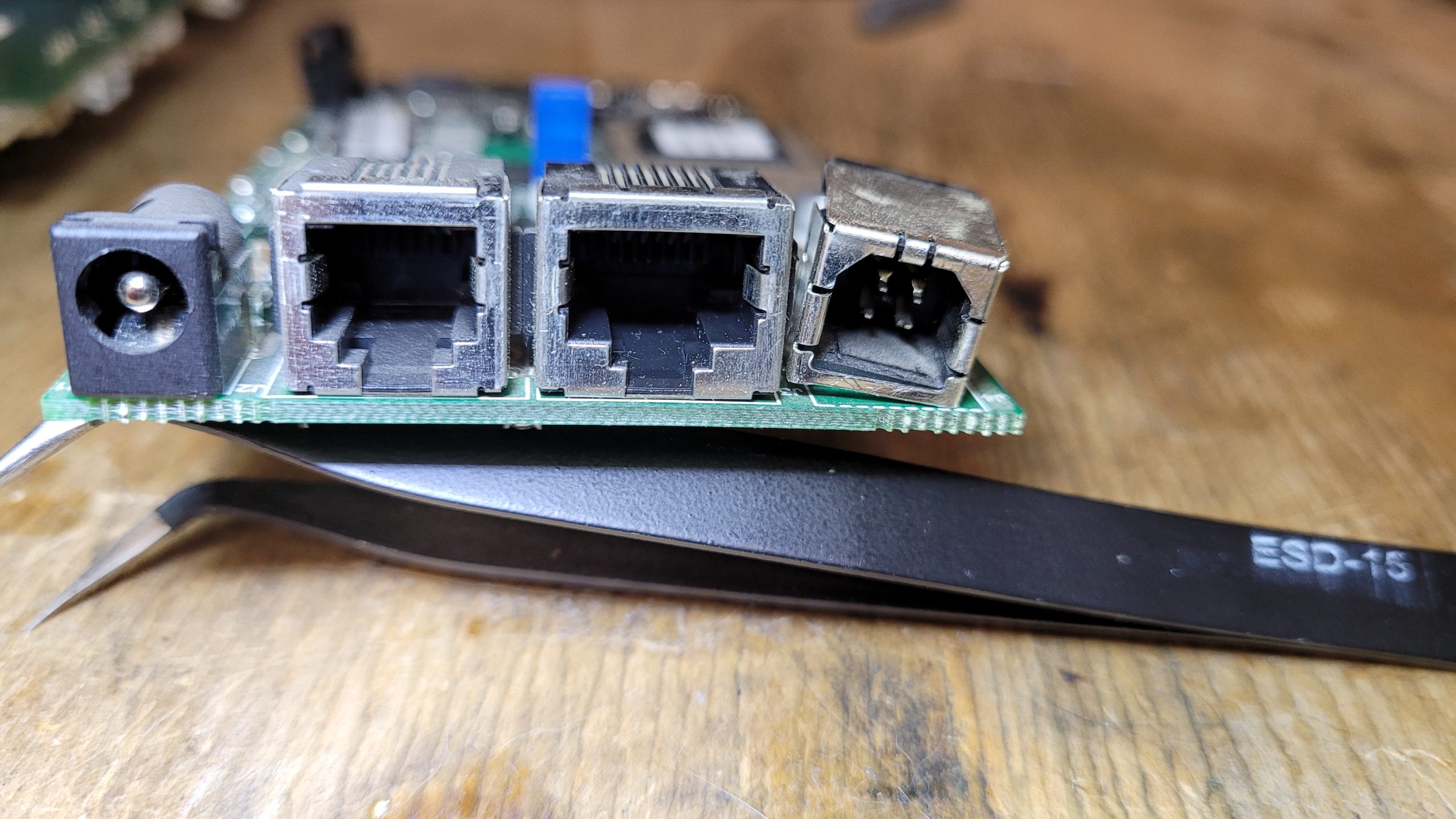

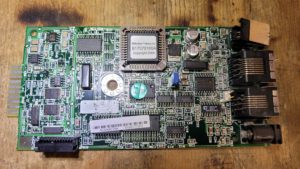

Mettler Toledo PS60 Main Board Removed You Can see the Pins on the Right.. USB Port is Also Canted Top Right First Photo.

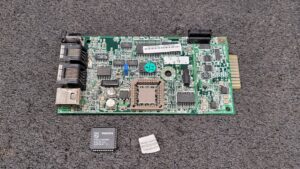

USB Port Removed, I salvaged a quality Foxcon USB Port Form a Donor PCB I Had In the what the wife calls the Horder bin..

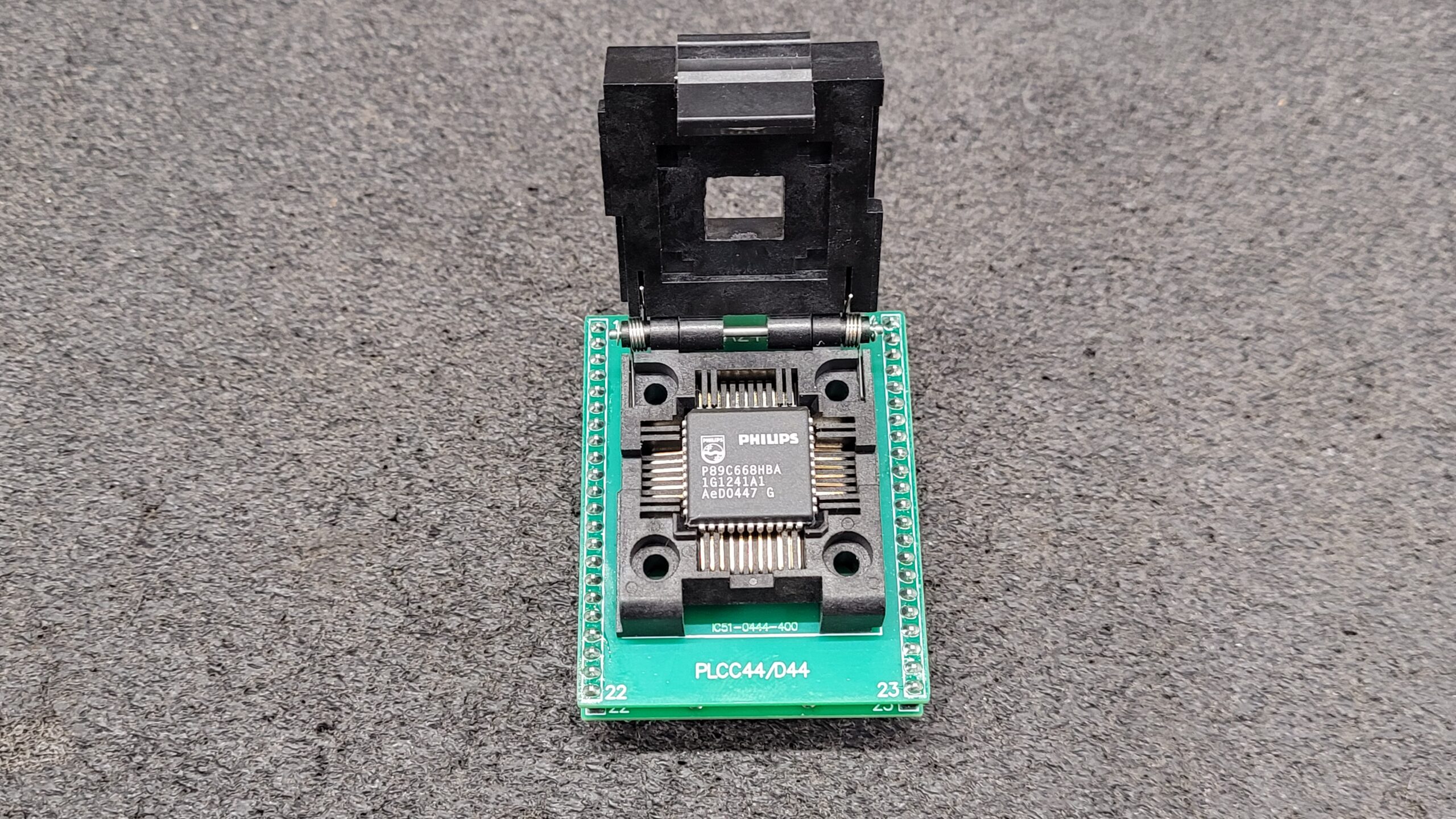

Under the Sticker PLCC Chip Philips P89C668HBA PLCC 44 8-bit Flash micro-controller it is in there tight and could not find my extractor or I would have made a backup.

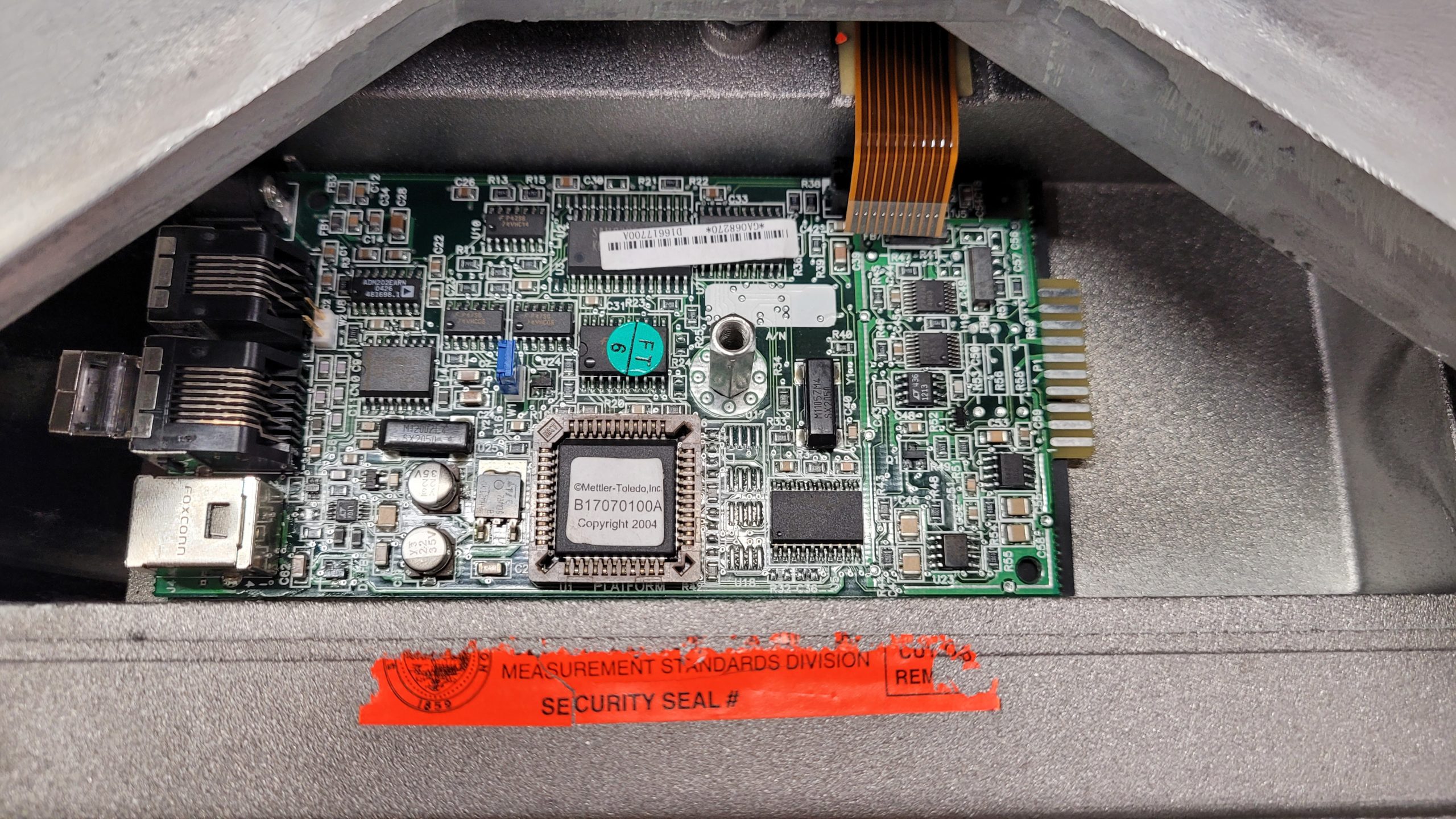

New USB Connector Soldered On to the Mettler Toledo PS60 Main Board And Reinstalled in The Chassis Held In By a Large Standoff, The only Connection is Load Cell Ribbon Cable and Display and USB Cable.

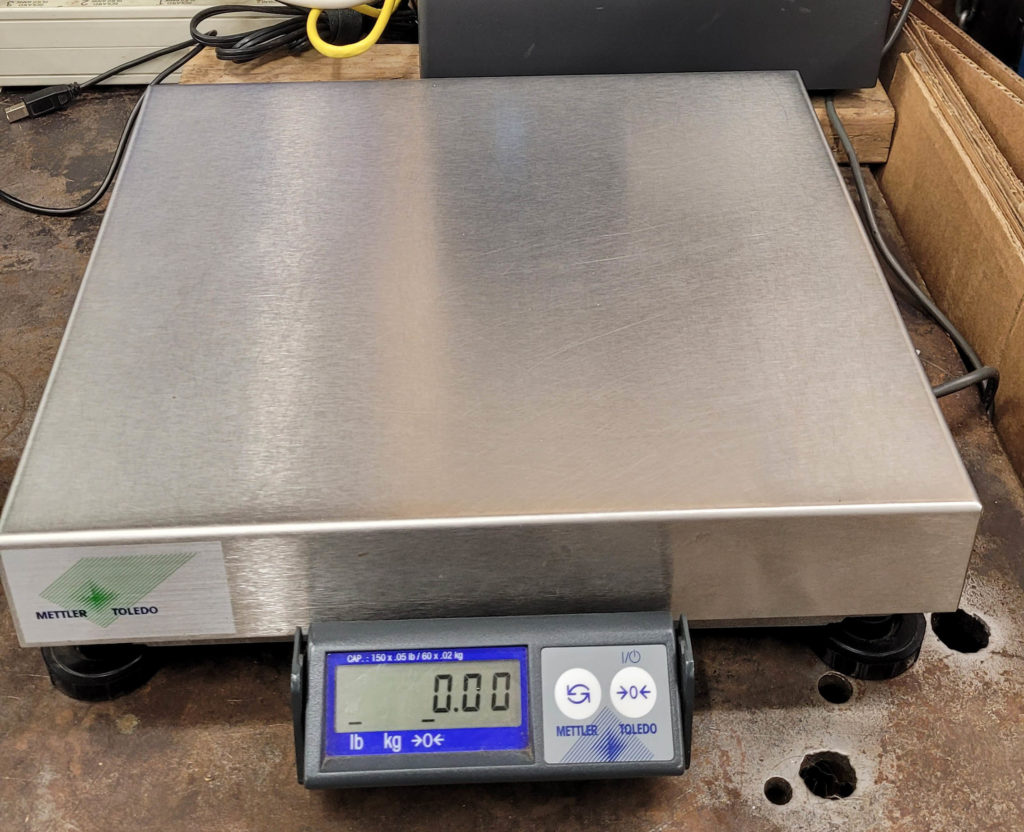

The Mettler Toledo PS60 Scale Repair is it one of the simplest repairs I have done in a long time. This PS60 Has a Nice USB Connector now and should last me years.
December 15th 2023, Playing with the Xeltek Superpro 7500 and the Magic Chip Searching for Target Devices… I revisited this Scale.
I decided to do a Firmware Backup I will Assume this MCU also holds the scales calibration Data.
We Had a Successful Read and Verify Success.

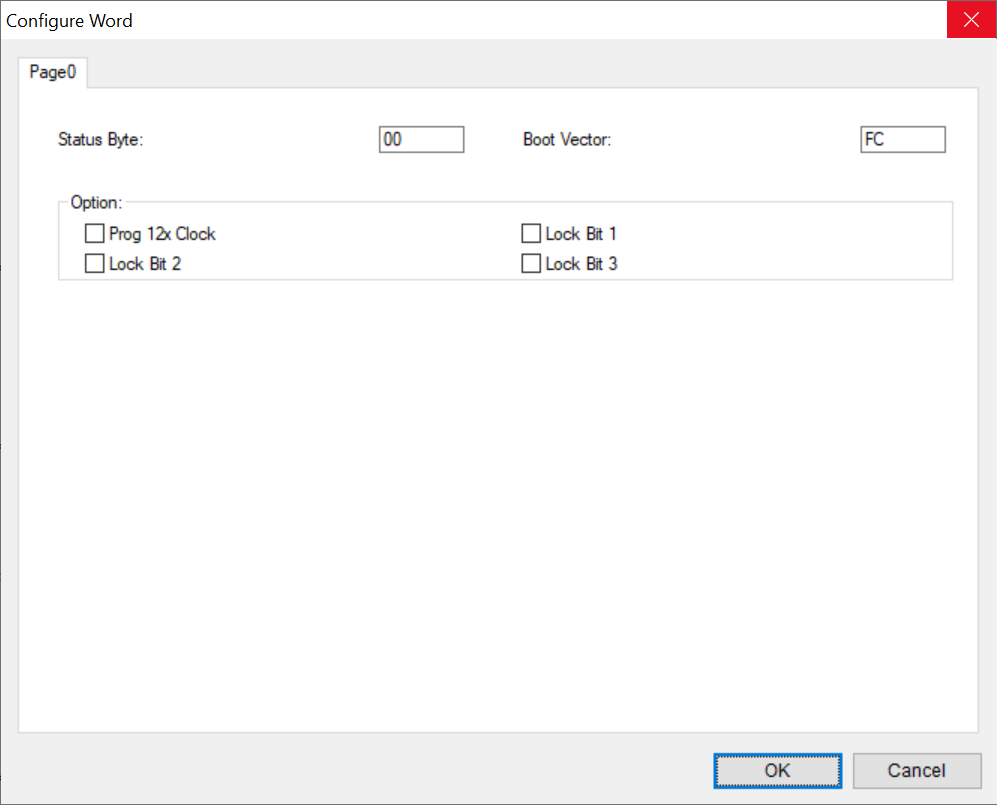

Device Configuration Looks as If No Lock Bits Set

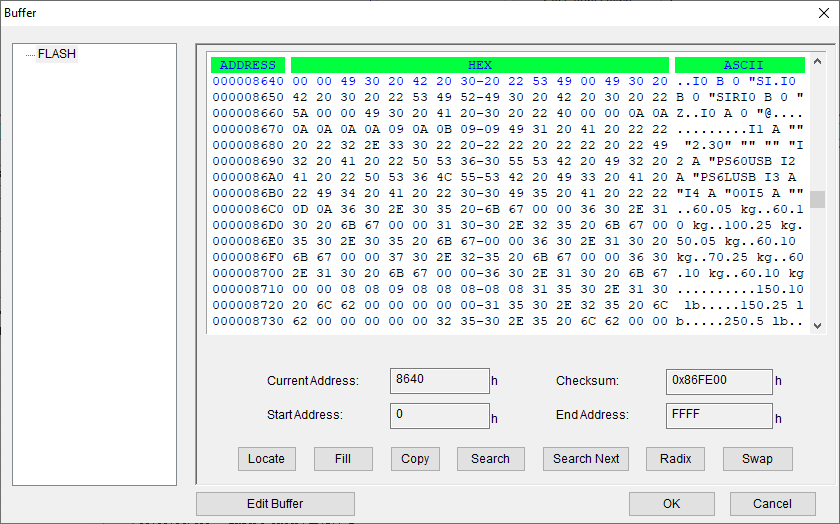

Scrolling thru the Buffer of the Flash Memory it Looks to be Valid Data

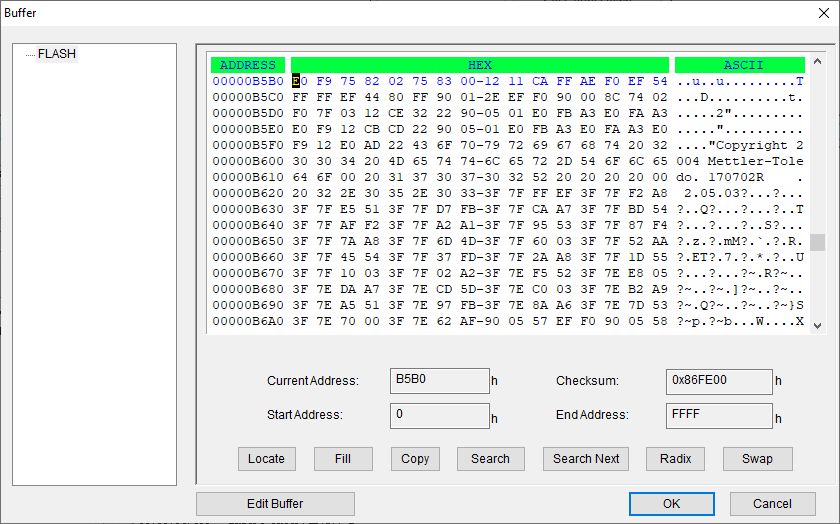

Scanning Thru the Buffer I find.. Mettler Toledo 170702R 2.05.03

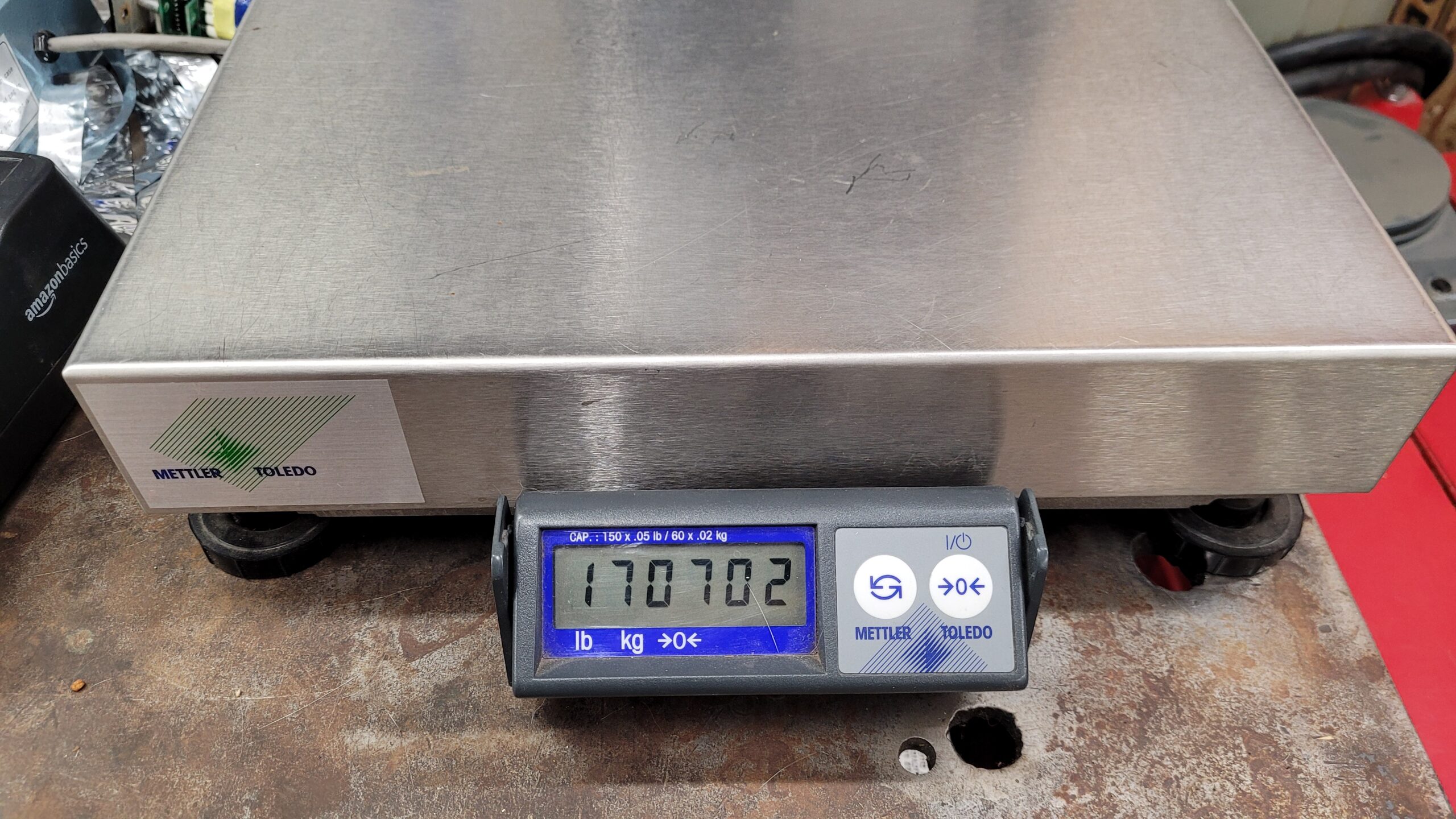

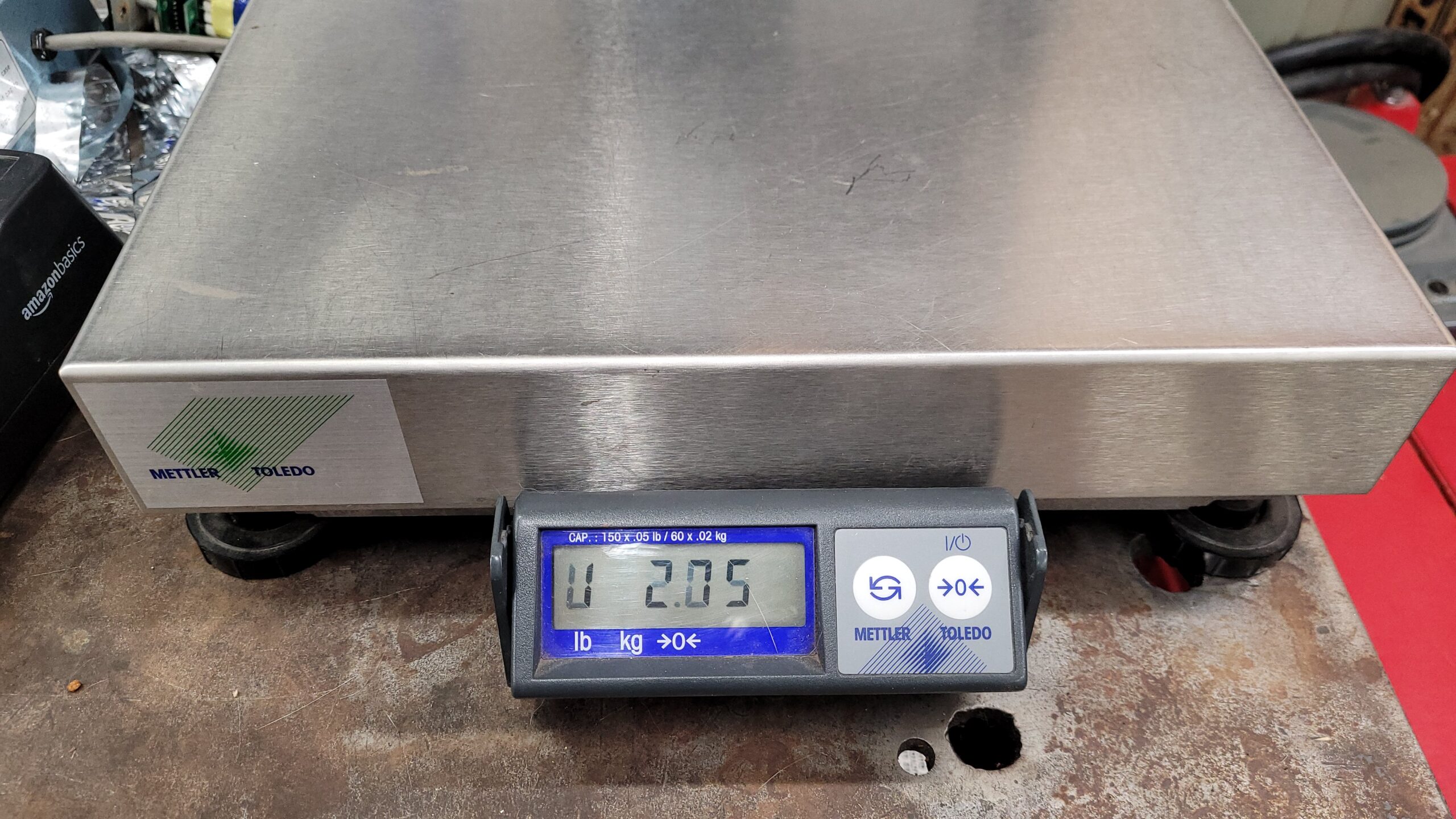

Booting the Scale, Shows Same Info.
Video Of Scale Booting After Erasing the Philips P89C668HBA Chip and Reprograming it From the Firmware Backup. I Will Call this a Successful Backup.
PS-60 Firmware Backup Downlaod
Procedure to change Mettler Toledo PS60 Scale to a PS6L From the Mettler Toledo PS Series Operator Technical Manual Valid for PS15, PS30, PS60, PS90, PS3L PS6L Scales.
