Bytek S125 Eprom Prom Gang Programmer Teardown

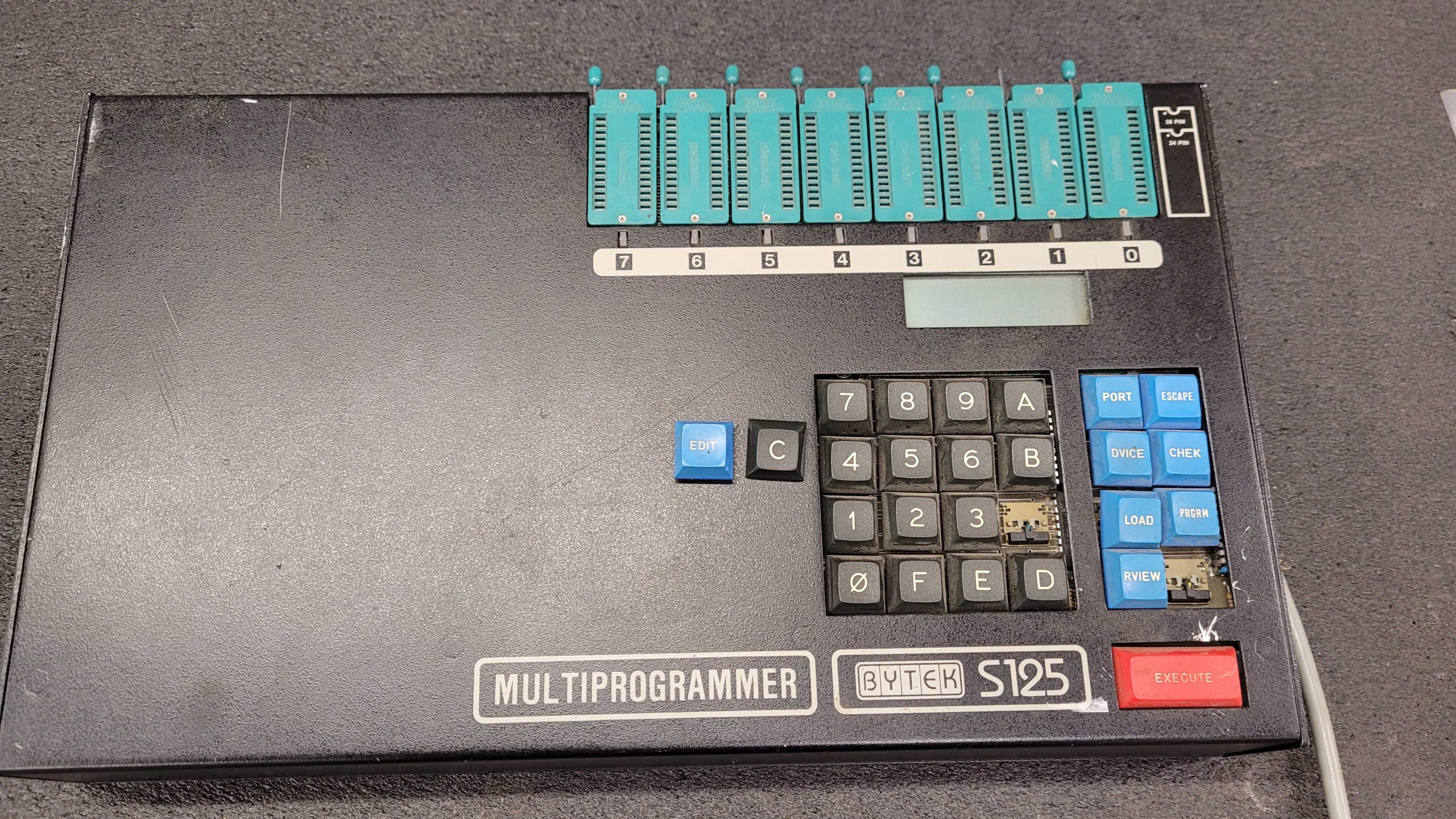

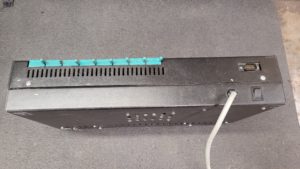

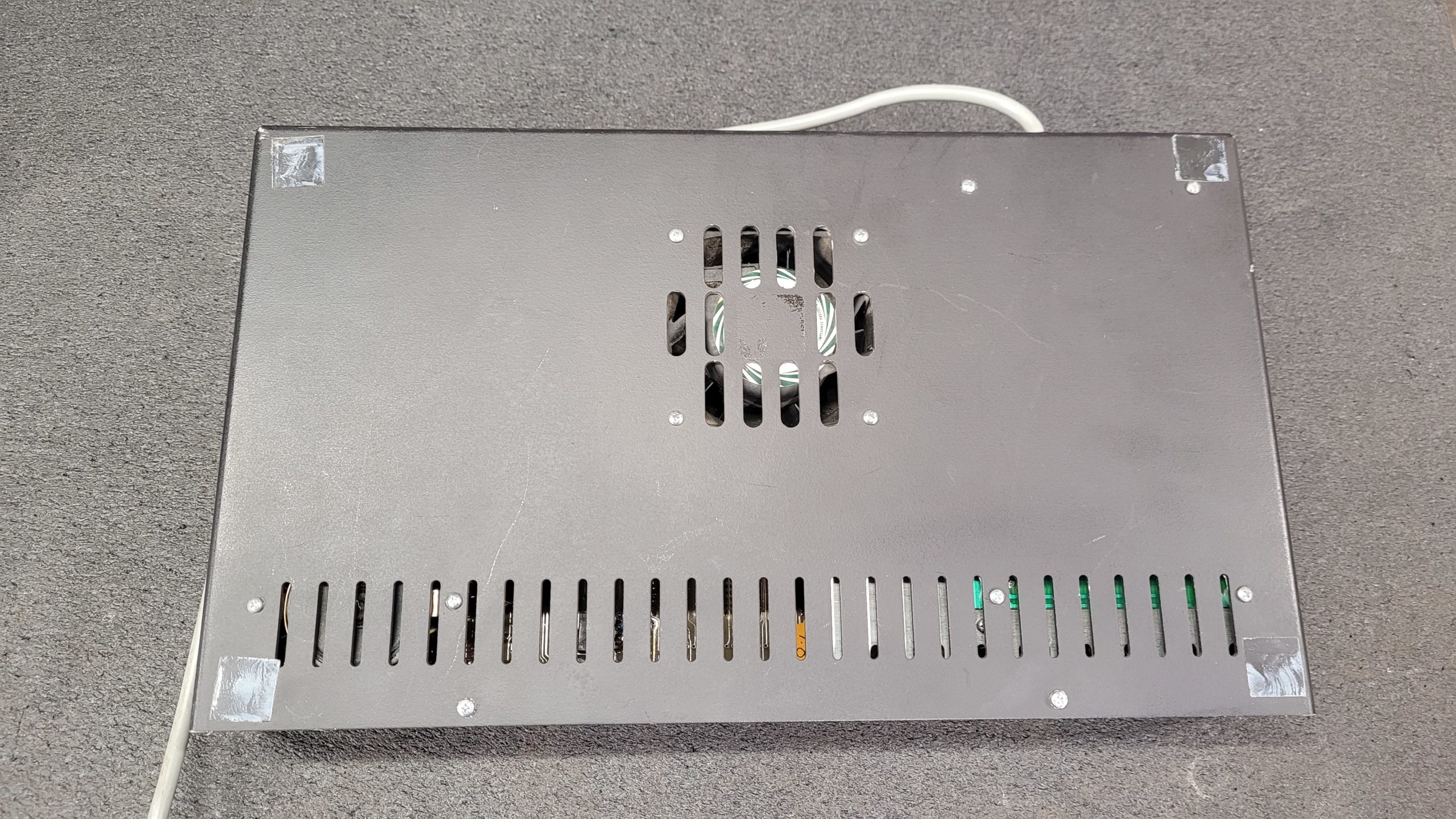

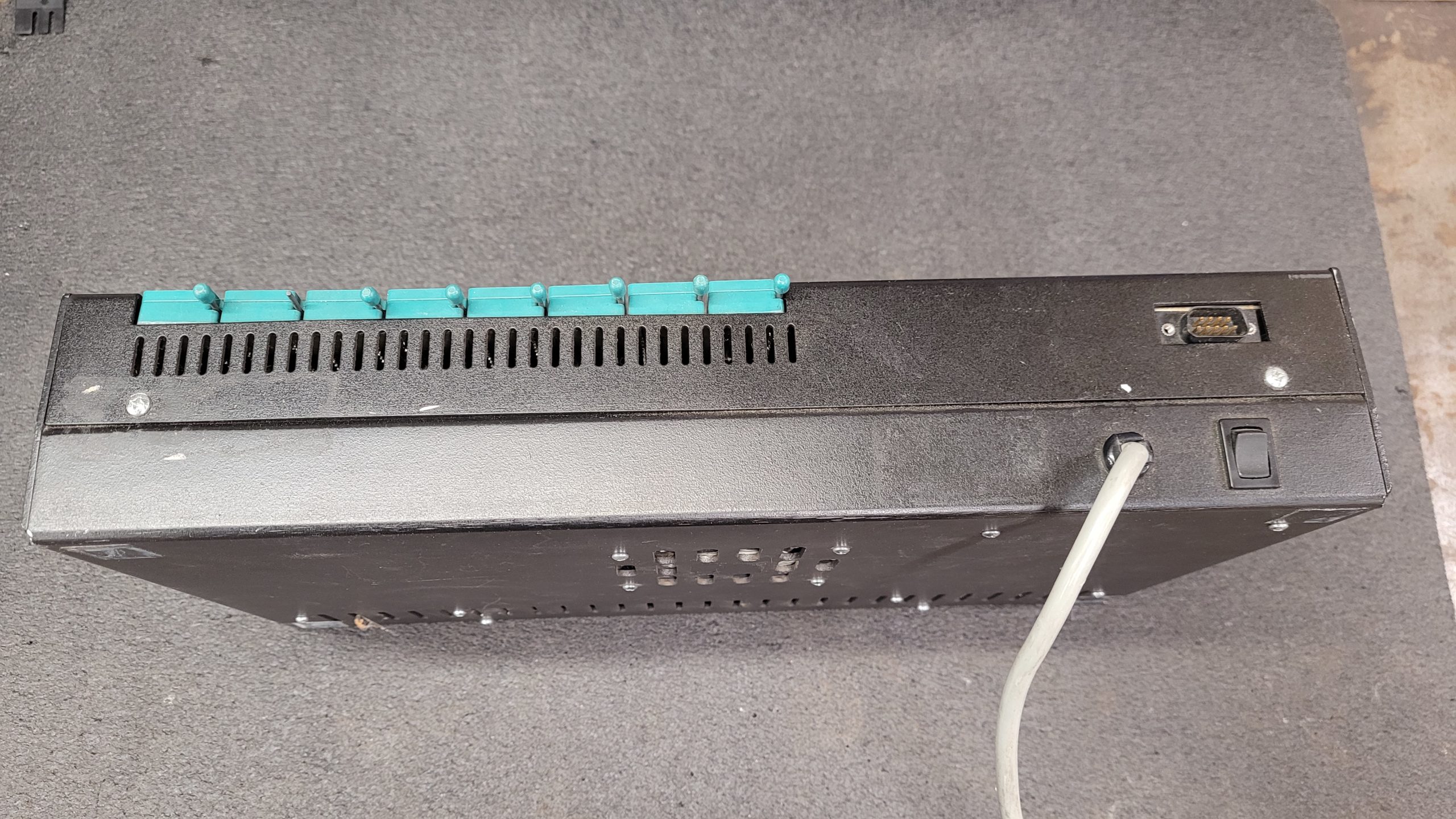

This is the Bytek S125 Programmer from the mid to late 1980’s.

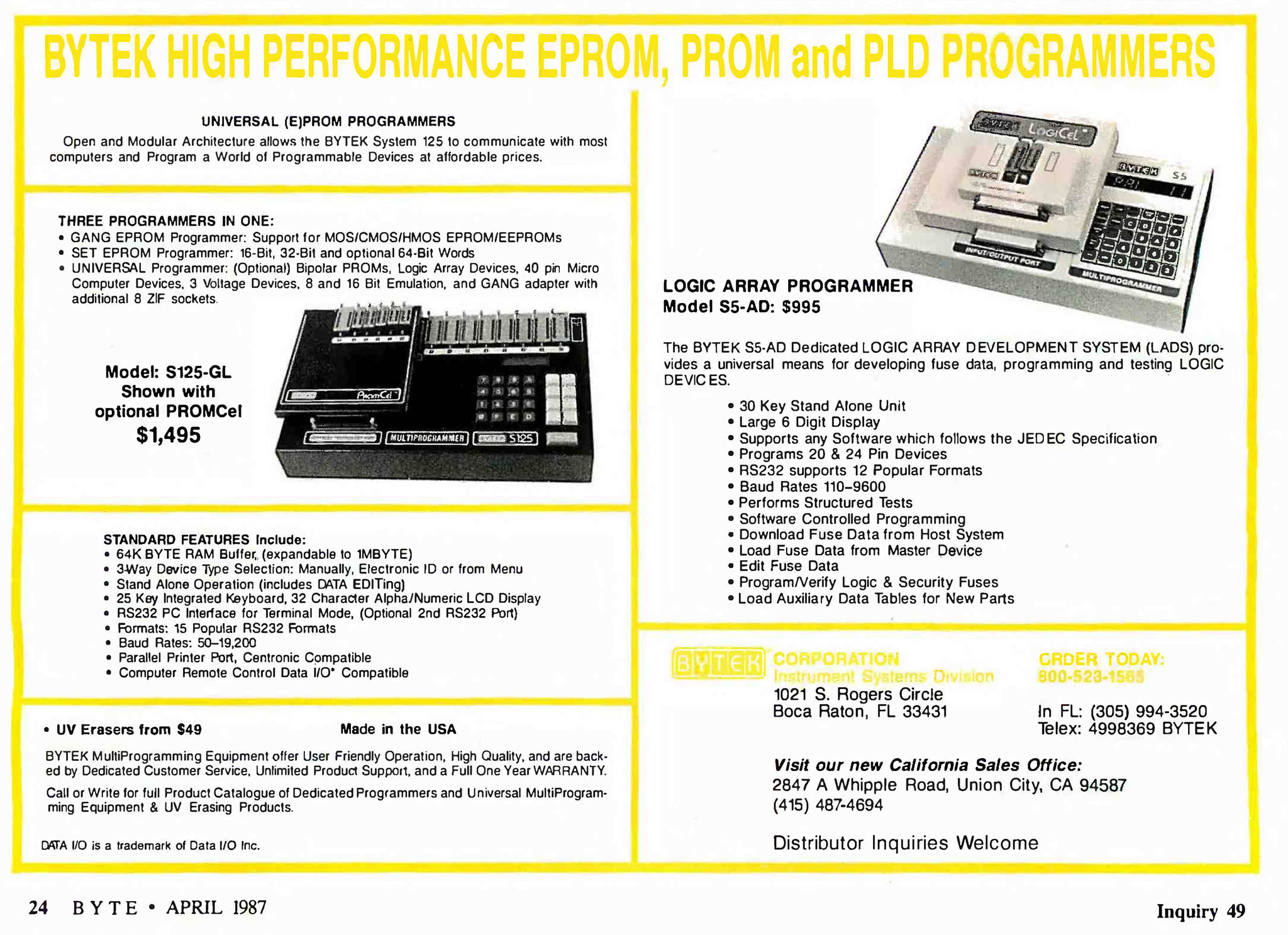

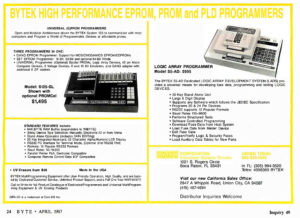

A Few of the buttons have Broken off been floating around here for decades! I lost the diskettes that had the software I was unable to locate a copy online. I was able to find a sales advertisement from byte magazine April 1987
I am Doing a Quick Tear down To Document It For Historical Value.
(I Will Give This Away if Someone wants to pay Shipping Costs or it is Going to the Recycler on my next E-waste Run)
So, Lets Open Her Up! Wow look at all them bodge wires!!

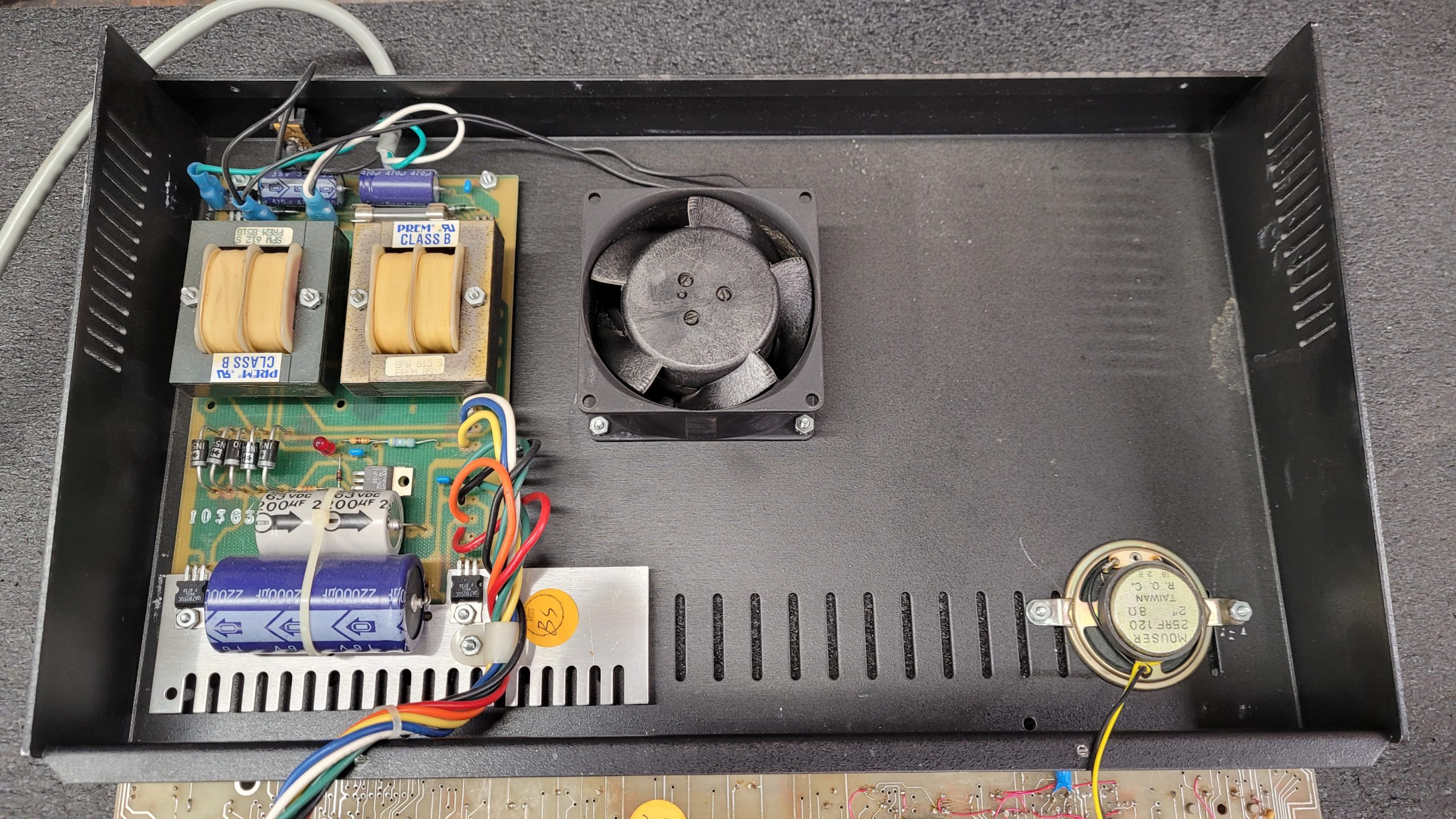

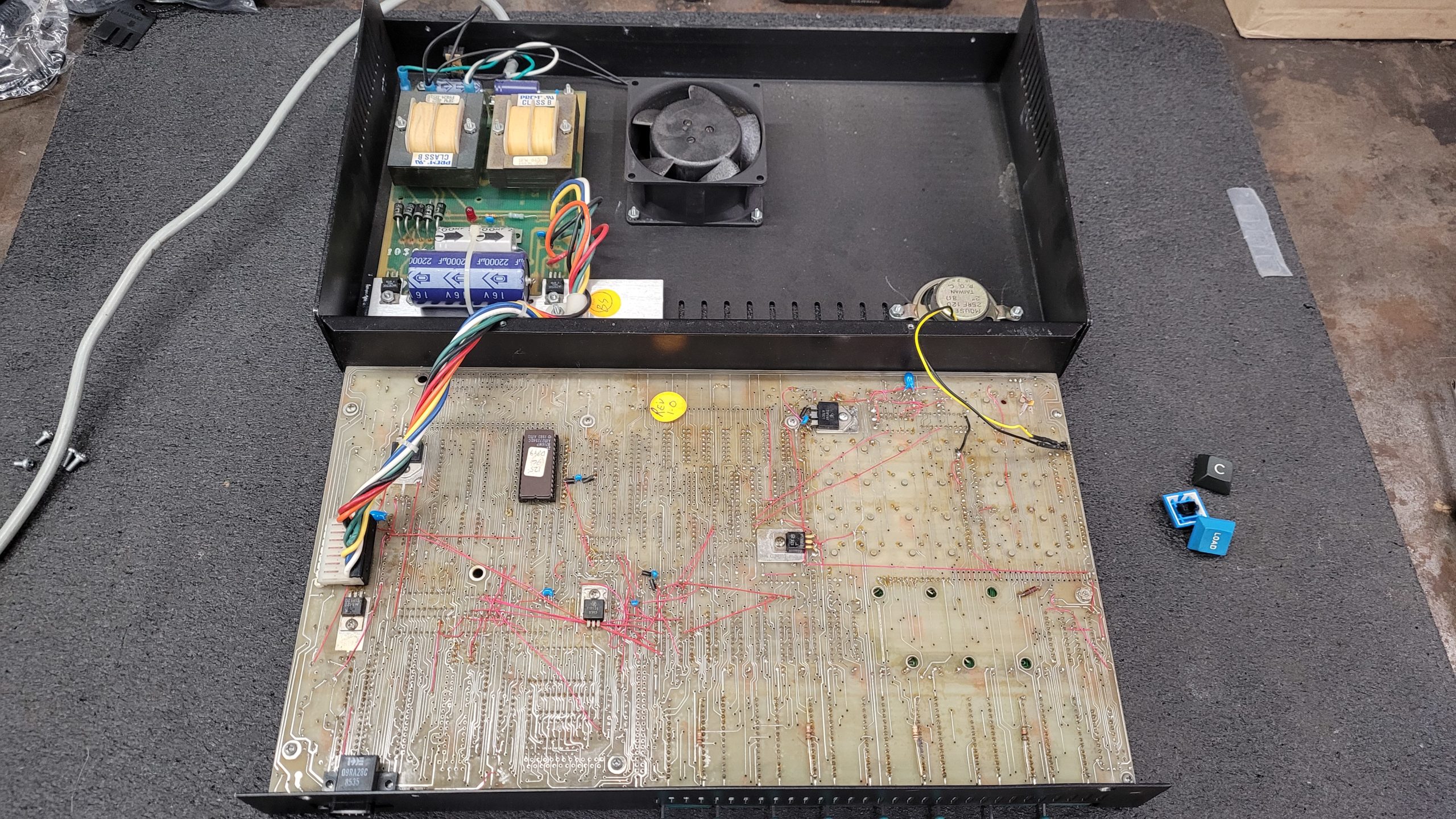

Base holds the power supply, fan, and speaker the Top cover holds the main board.

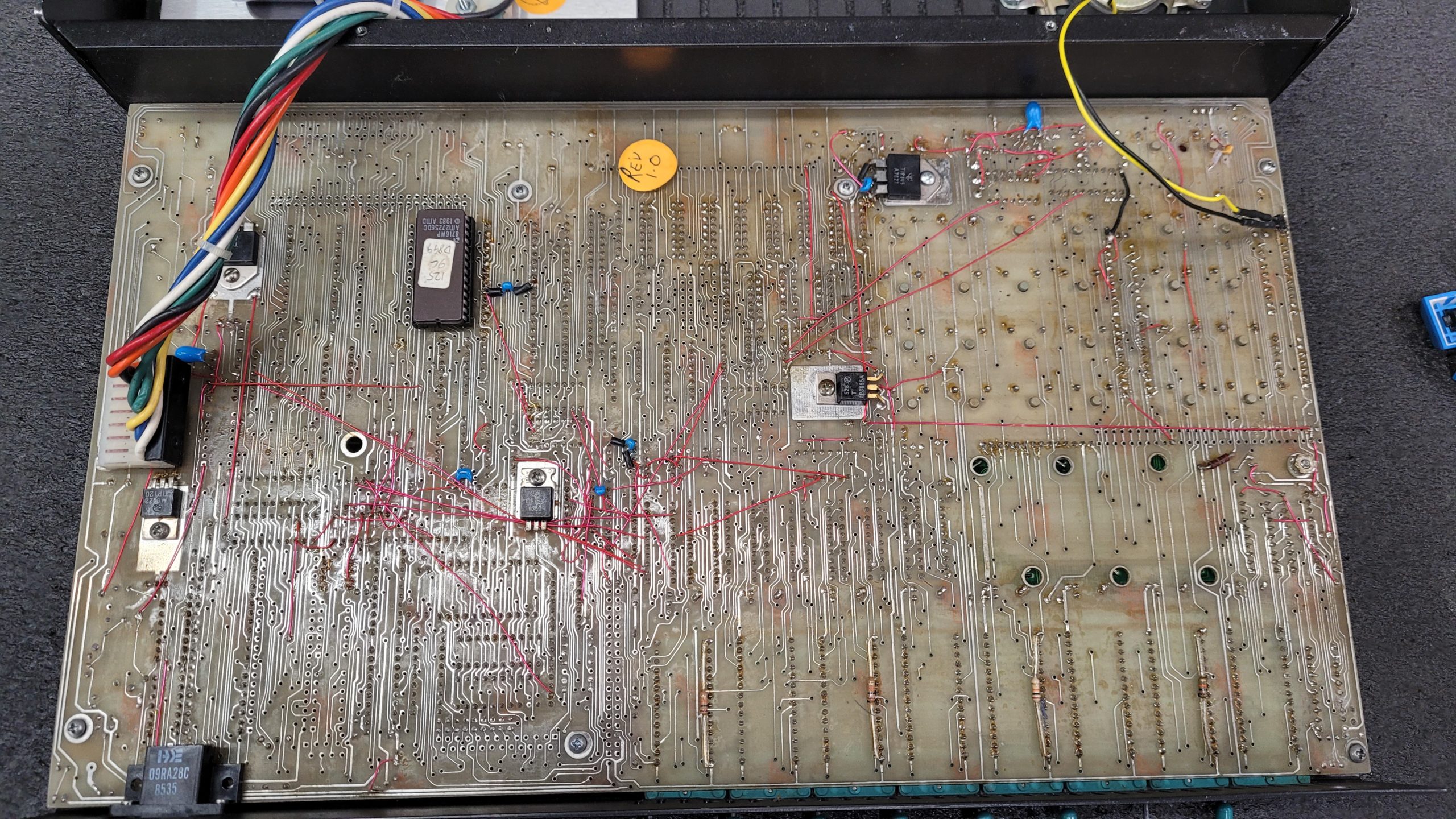

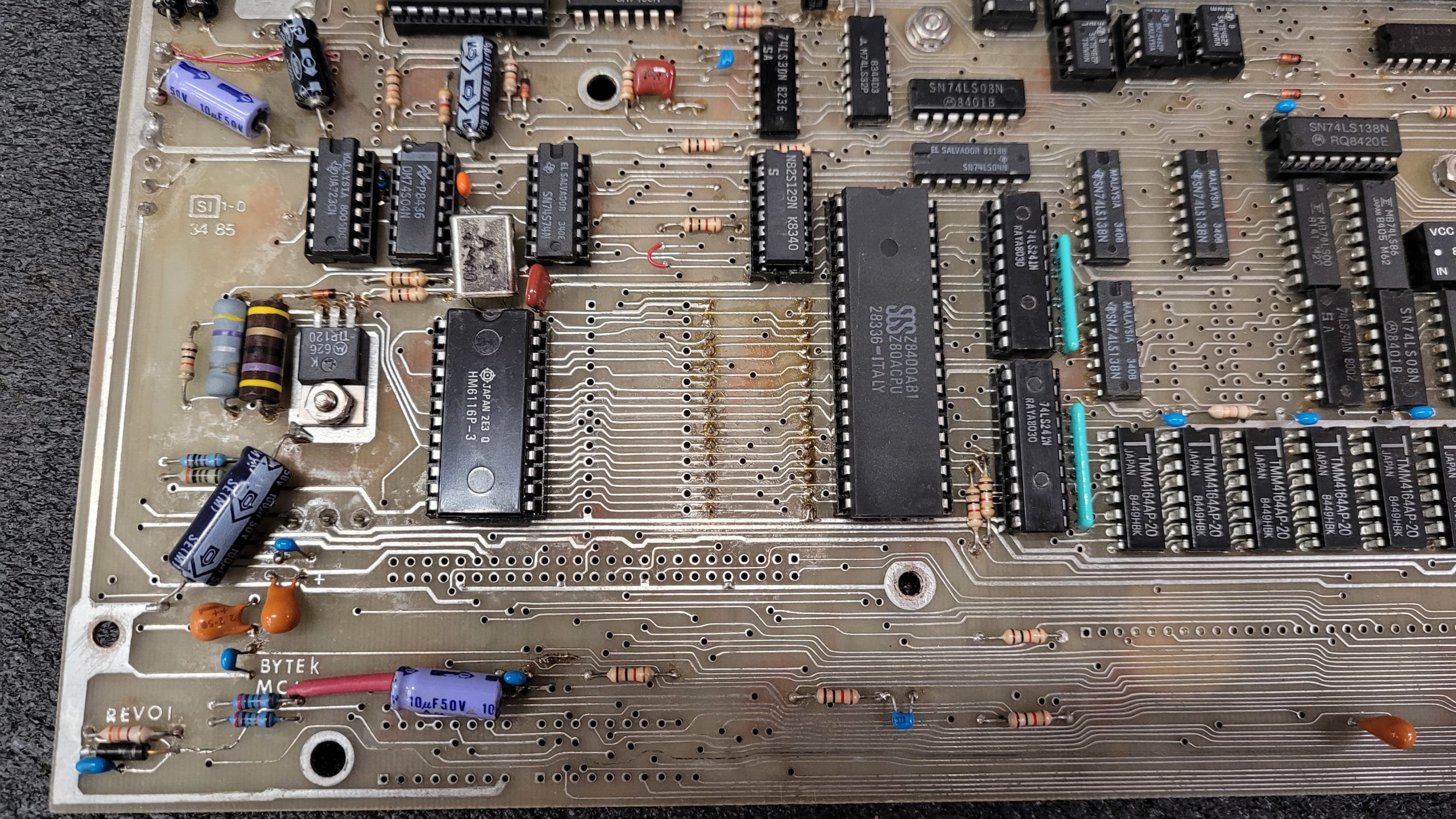

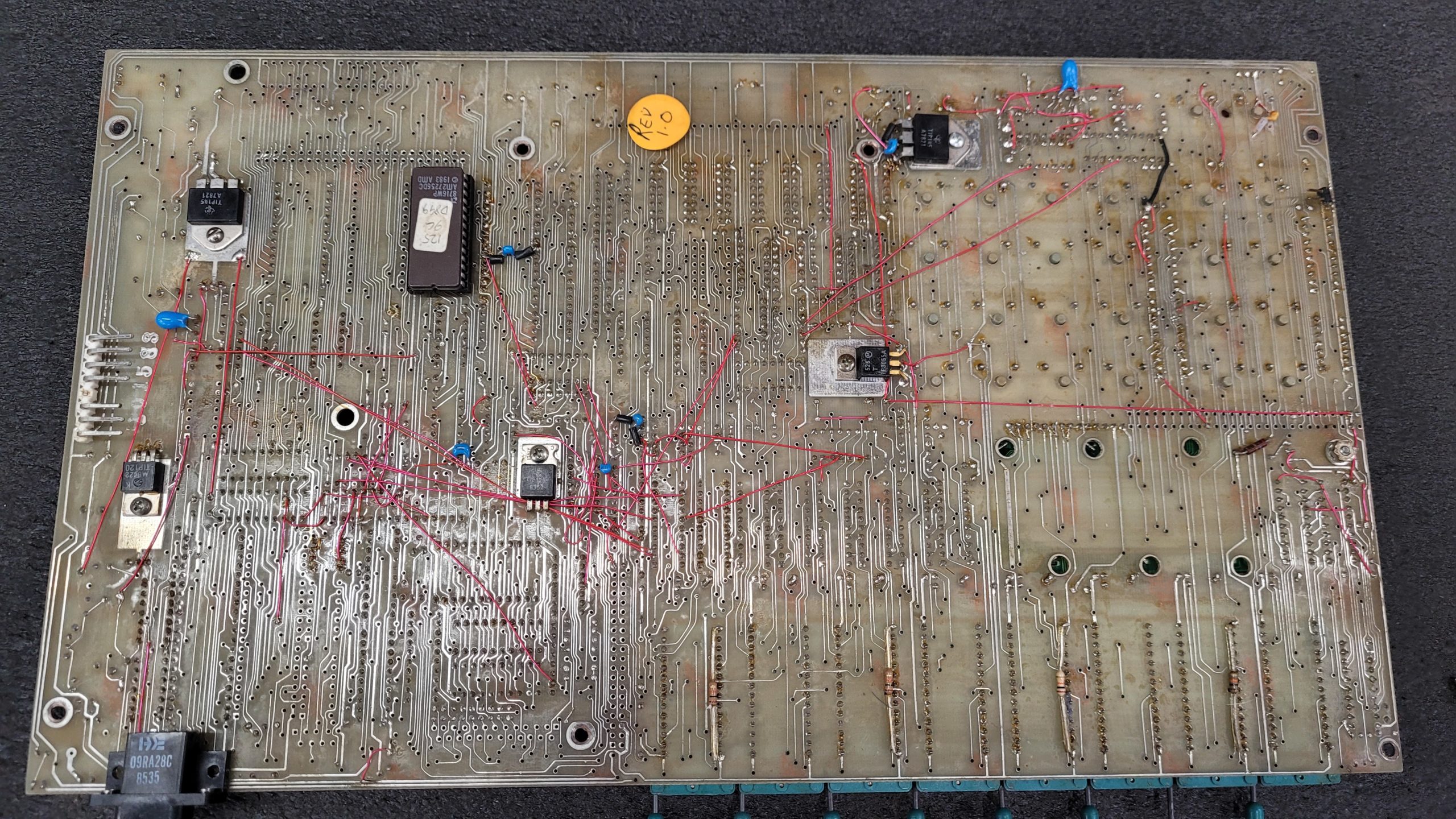

With the main board removed bottom and top bottom side and top side exposed.

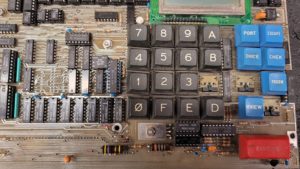

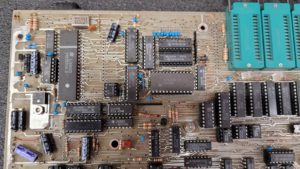

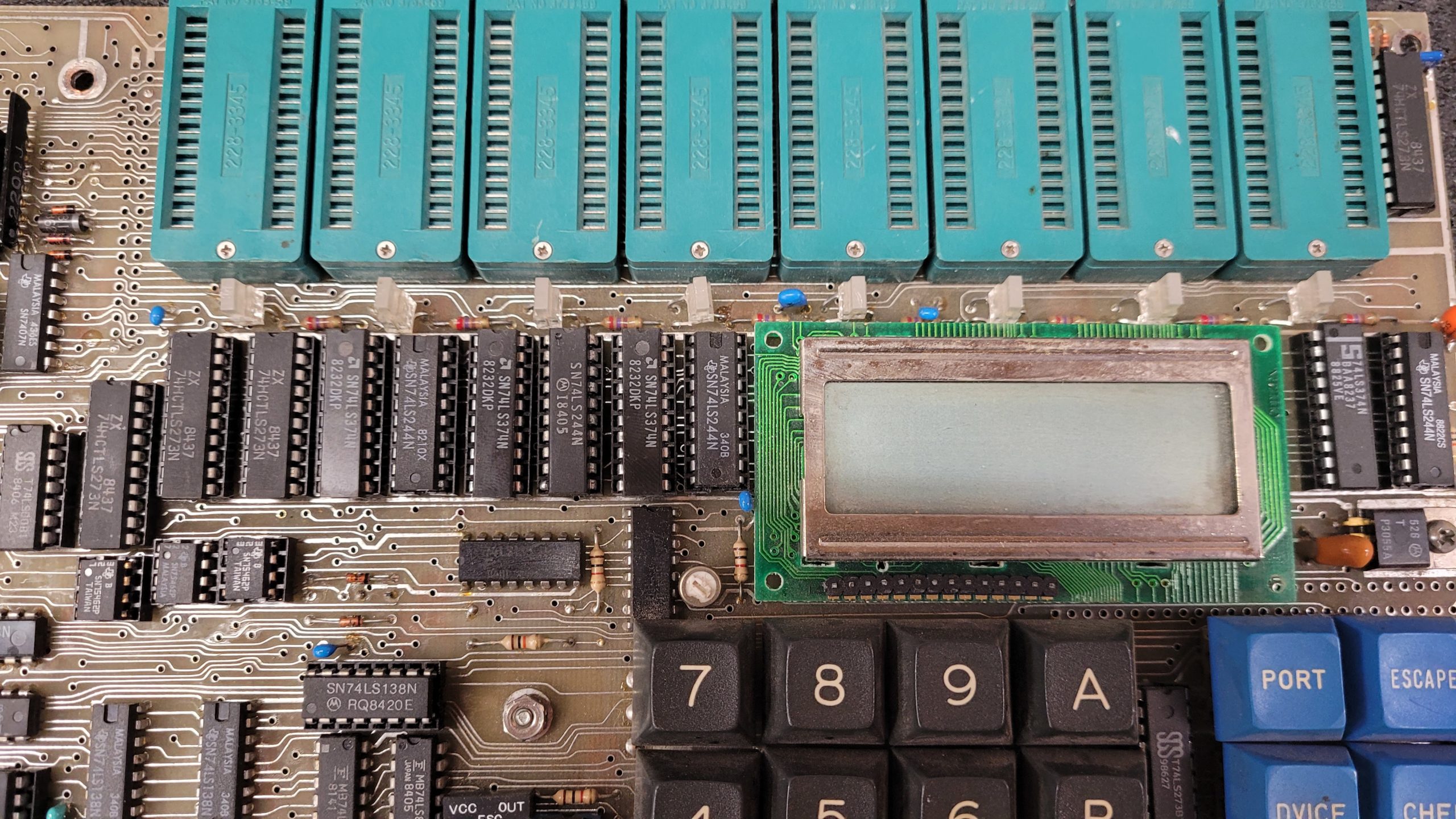

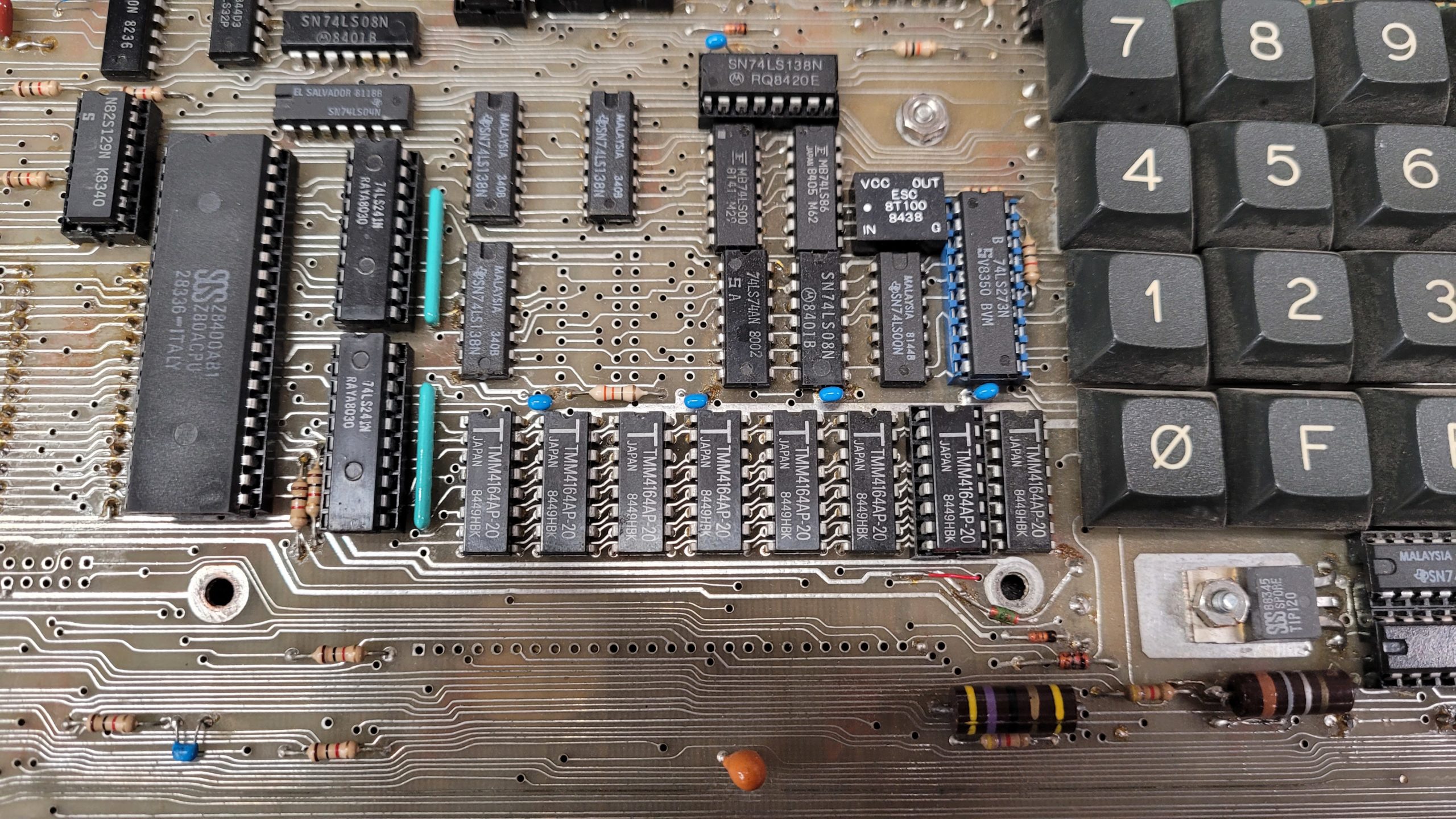

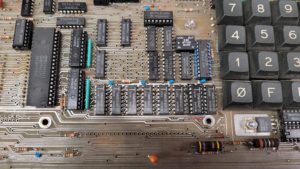

Top Side Some Close Up Photos
I backed up the poms never know if someone is restoring one of these and may need a backup!
Top side has 2 an Prom and a Brpom and the Bottom side has 1 Eprom (Download Bytek S125 Rom Set Here)

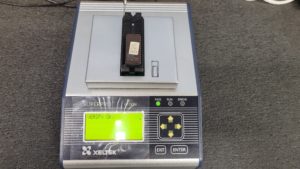

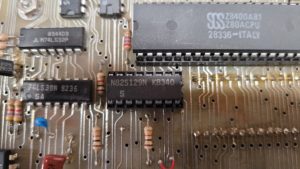

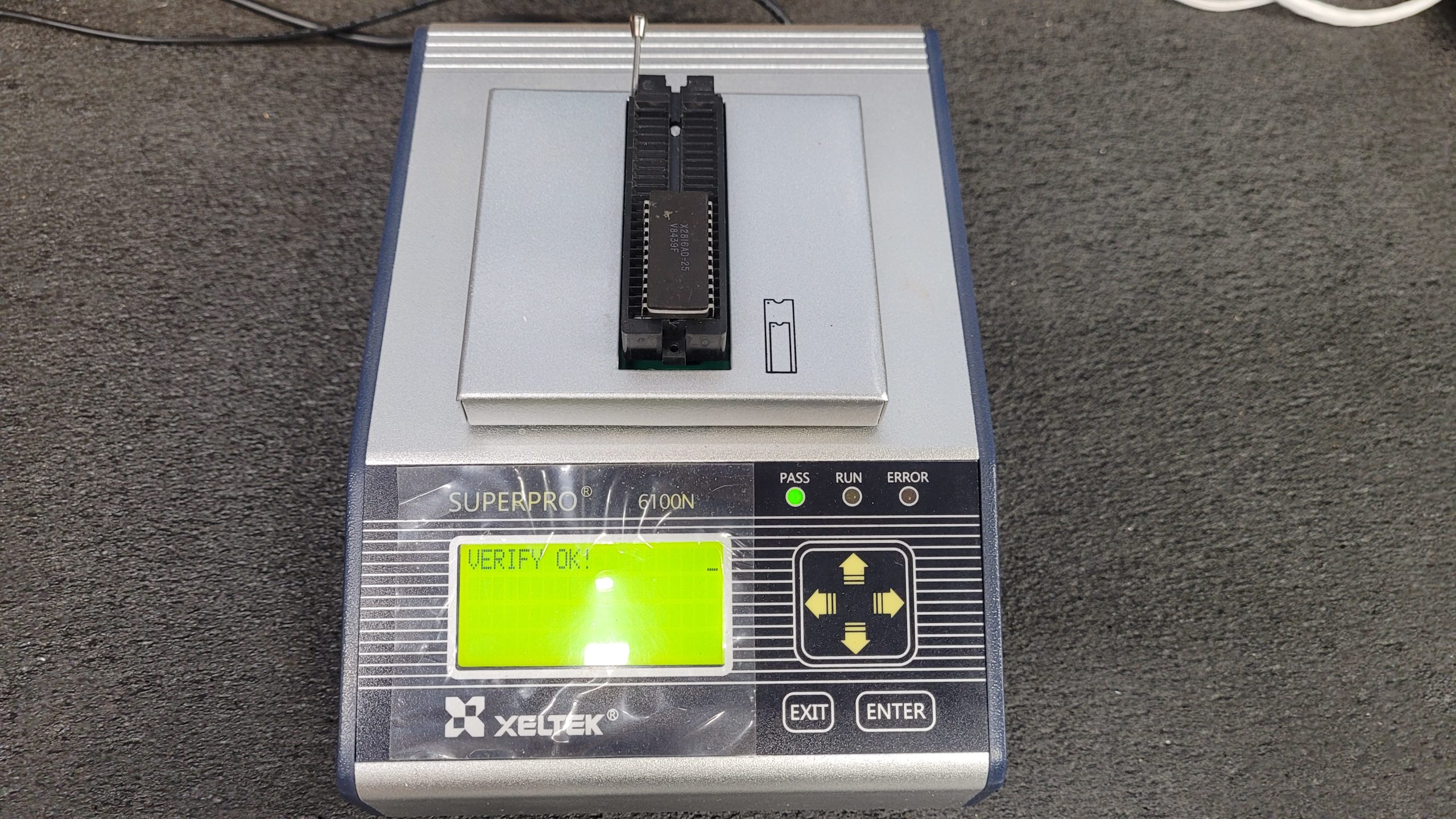

Bprom Top Side 82S129 Next to The Z80 Chip (First time using the Xeltek 6100N For 82S129)

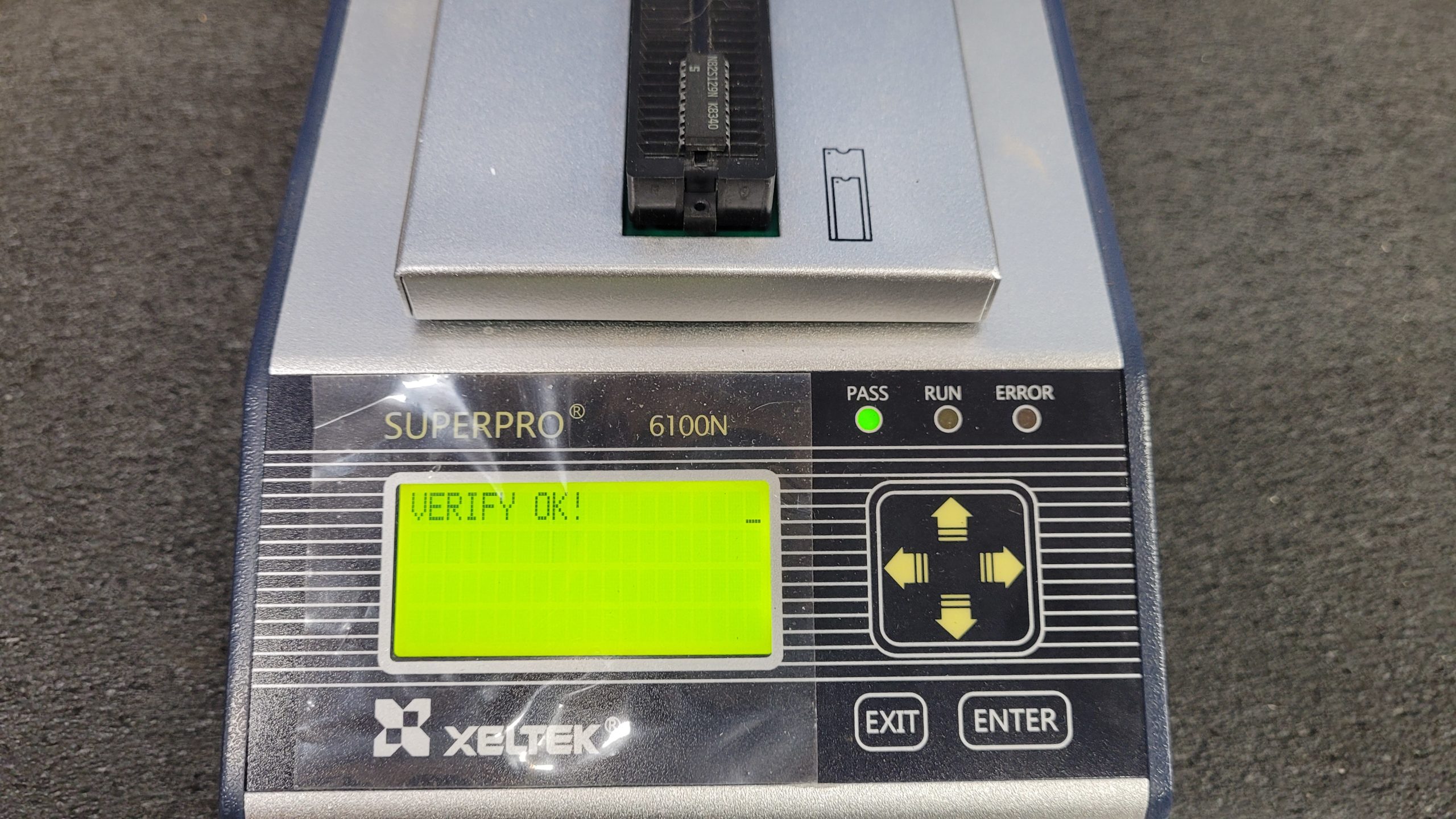

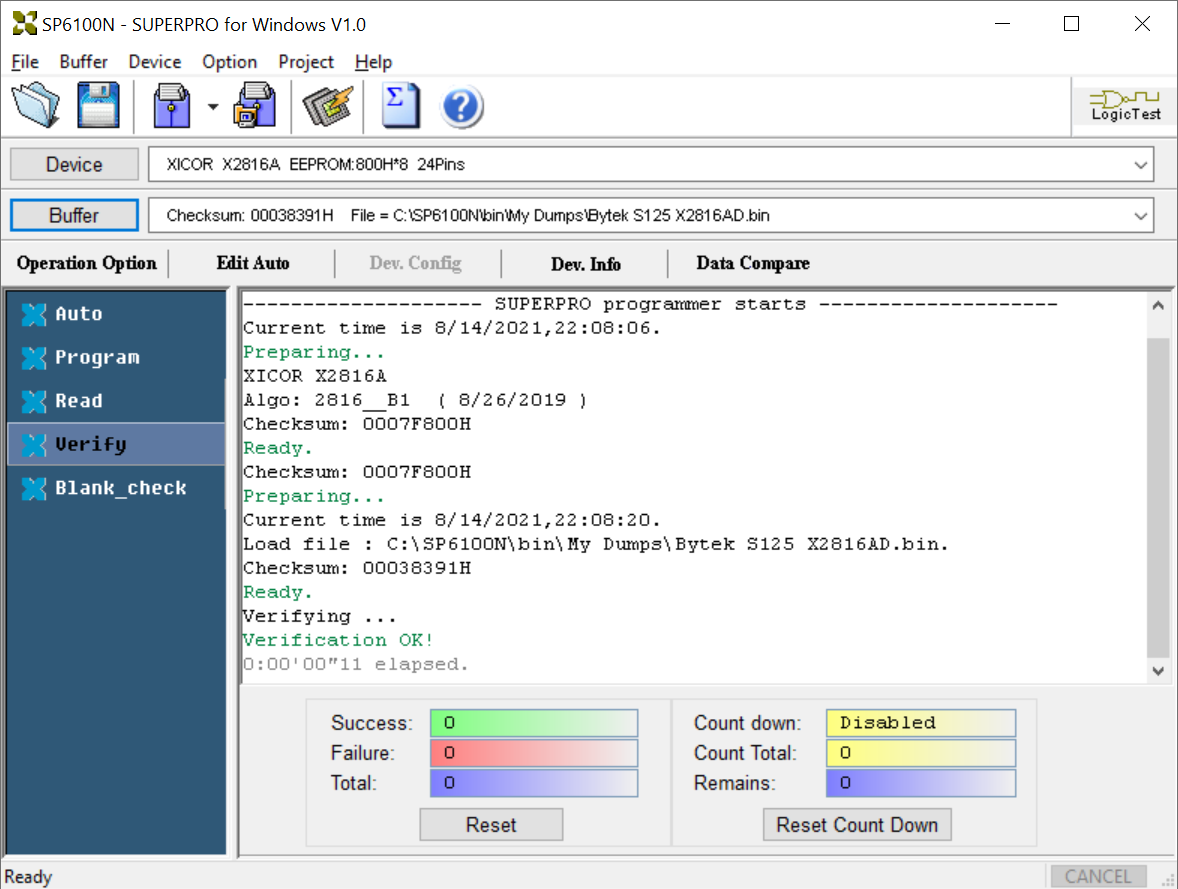

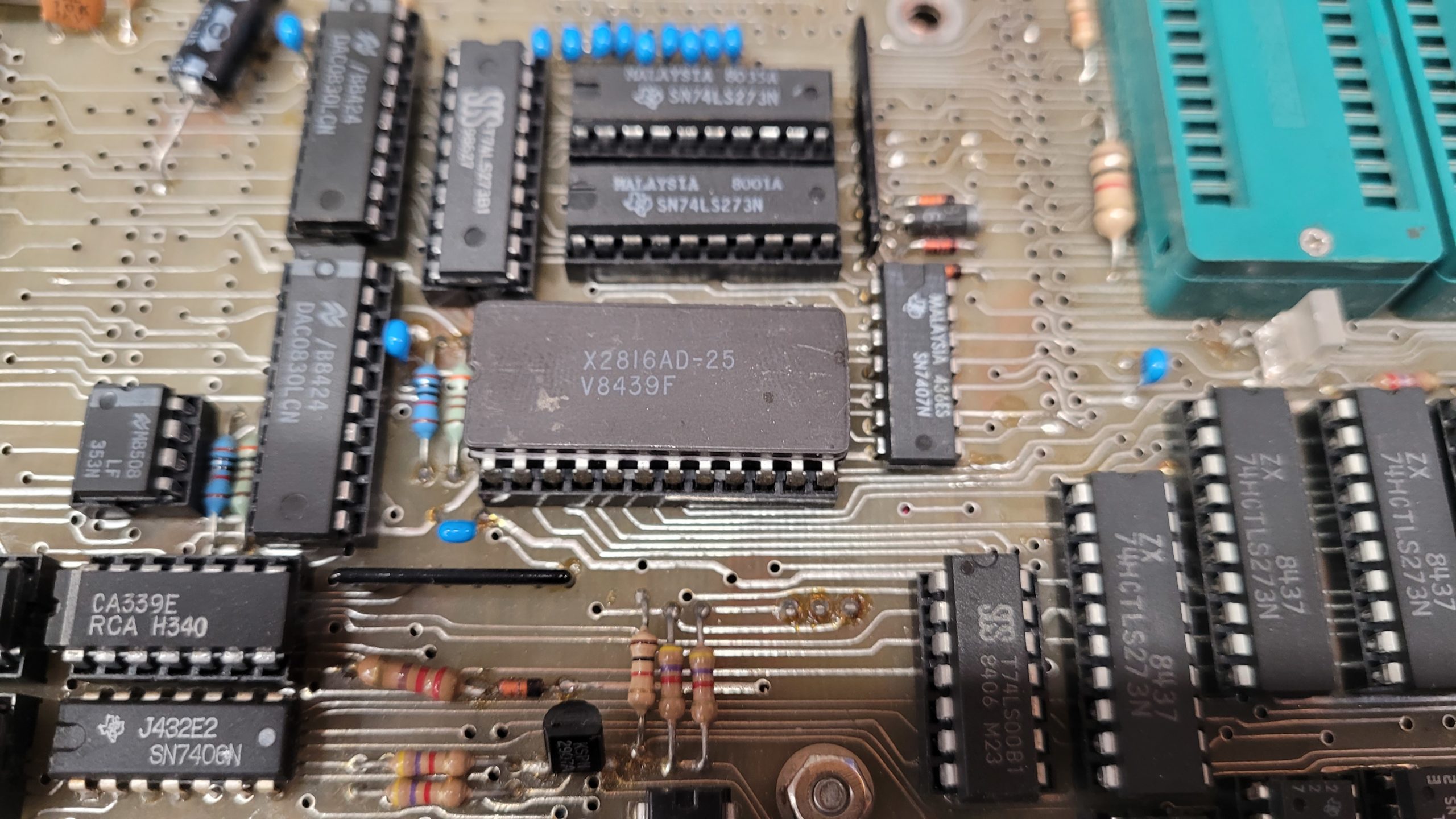

Prom Top Side X2816AD

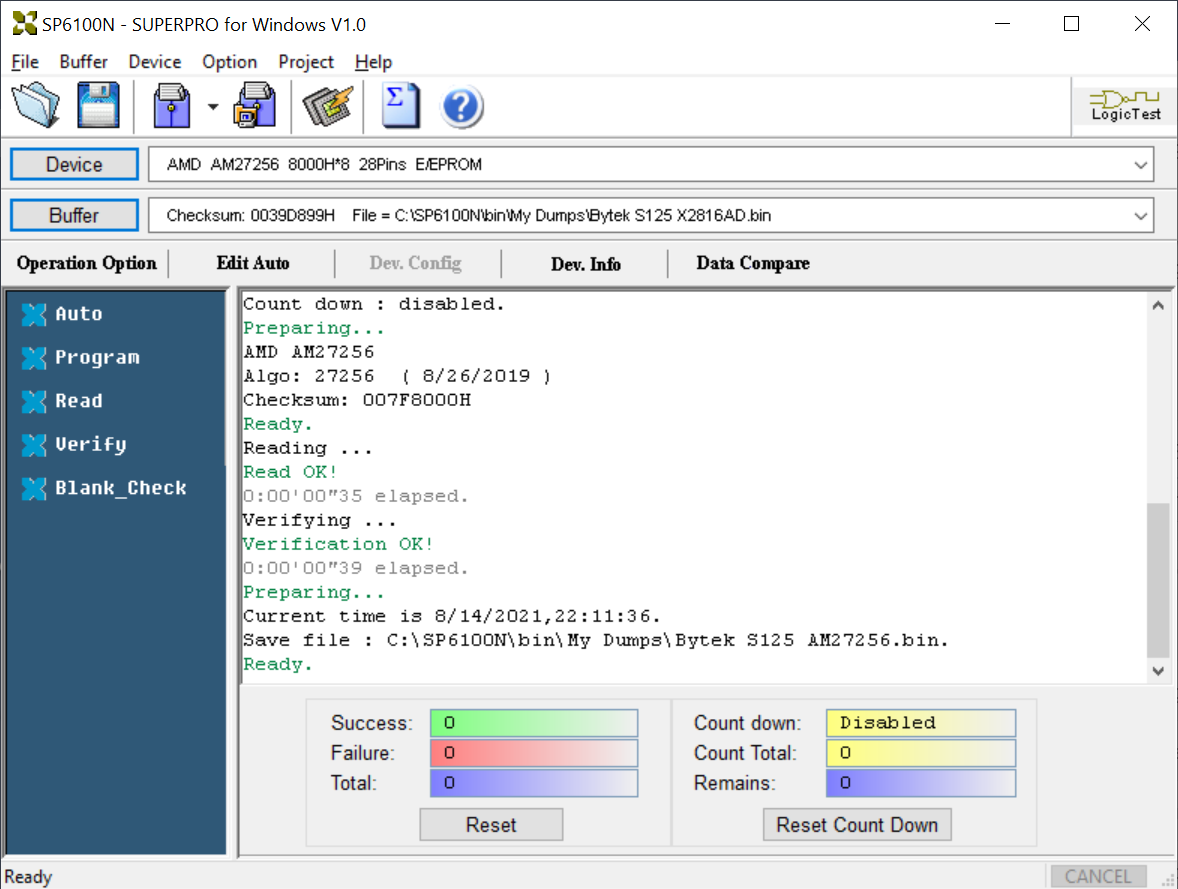

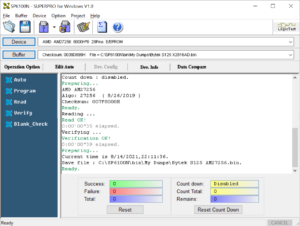

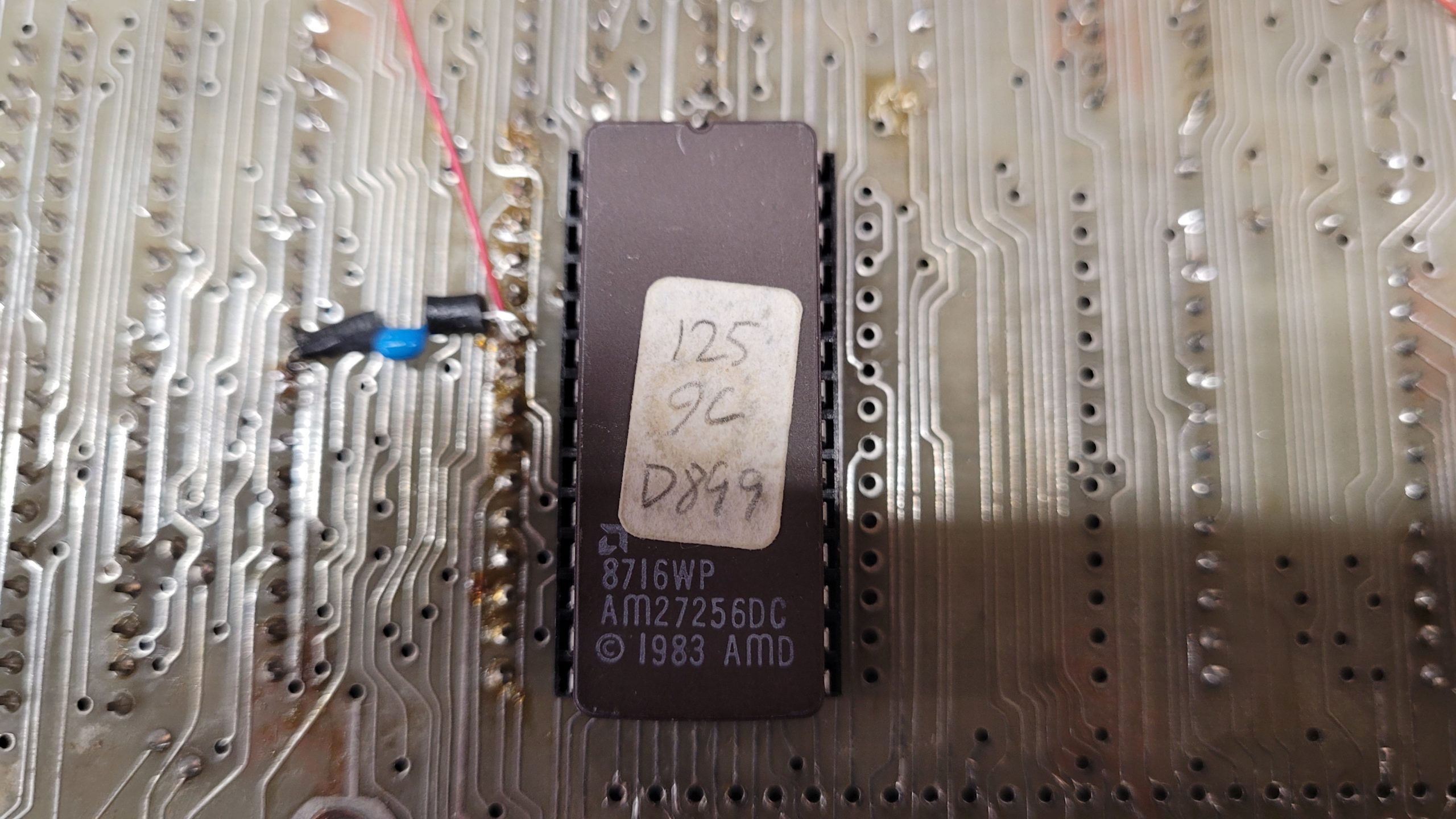

Eprom Bottom AM27256 (Marked 125 96 D899)
You Tube Video
Re Assemble! Place in E-waste Bin.
This will be on the next e-waste scrap run unless someone wants it? You may contact me and if you pay the shipping costs it is yours. Maybe you will have better luck finding the software for it or use it for parts for a broken one.
Thank you rsjsouza on the eevblog.com forums he is the new owner of this vintage hardware.
His Youtube Video it is in Portuguese
