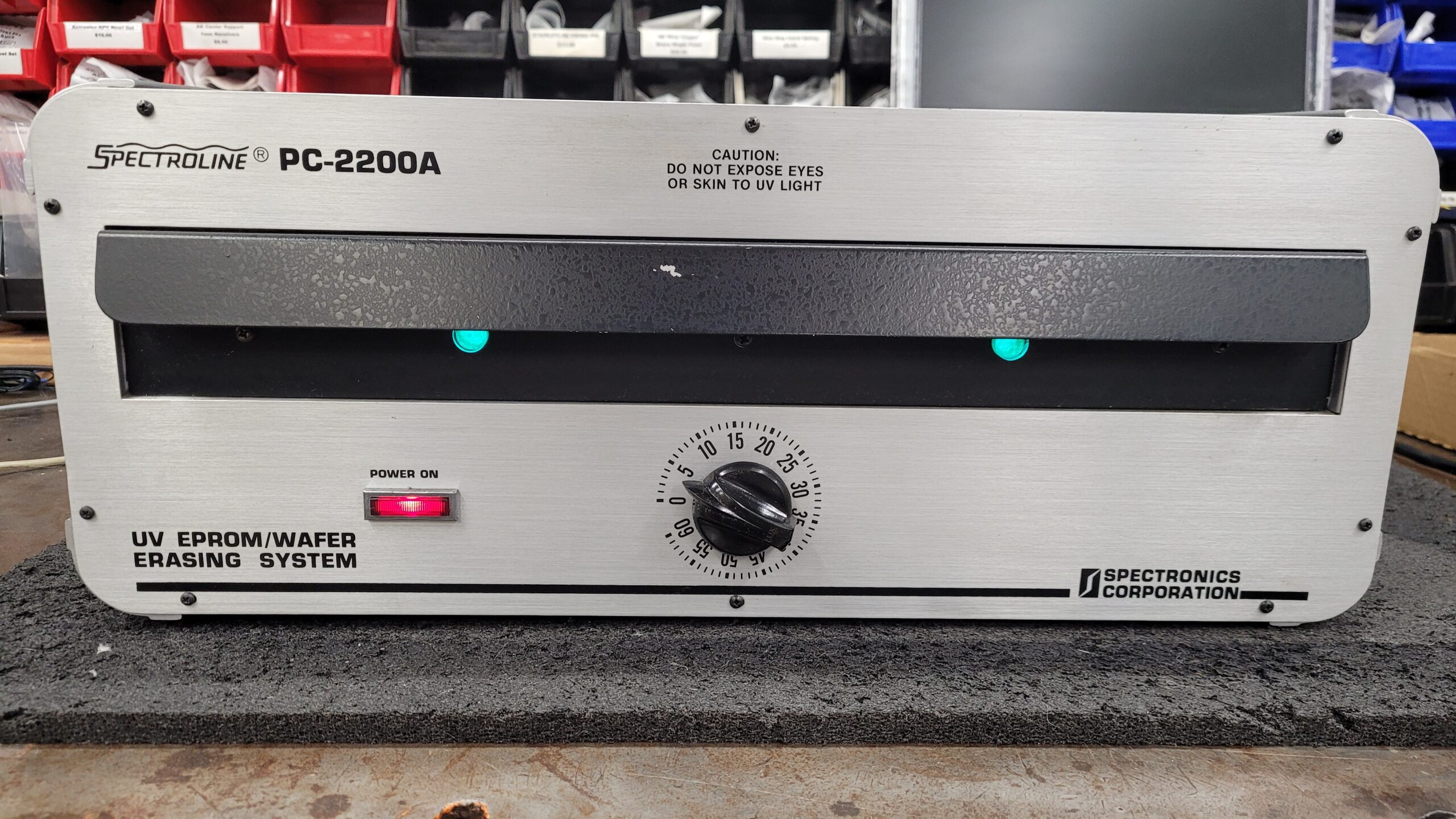

Spectronics Spectroline PC-2200A UV 254NM Eprom Eraser (Data Sheet) (Spectroline 1100A 2200A 3300A User Manual)

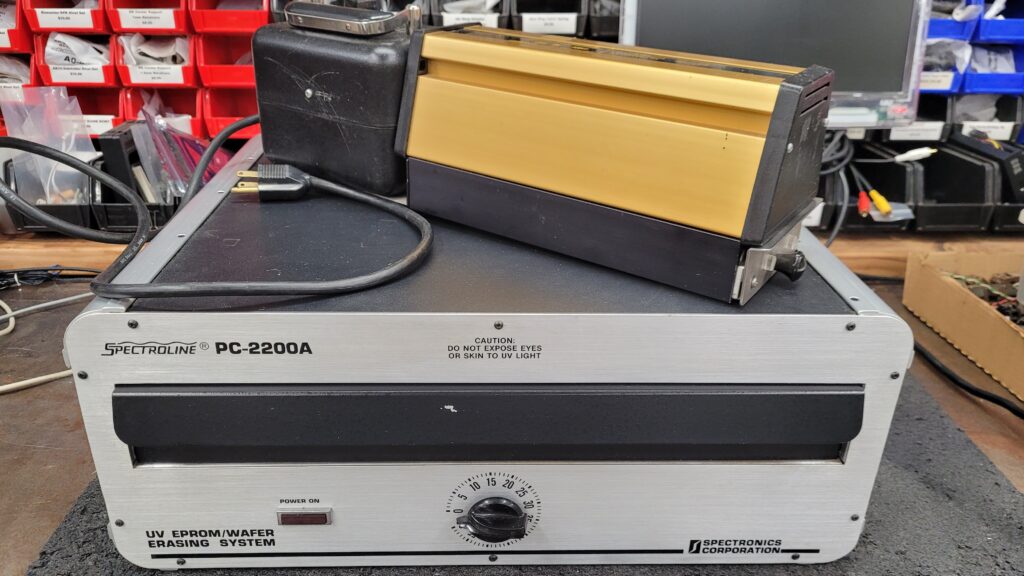

Compare to My Spectroline PR-320T

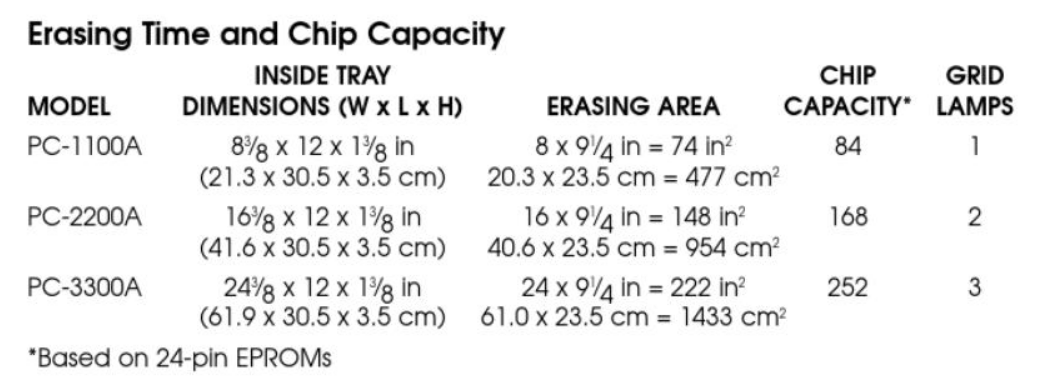

The Chip Trays Inside Dimensions are about 12X16, The only item missing is the adjustable platform part Number I-2200 with the High Density Anti Static Foam, Witch is usually glued to it and usually deteriorated to dust on these.

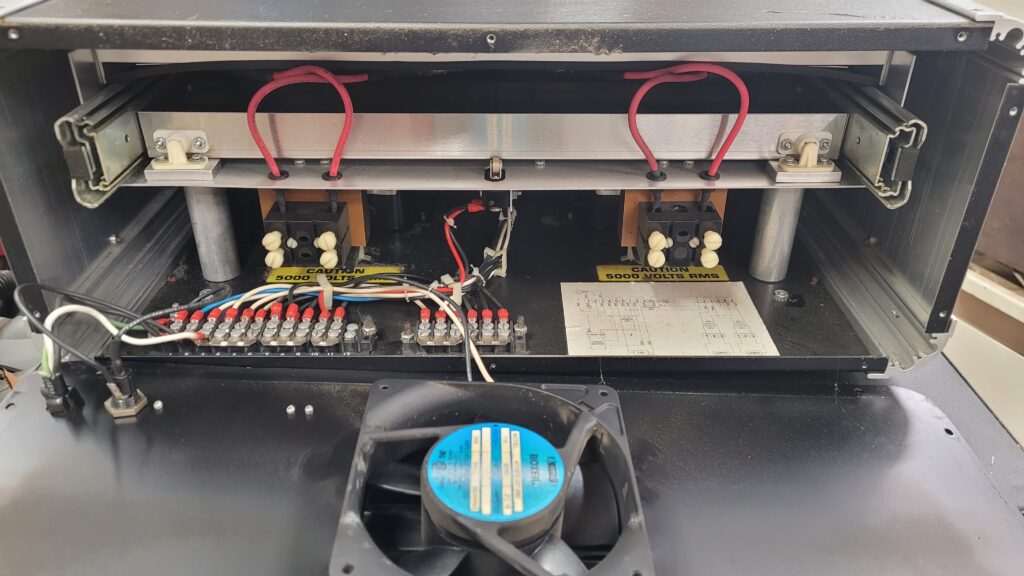

I Removed the Back Cover this time will not expose my self to UV and Burn My Eyeballs.. this time!

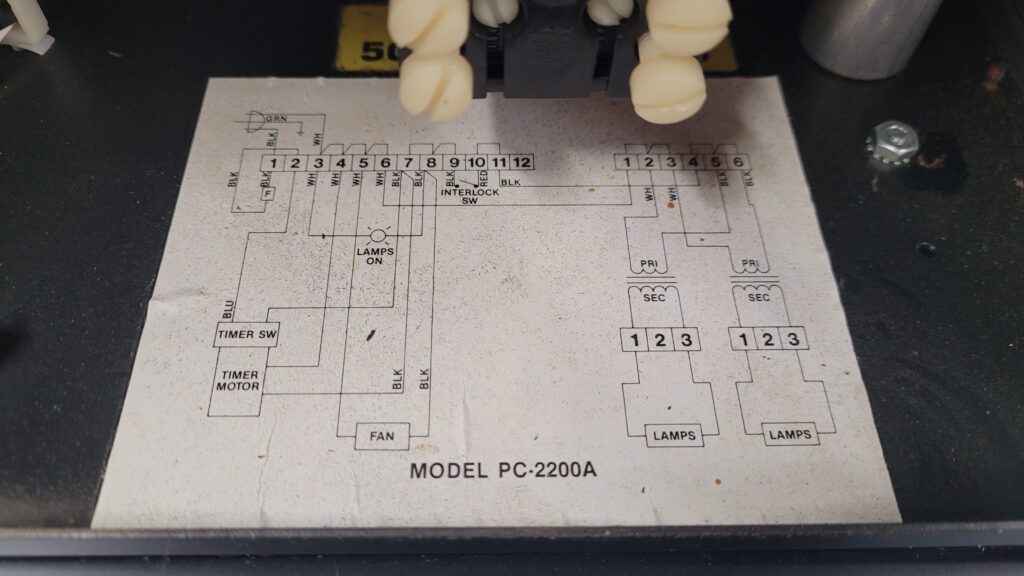

Here is the Wiring Diagram. A Litte bit of dust on the inside.

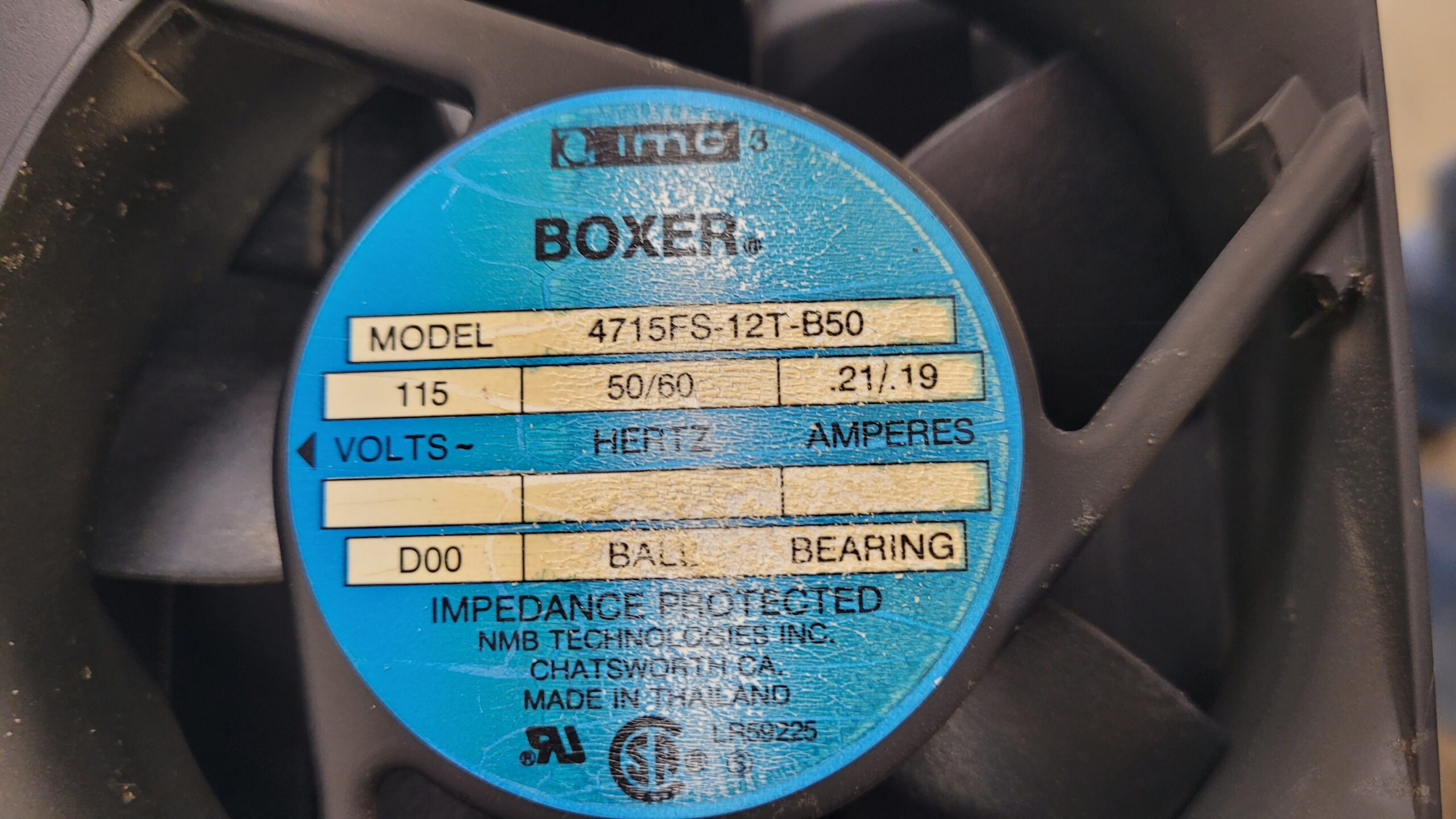

The 120MM 120V Fan(I will prob Be changing this to a modern quiet AC Infinity)

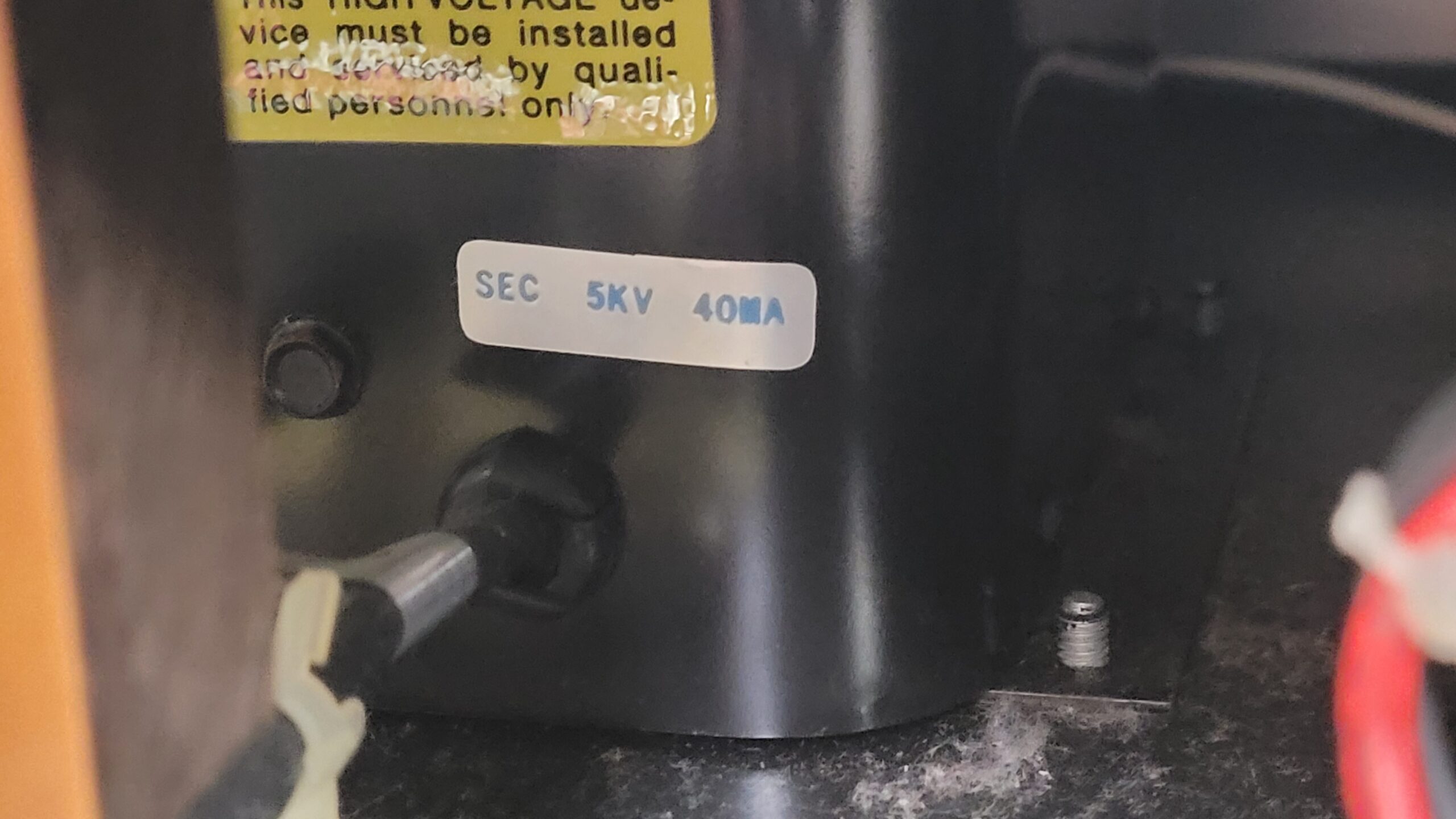

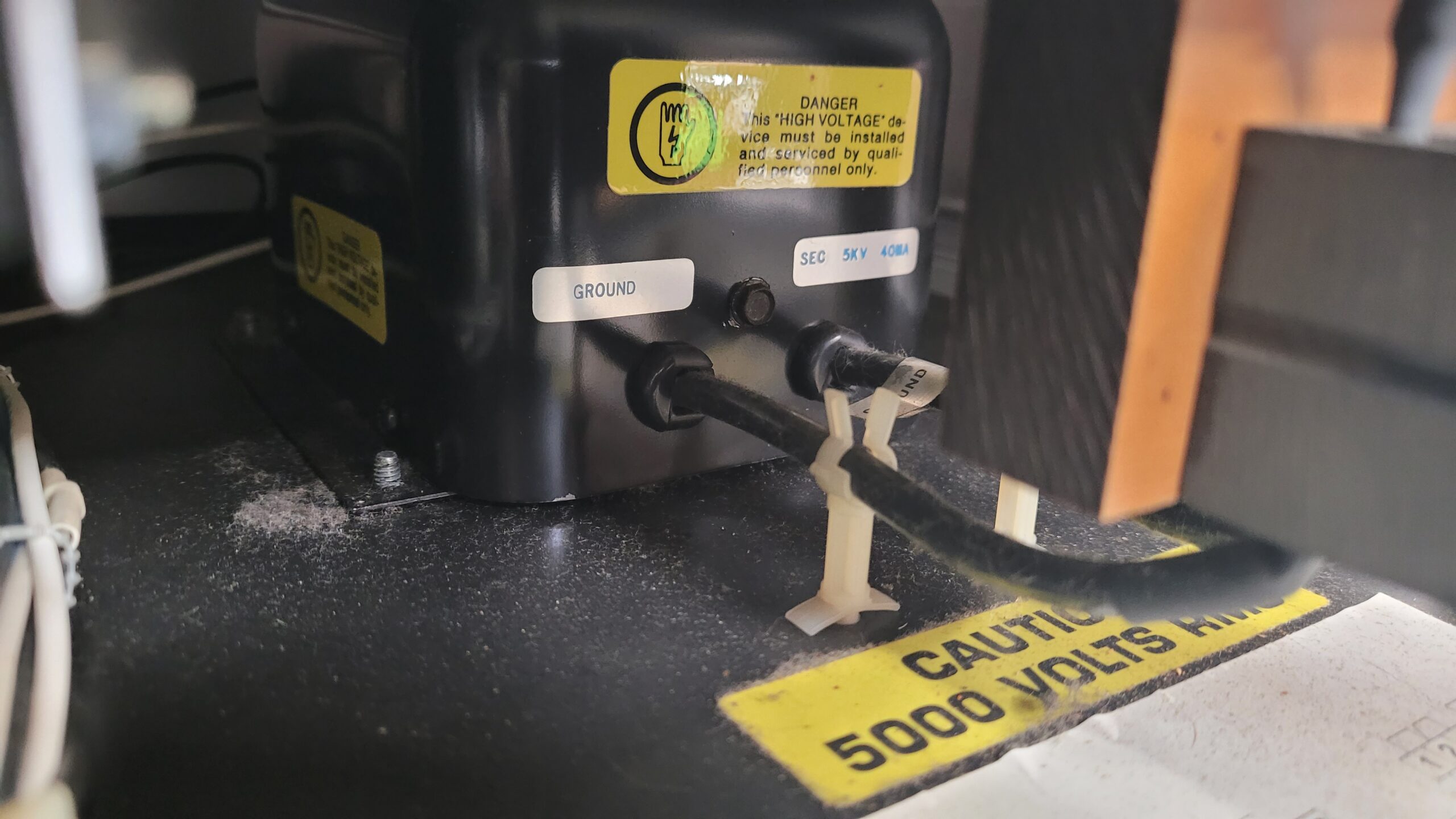

There are 2 Transformers at 5,000V (5KV) Each.

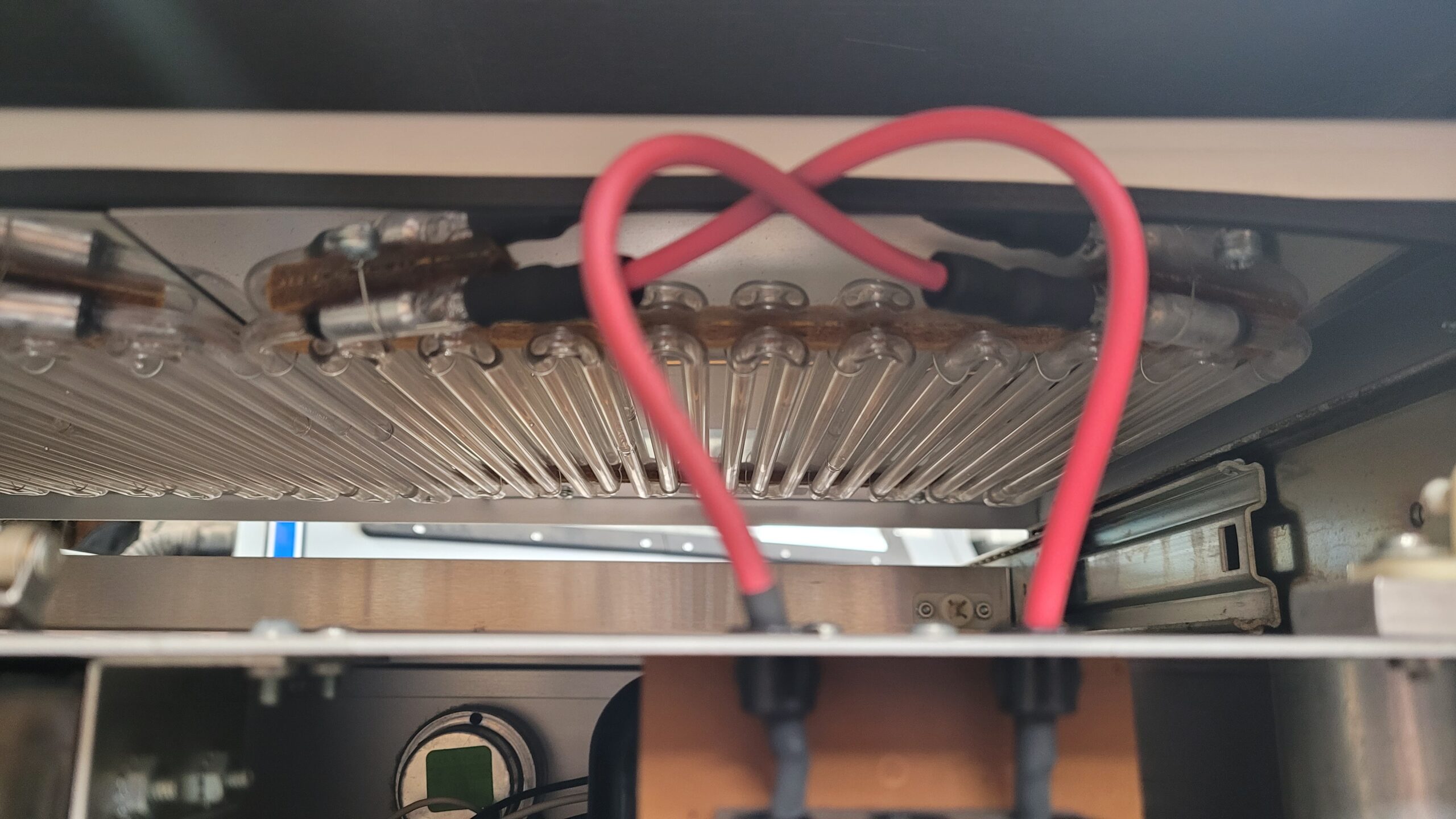

The Two Quarts 250NM Mercury Vapor UV 8″ X 8″ Grid Lamps Spectronics Part NUmber G750NO2. These are very expensive to replace about 1K Each if they go out the device is scrap. I am Lucky that this unit had new lamps installed before it was shelved. The lamps have a life of about 10,000 Hours so 5-10 Min Each cycle will last many decades unless physically damaged. Anyways, When erasing eproms you want a Pure 254NM UV You don’t want the additional 185NM that degrades the silicon die. The Quarts I believe only lets the 254NM UV Out. That’s why these lamps are so expensive and very efficient at erasing the chips also.
Grid Lamp Replacement Instructions.

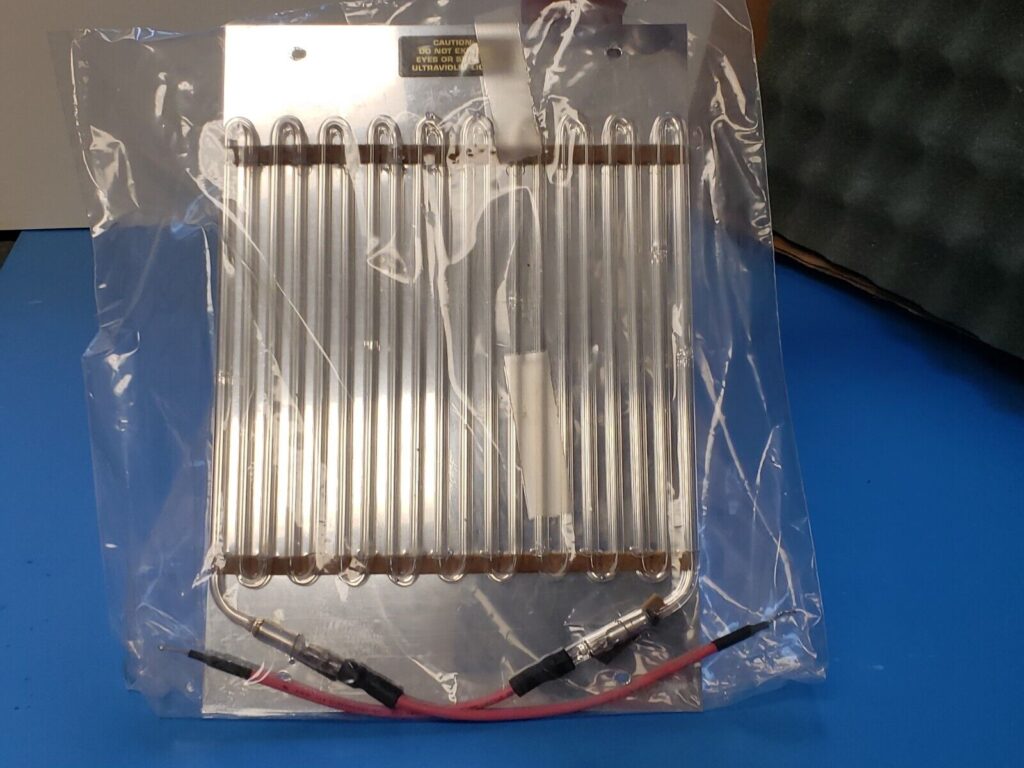

Photo of One Found On Ebay.

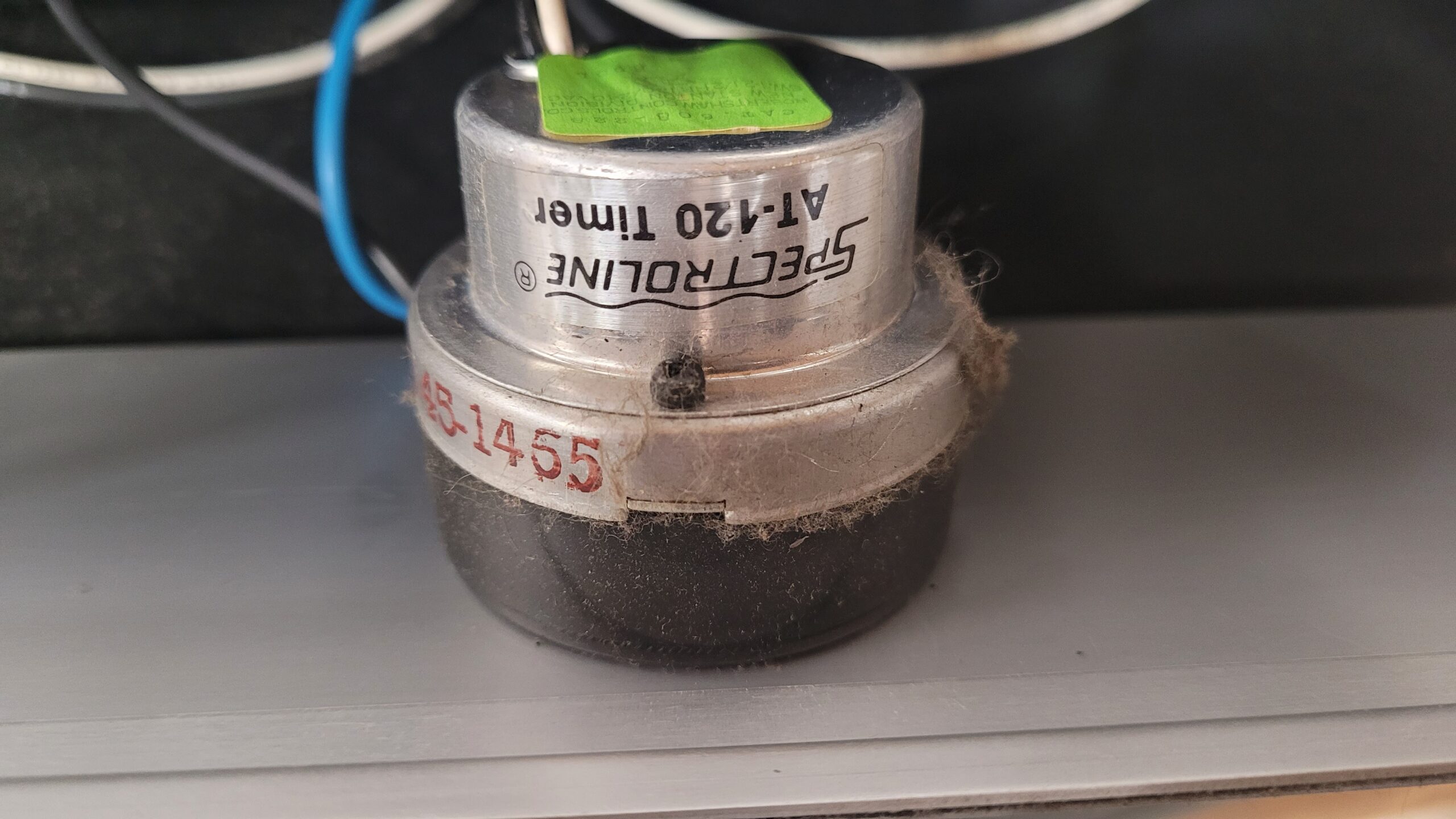

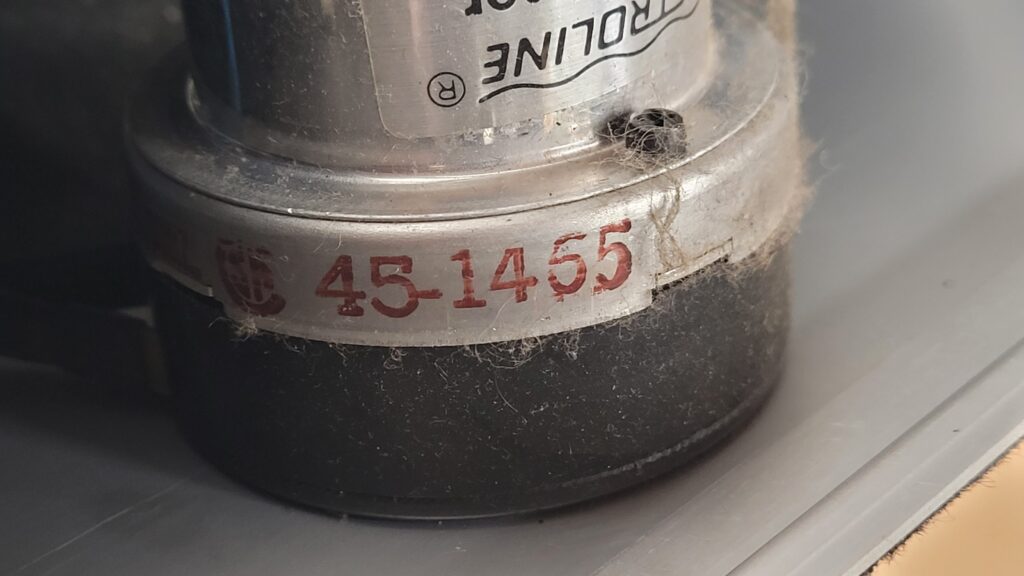

I removed the Front Panel, You need to remove the tray door just 3 screws. to access the Spectroliner AT-120 Timer which is a Robertshaw Controls Co. 45-1465 2350 Series. There may bee room to install a digital timer and SSR but the manual timers are reliable. Only issue I seen was the tra door felt/wool fiber seal could be replaced.
Last Updated on March 24, 2025 by Steven Rhine
