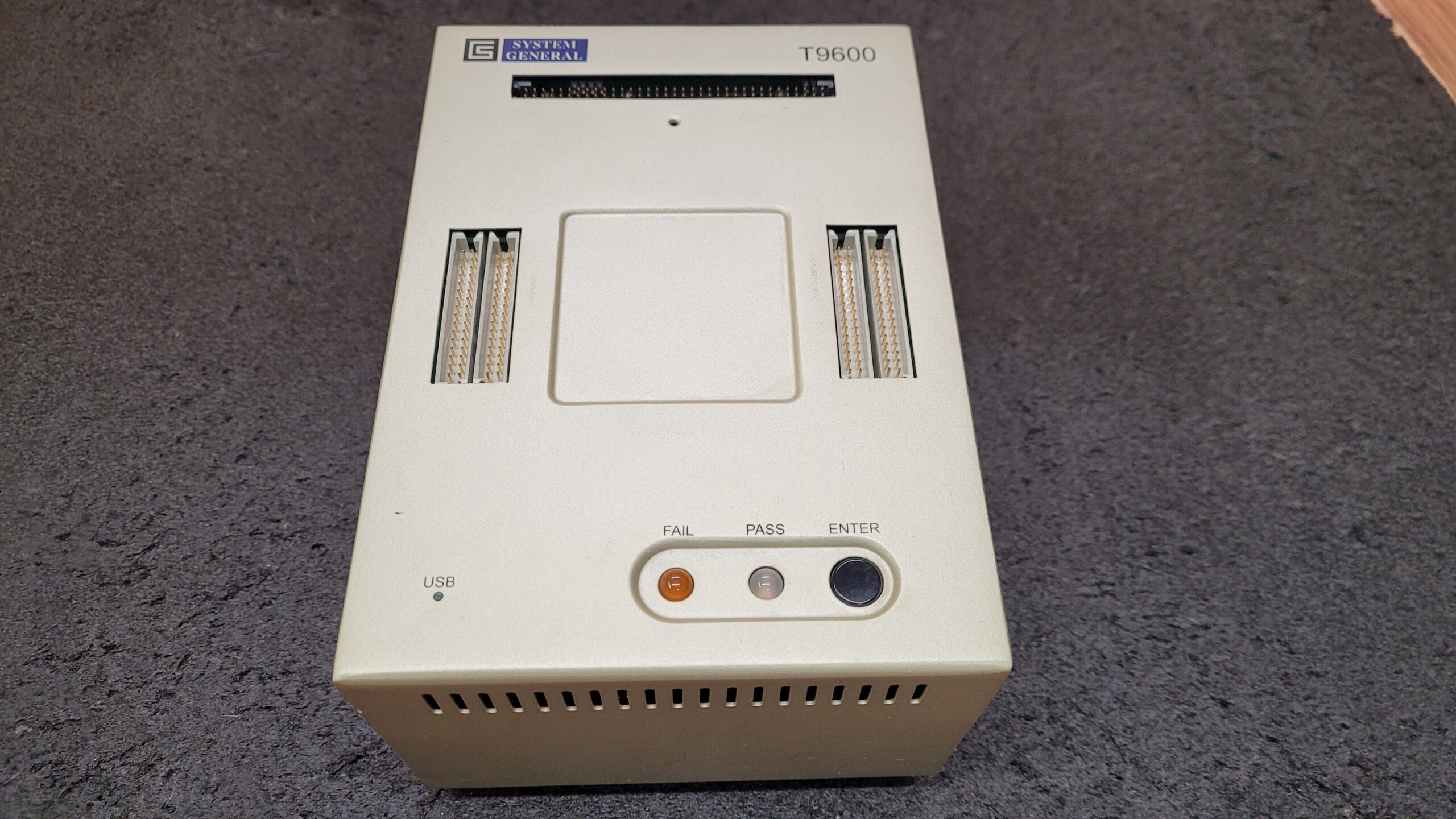

SYSTEM GENERAL T9600 Universal Programmer
System General T9600 Manual Programmer Info

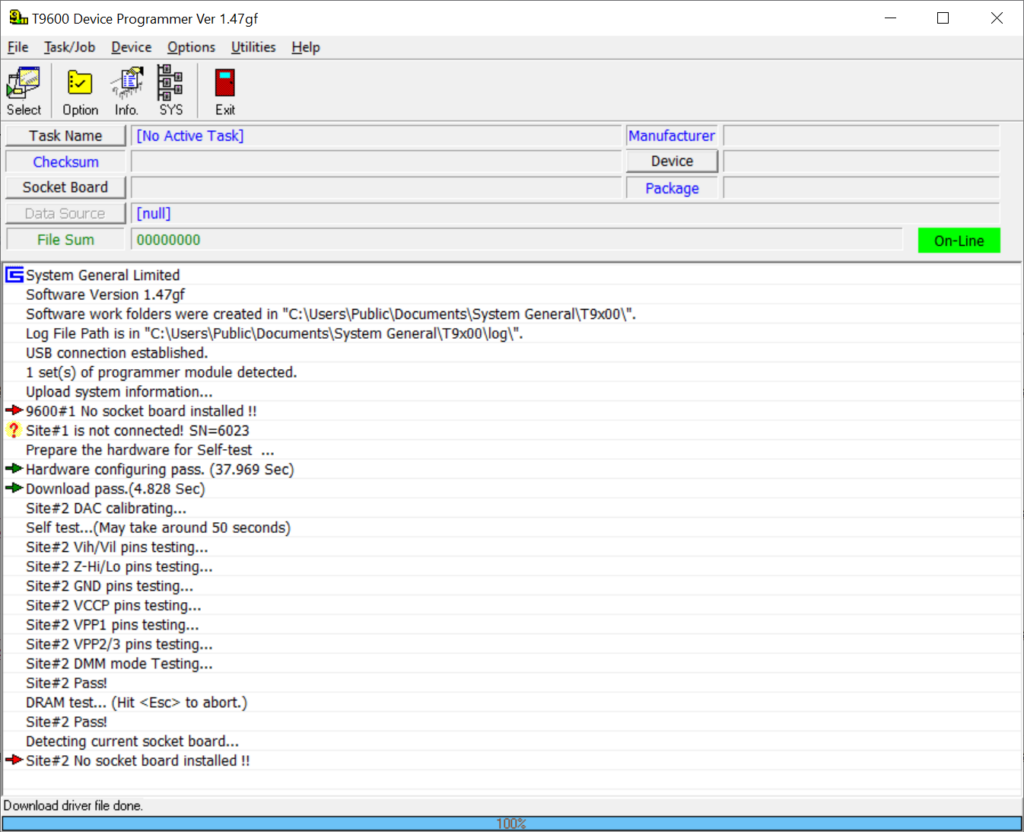

Unit Passes All System and Dram Tests.. The Boot time on these are really long You can skip the Dram Test to Save a Few Min. I will Do a Video On the time it takes.

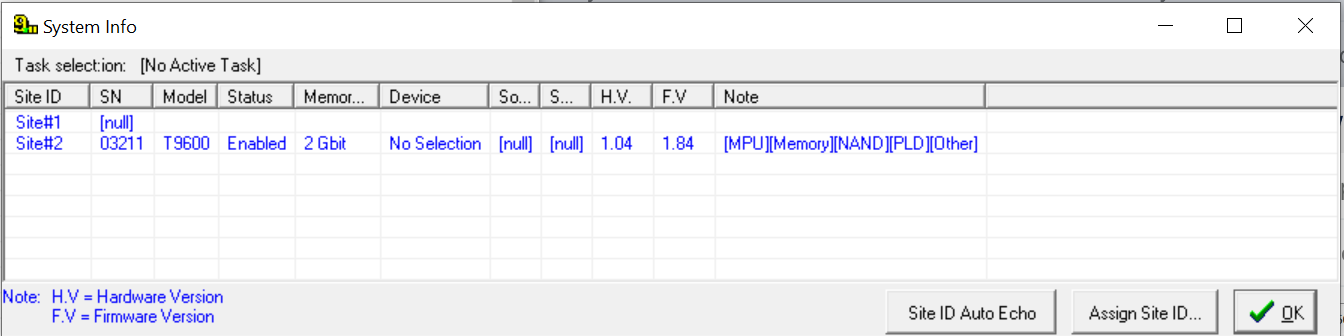

System Info, 2GBit Memory, Hardware Version 1.04, Firmware Version 1.84
As of this Posting, The latest S/W 1.47R has been released on February 26th, 2025
Download It Here Sign Up for an account on the Site Manufacture Site Above for their free updates.
Unboxing Video
Teardown Video
Updating Check Back In a Few Day.

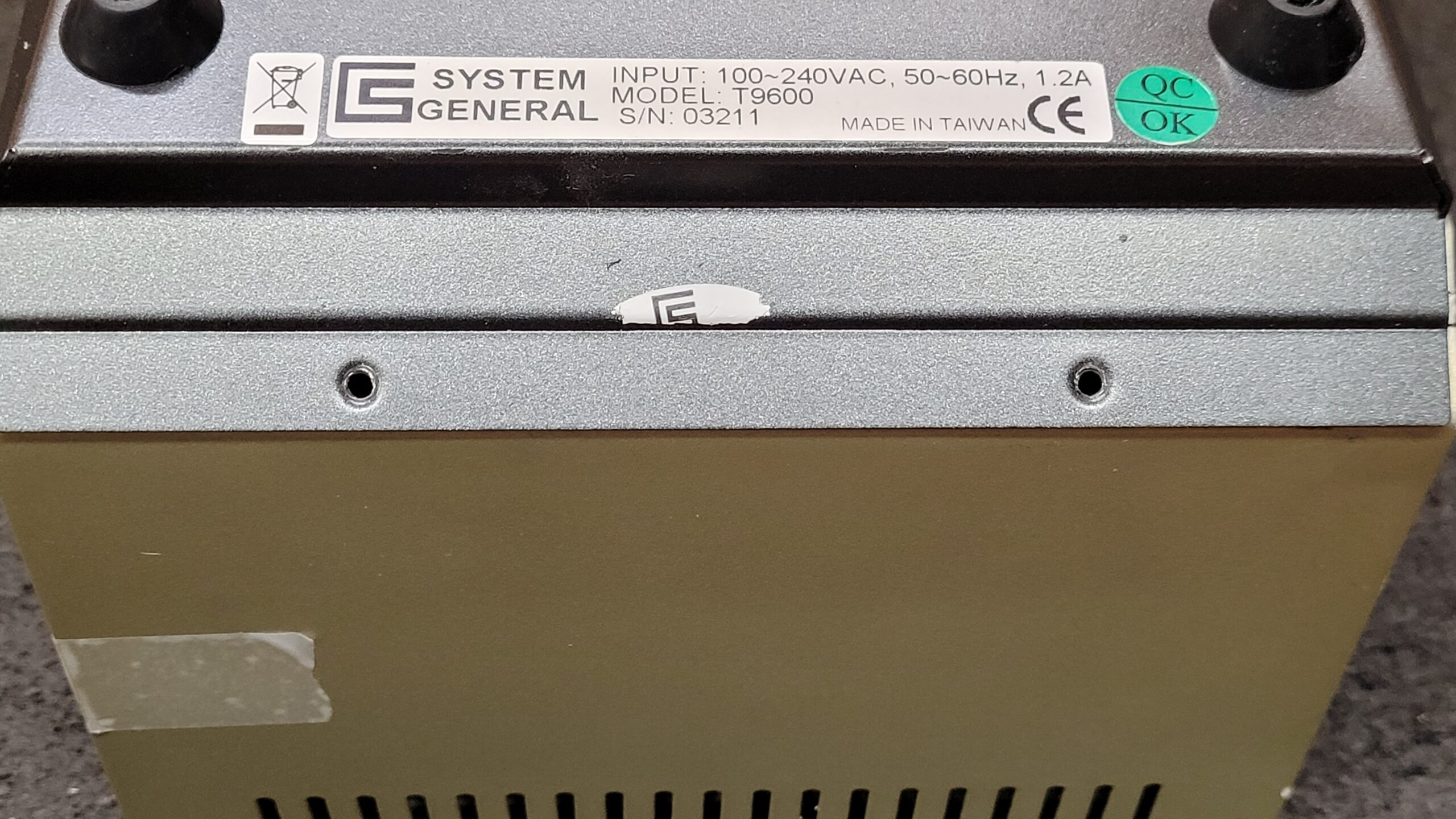

Remove Bottom Cover, 4 Screws 2 In the Front 2 On The Back No Need to Remove the Other Back Screws.

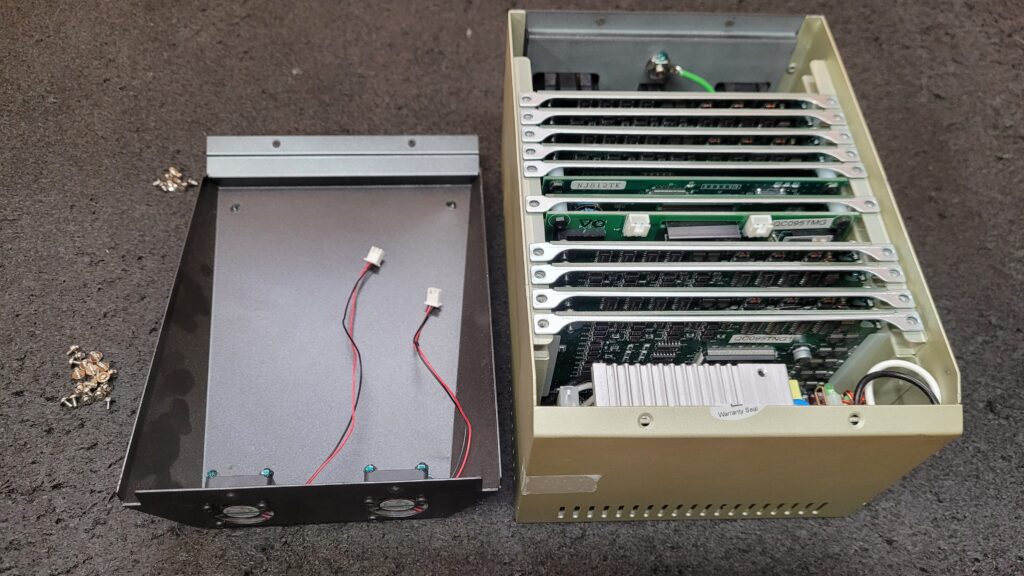

Remove Bottom Cover Plate be Mindful of the Fan Connectors. (I Already have the Screws for the Cards Removed.

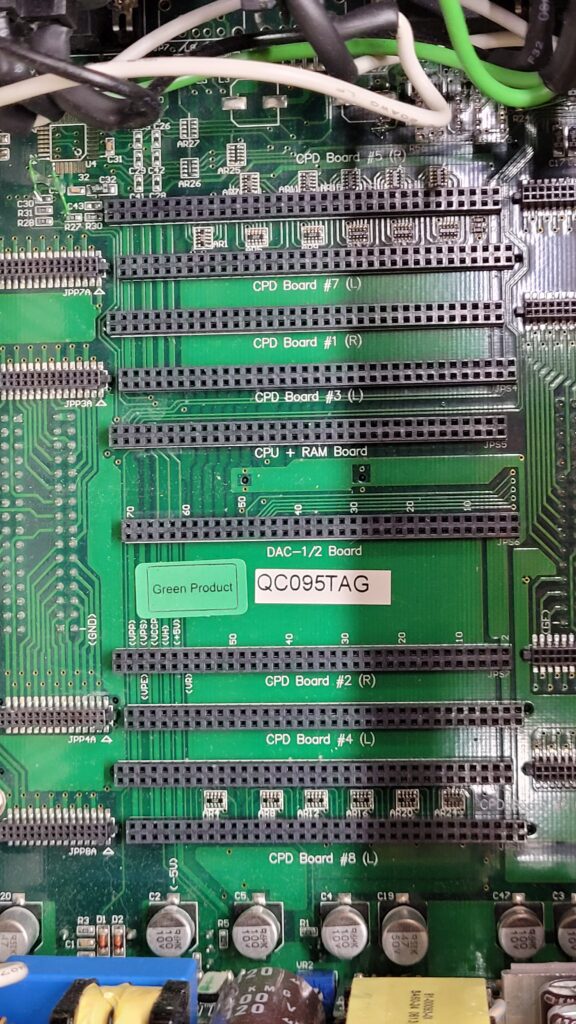

Broad Stack Up Form Front to Back (Soon)

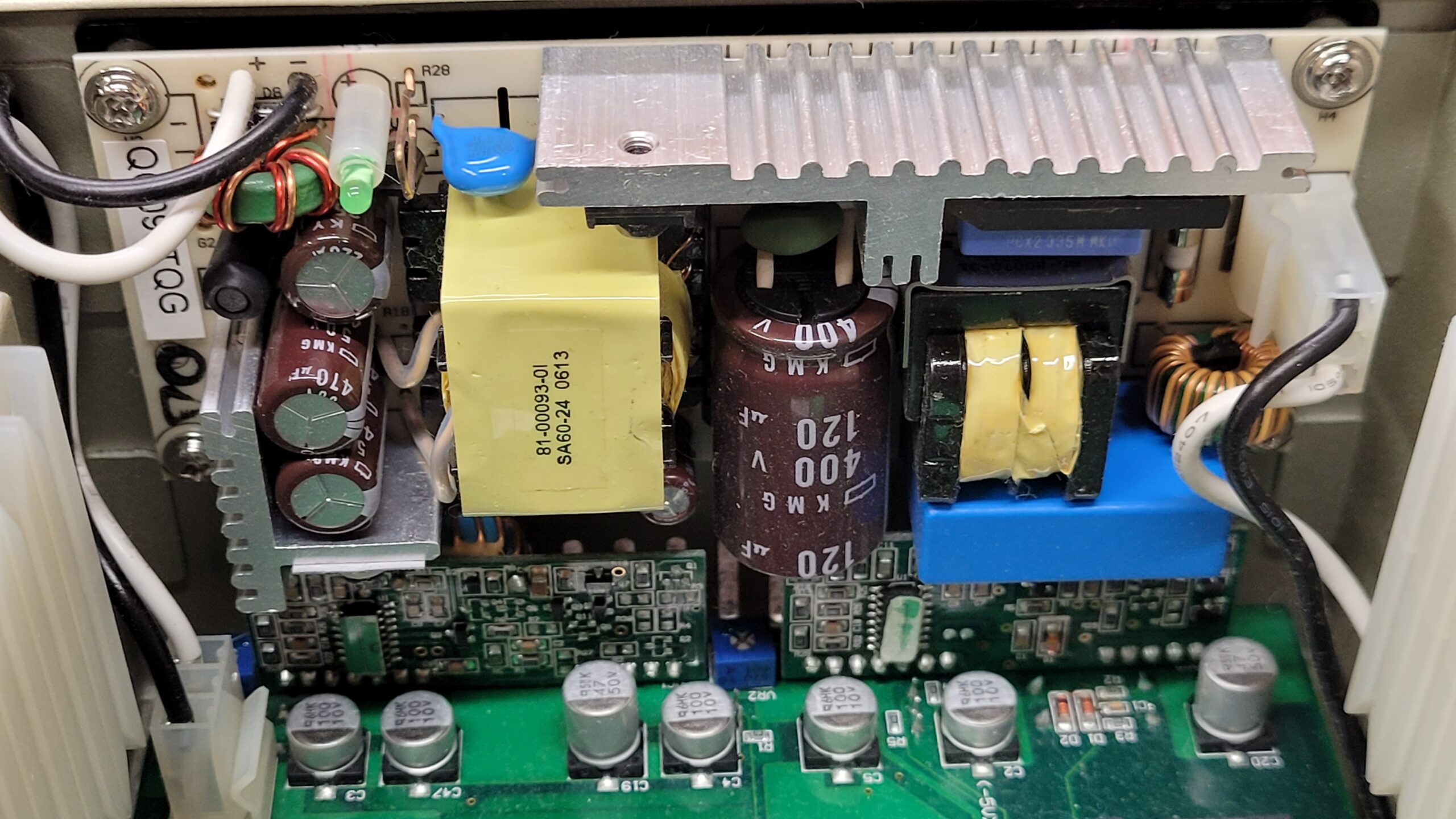

Power Supply Mounted to Front The (L) (R) Are Connector Sides.
CPD Board #8 (L)
CPD Board #6 (R)
CPD Board #4 (L)
DAC 1/2 Board
CPU + RAM Board
CPD Board #3 (L)
CPD Board #1 (R) (Special Note On the Board For That Slot Only)
CPD Board #7 (L)
CPD Board #5 (L)
Last Updated on March 2, 2025 by Steven Rhine
