Xeltek Superpro 6000 Universal Programmer Teardown
All The PCB’s..

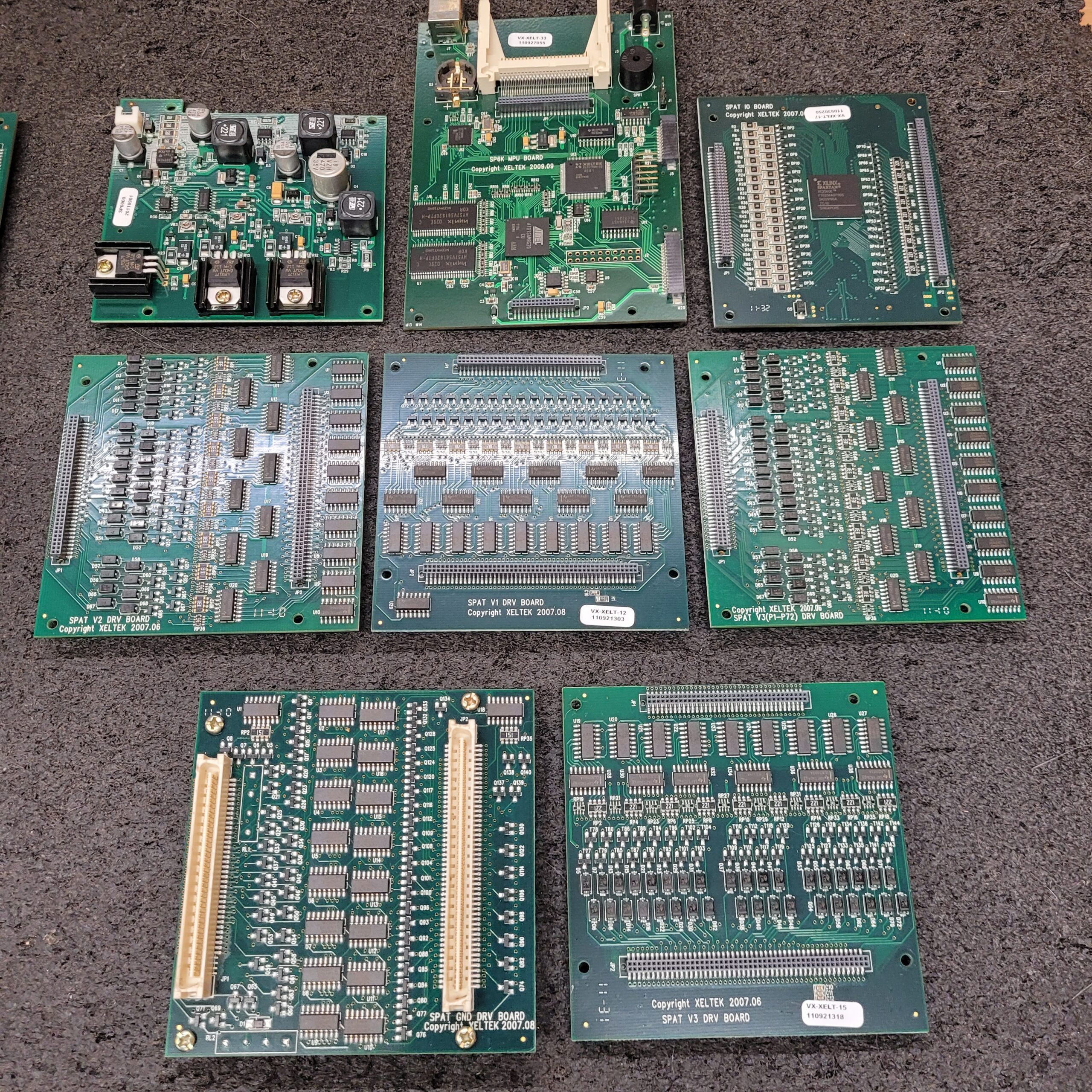

The Photos here are posted in the Layers As they are Removed form Bottom to Top.

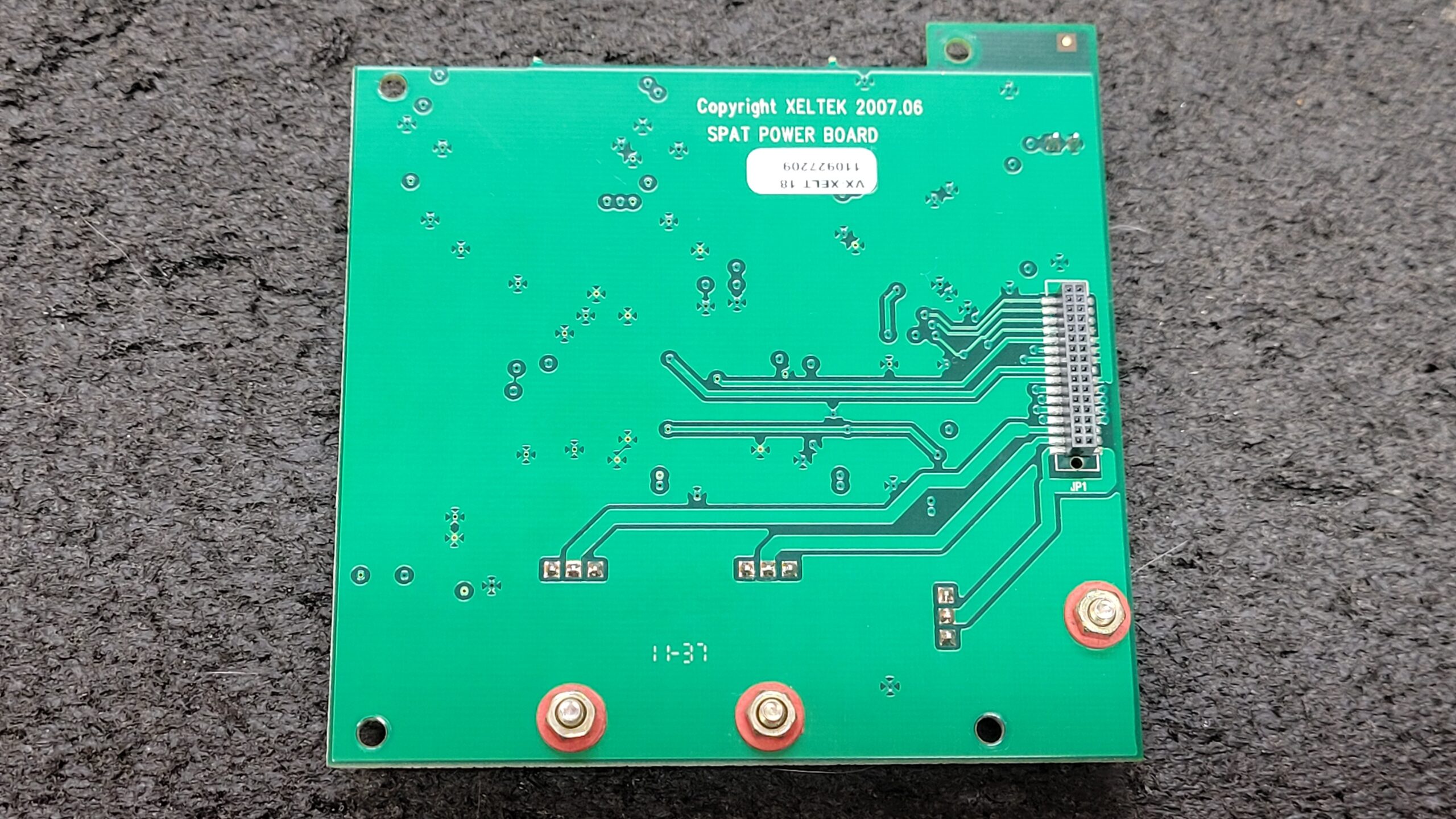

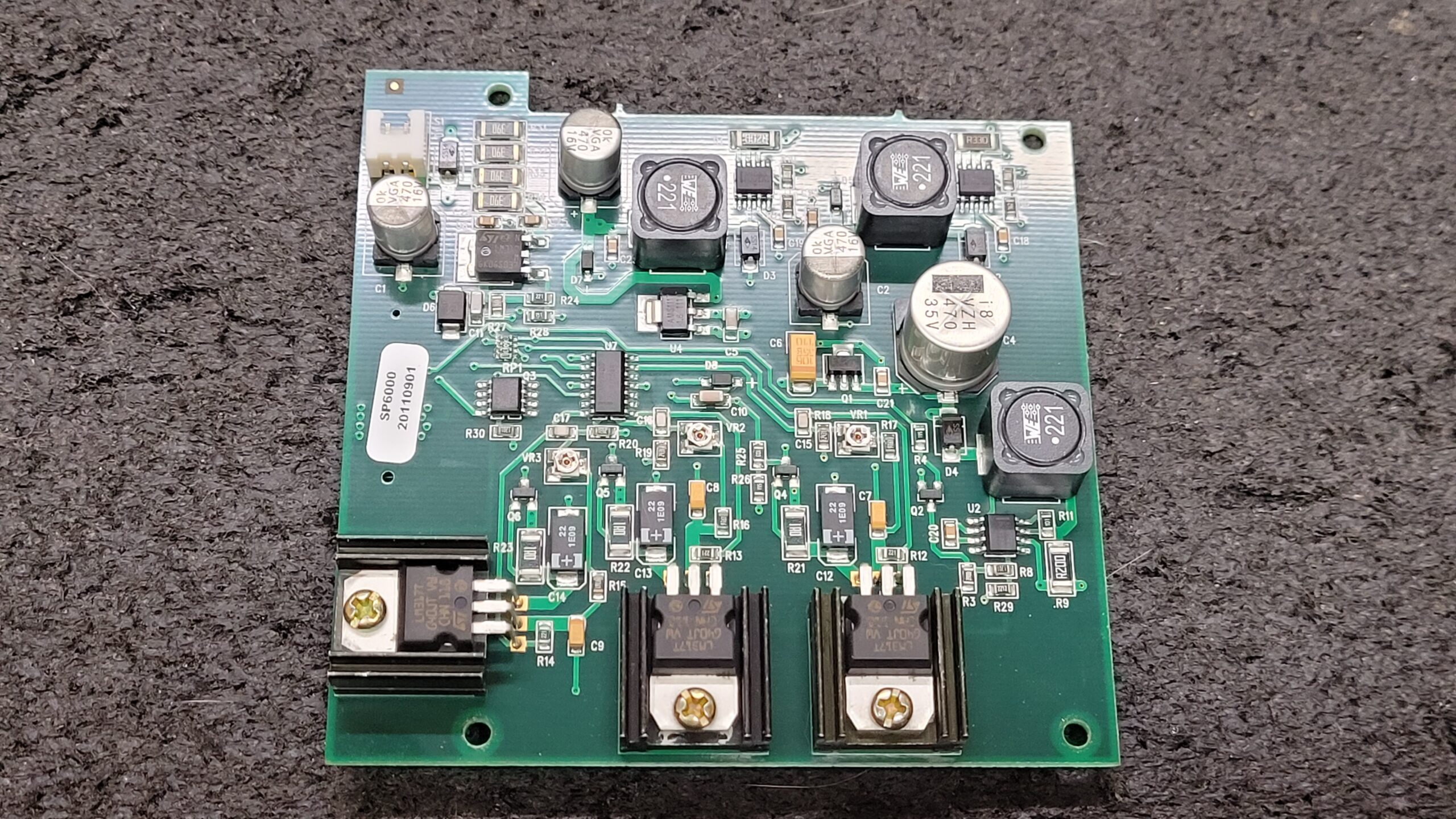

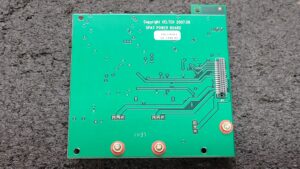

Xeltek Superpro SP6000 Power Supply SPAT Power Board 2007.06

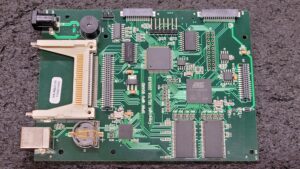

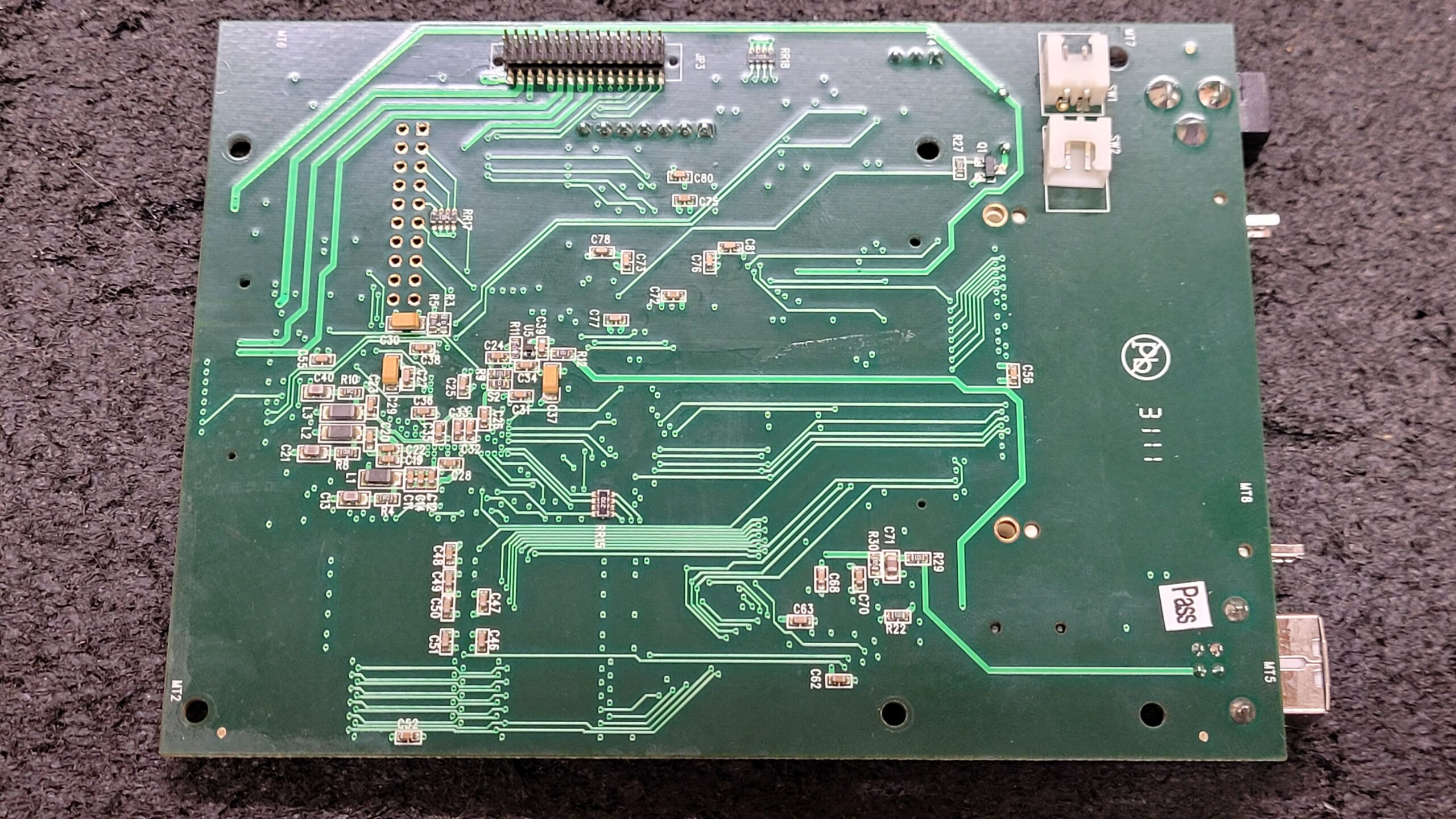

MCU Board 2009.09

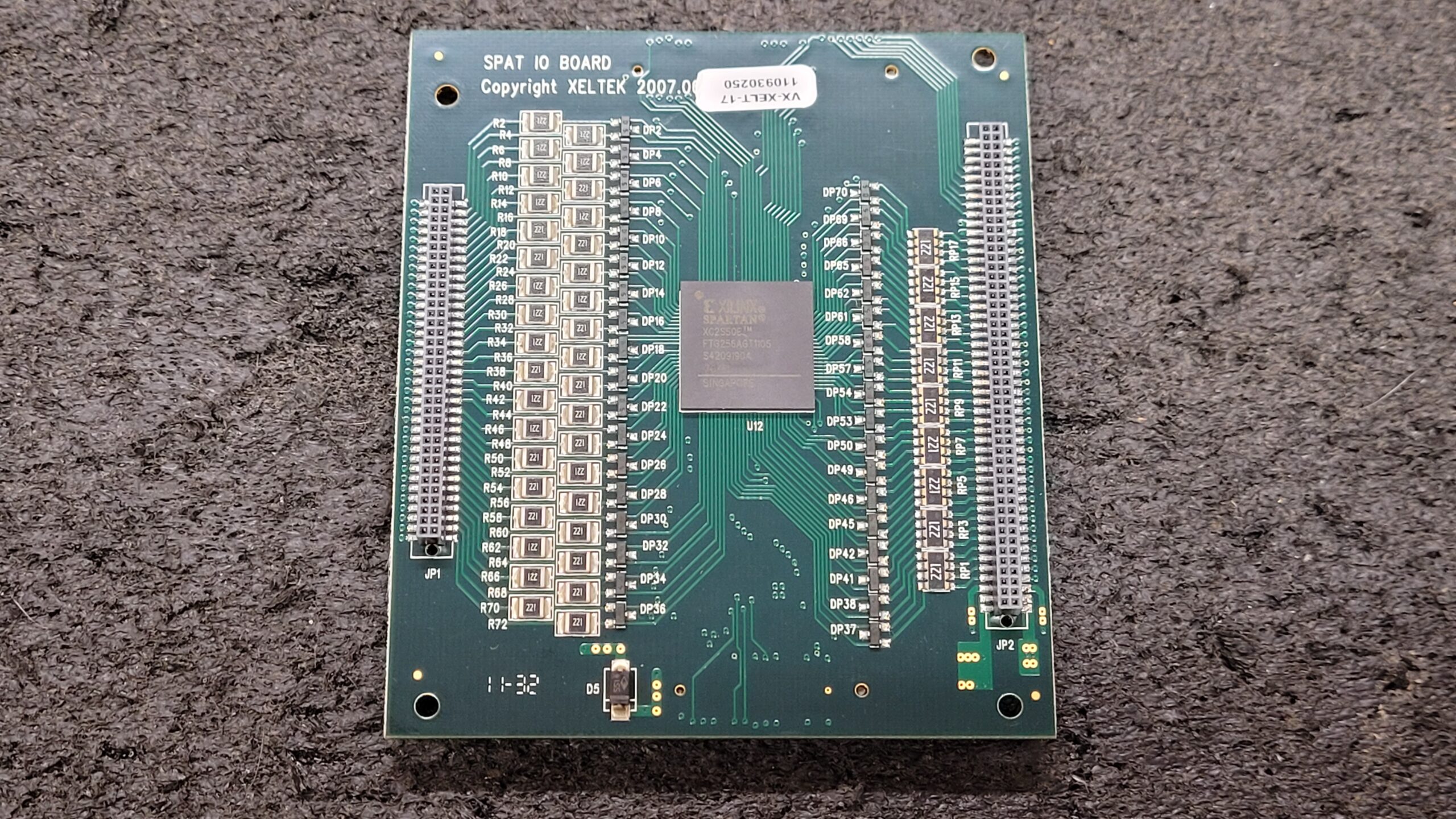

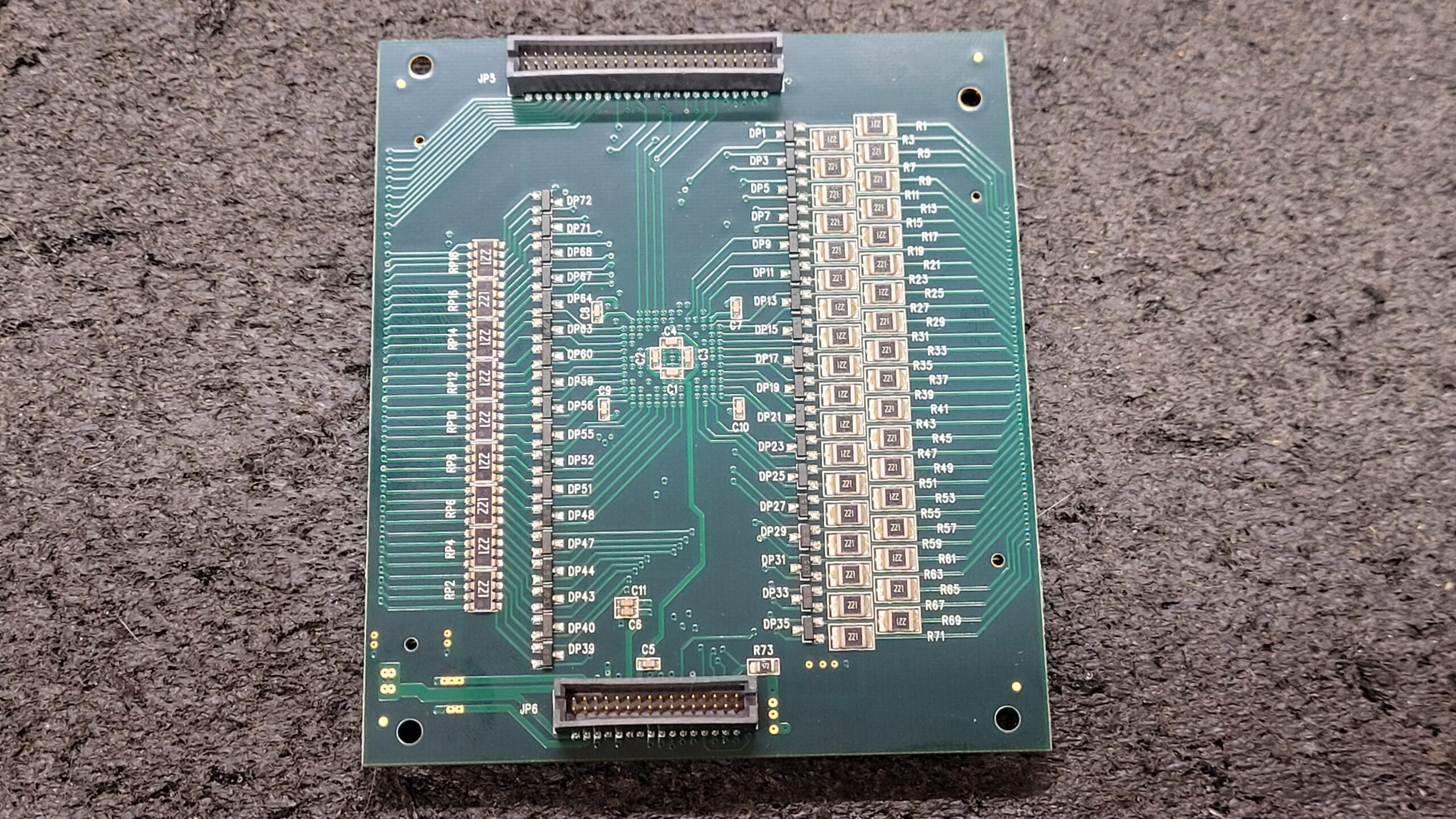

I/O Board 2007.06

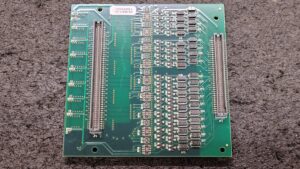

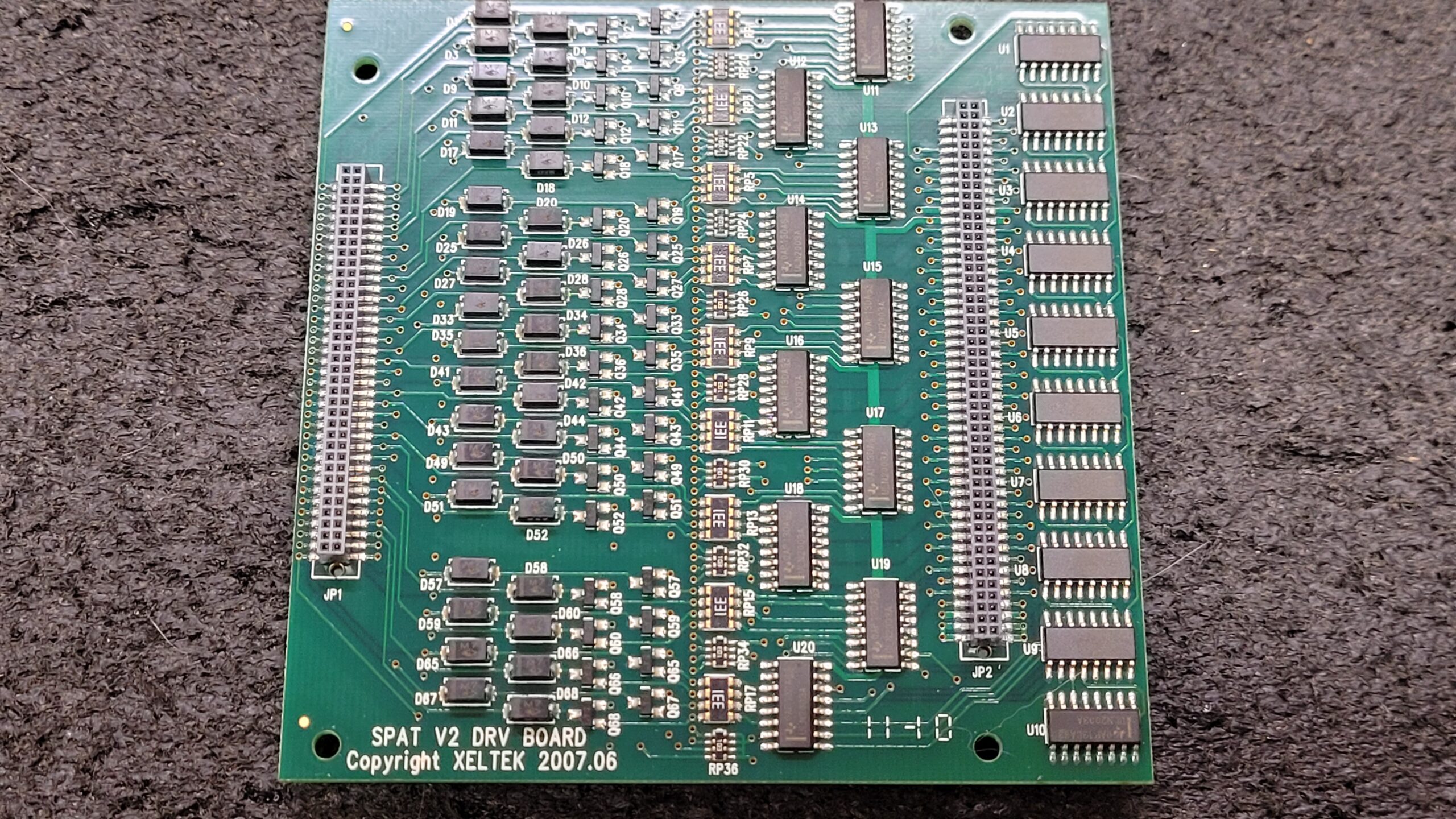

V2 Driver Board 2007.06

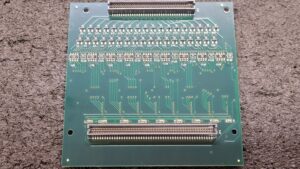

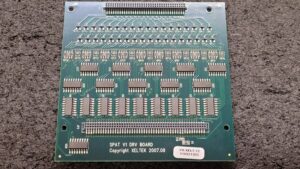

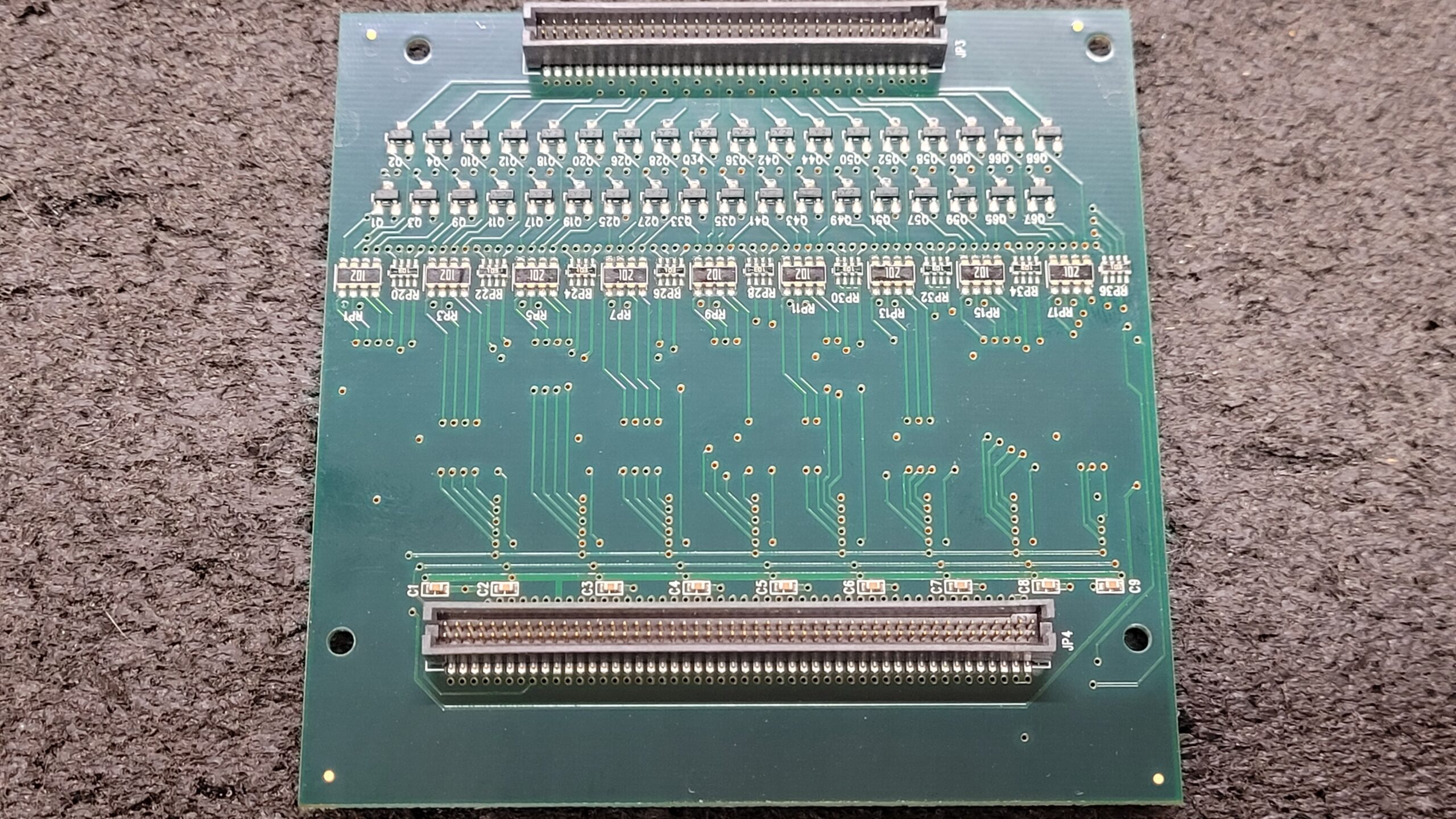

V1 Driver Board 2007.07

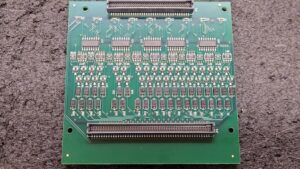

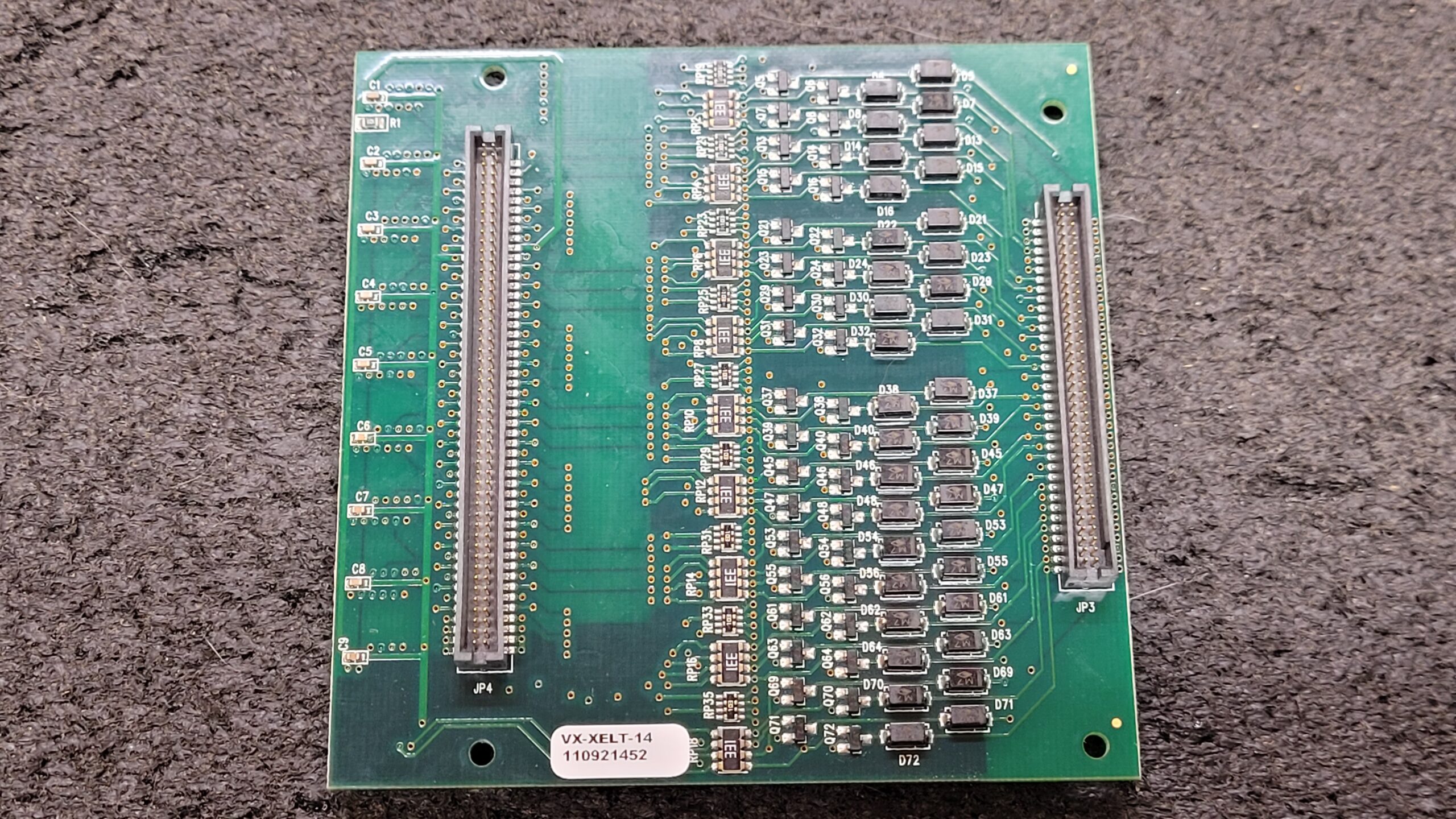

V3 Driver Board 1-72 2007.06 ?

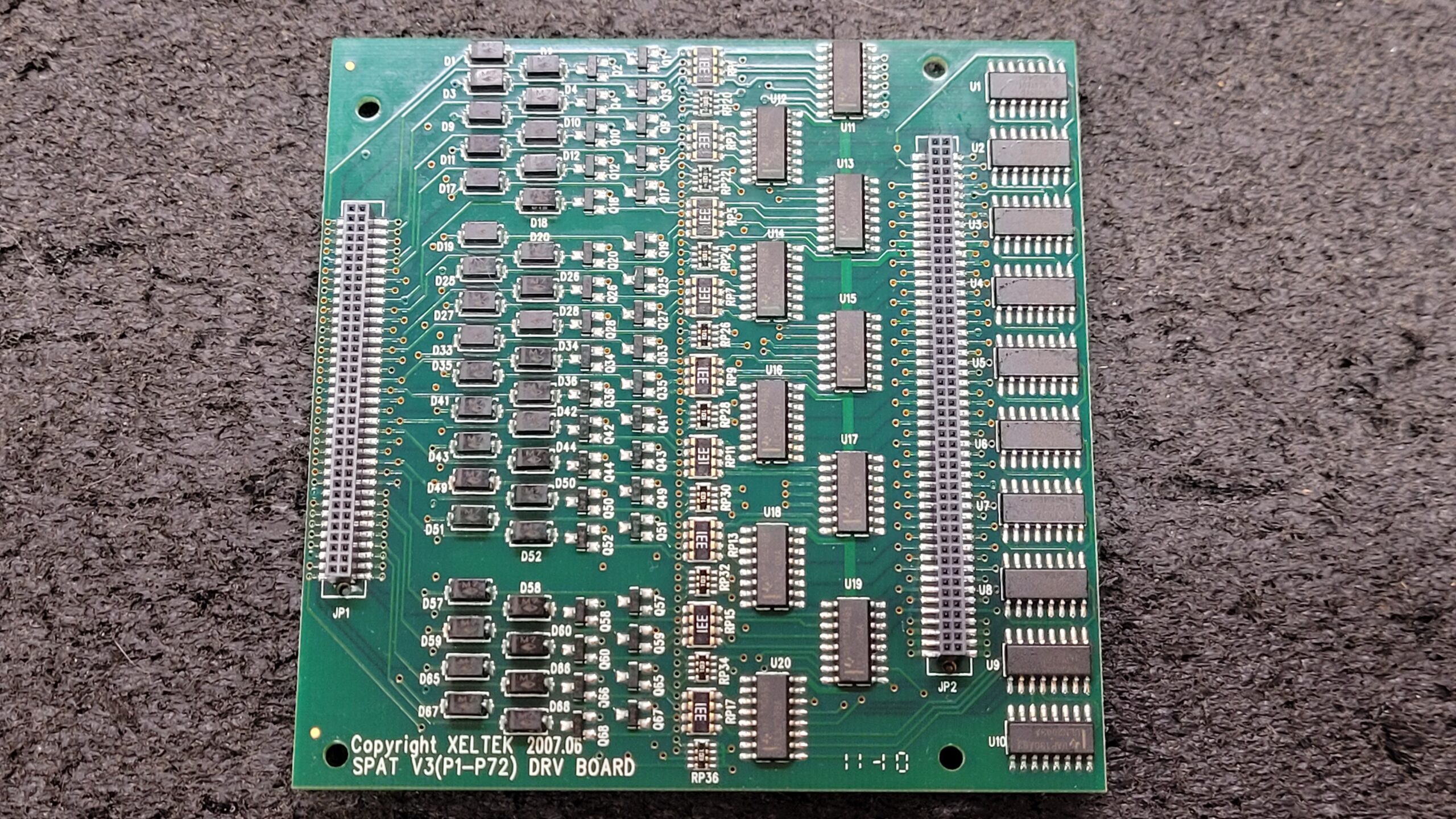

V3 Driver Board 2007.06

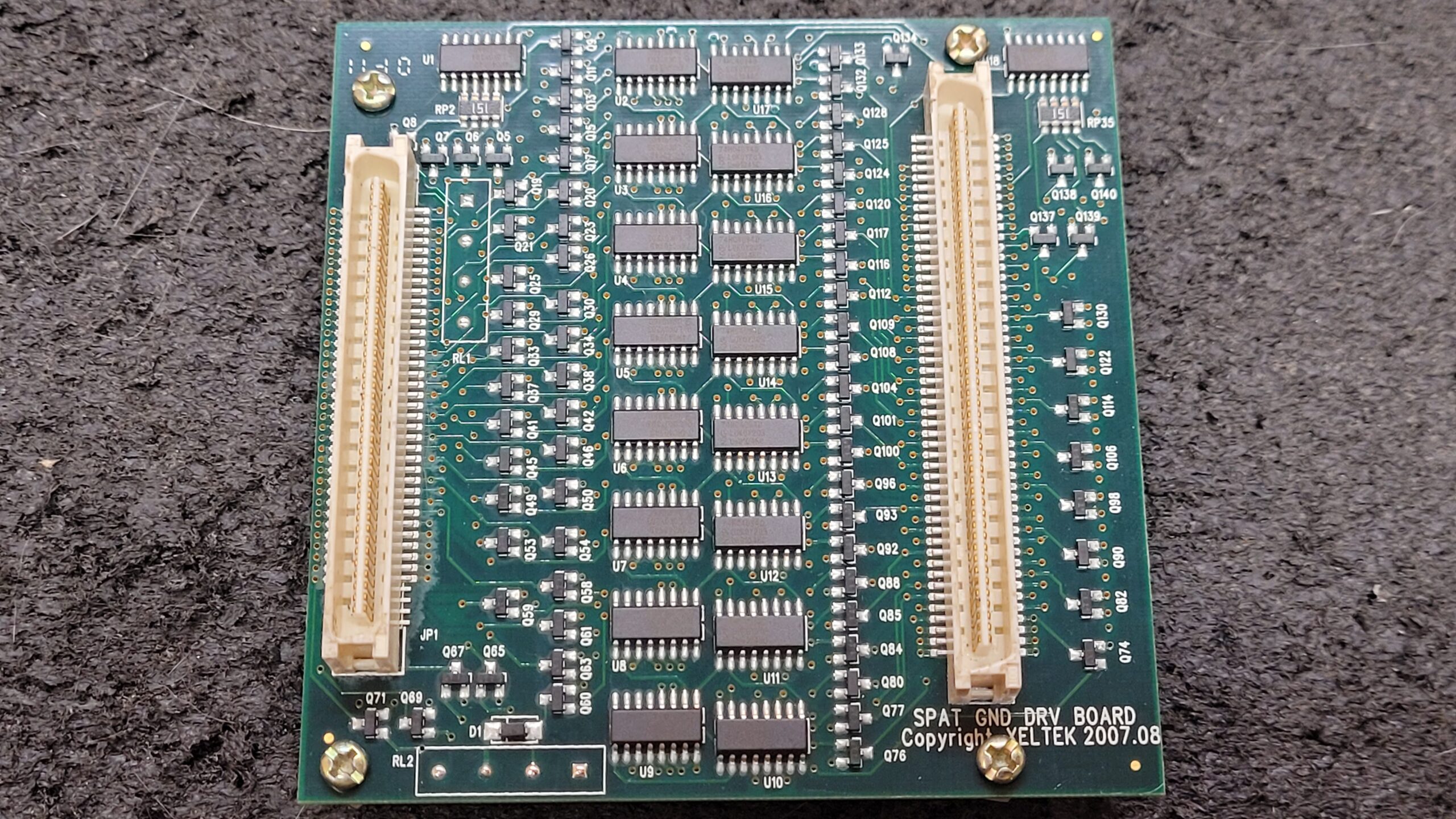

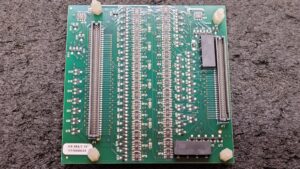

GND Driver Board 2007.08

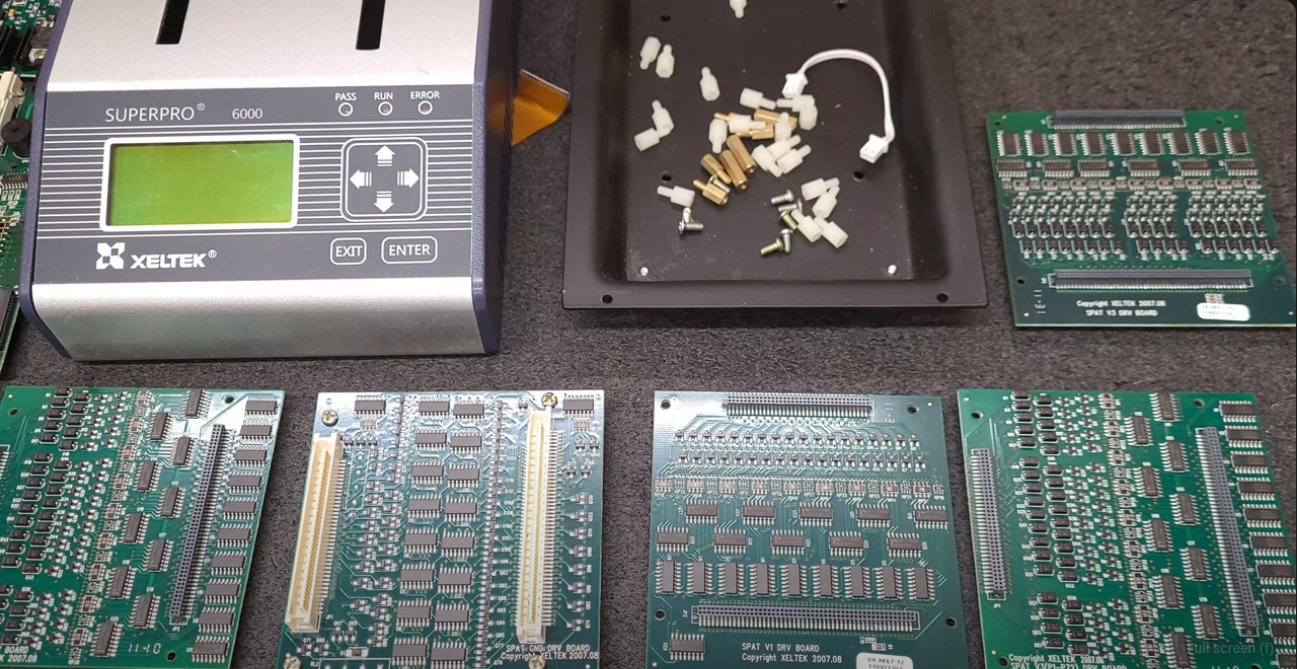

Xeltek Superpro 6000 SP6K PCB Inspection and Reassembly of Board Stack Video. (Scheduled 02/19 3pm Pacific Time)
