The Xeltek SP5000E and SP5000 are Identical hardware wises, the only difference I could see how it is programmed firmware. So the Custom Labeled AE80 on the MCU Board says I am a SP5000E or a Sp5000 that… This is a prime example of how manufactures take advantage of Consumers

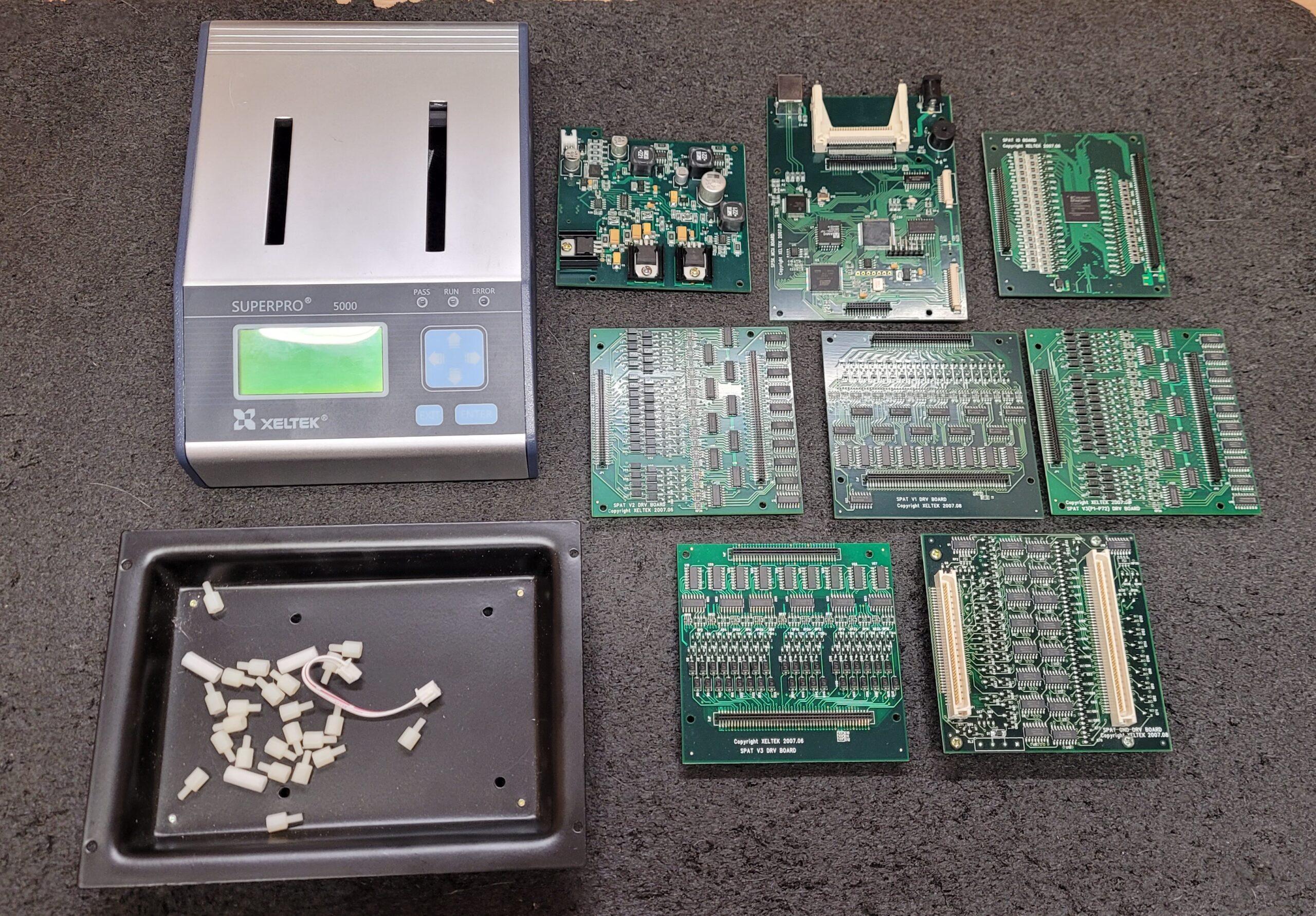

Xeltek Superpro 5000 SP5K Universal Programmer Teardown
I will Post the Photos here in the Layers As they are Removed form Bottom to Top. I will Post 4K Inspection Video Bottom of the blog for Clearer Images.

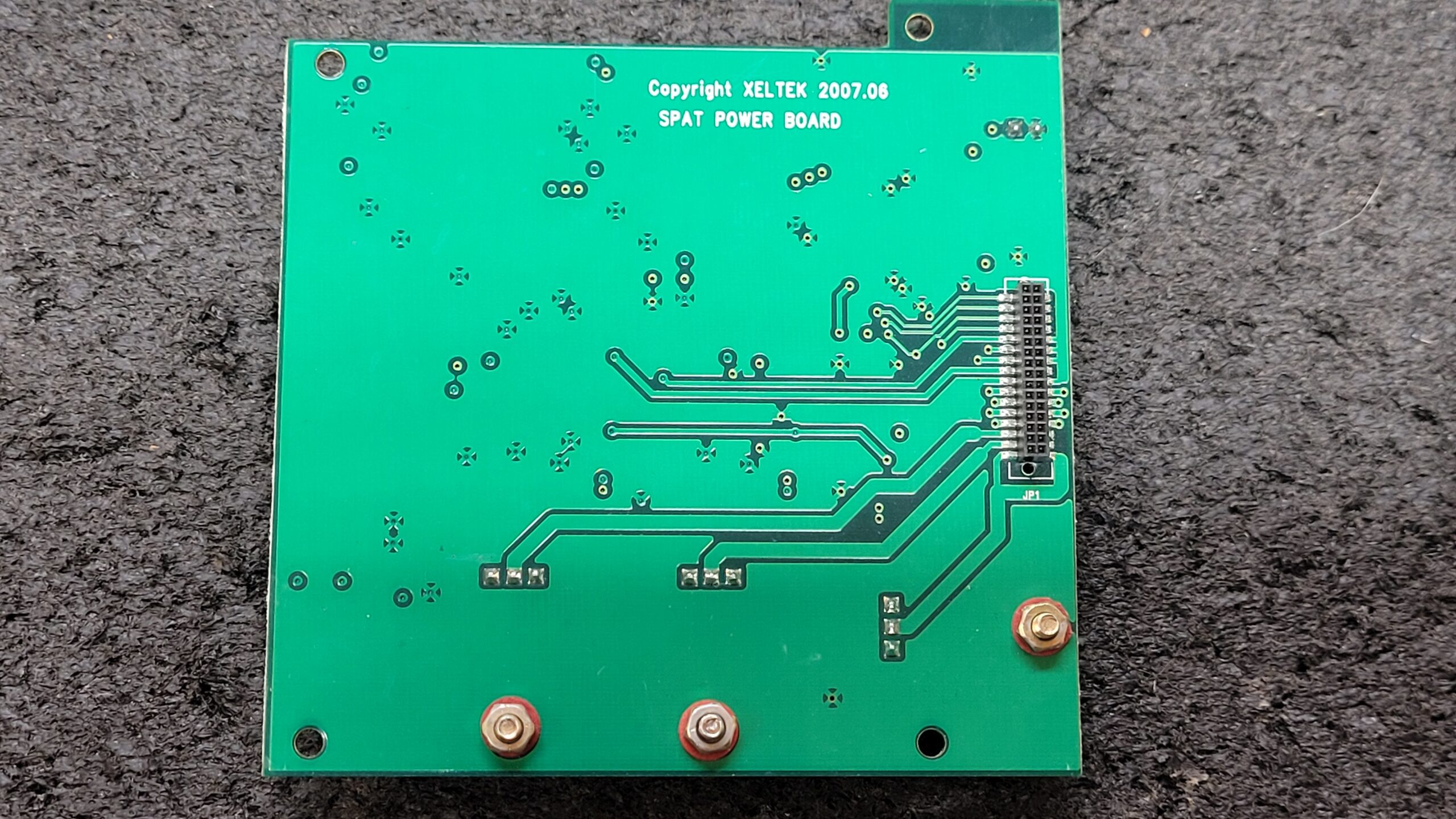

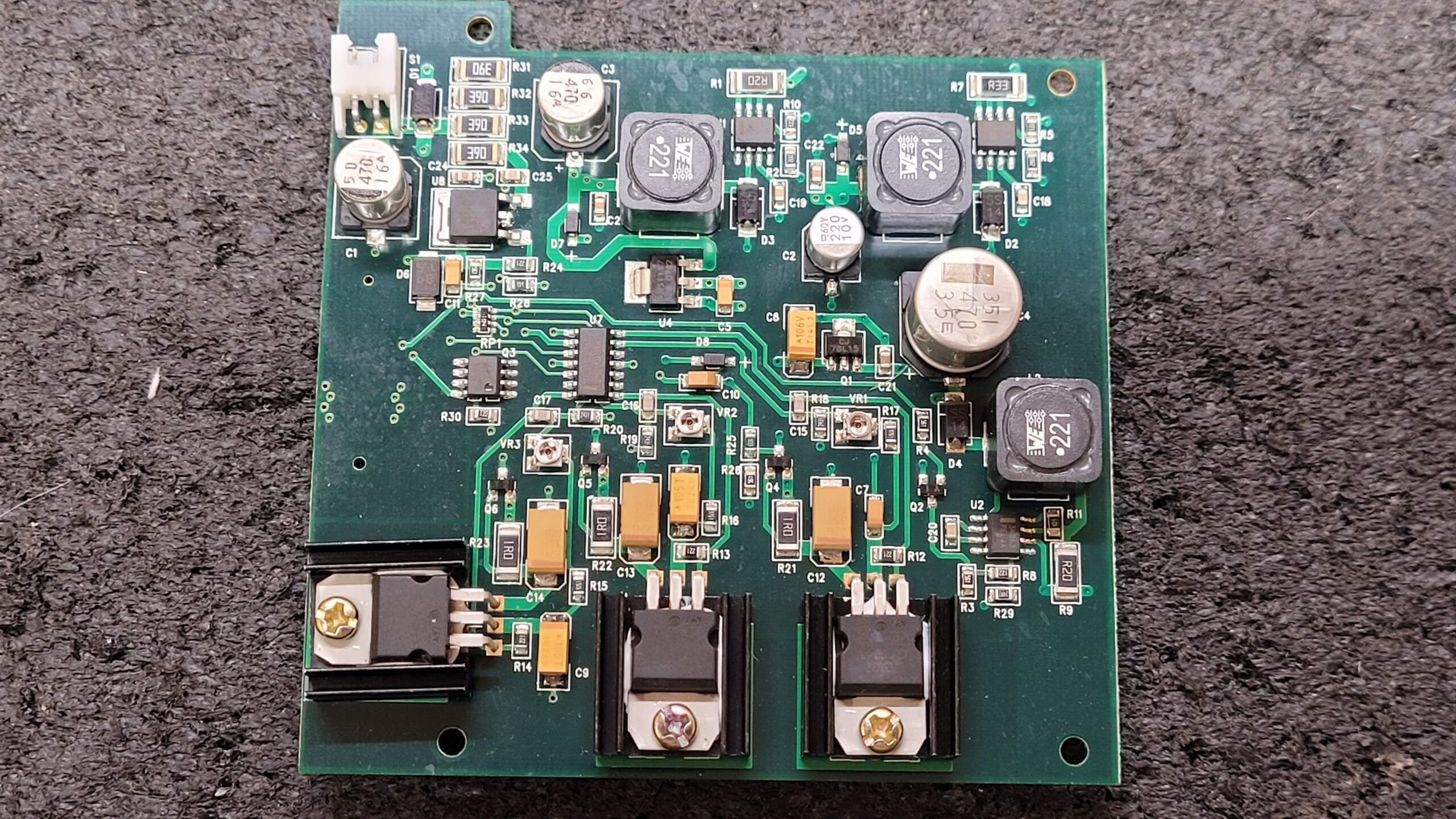

Xeltek Superpro SP5000 Power Supply SPAT Power Board 2007.06

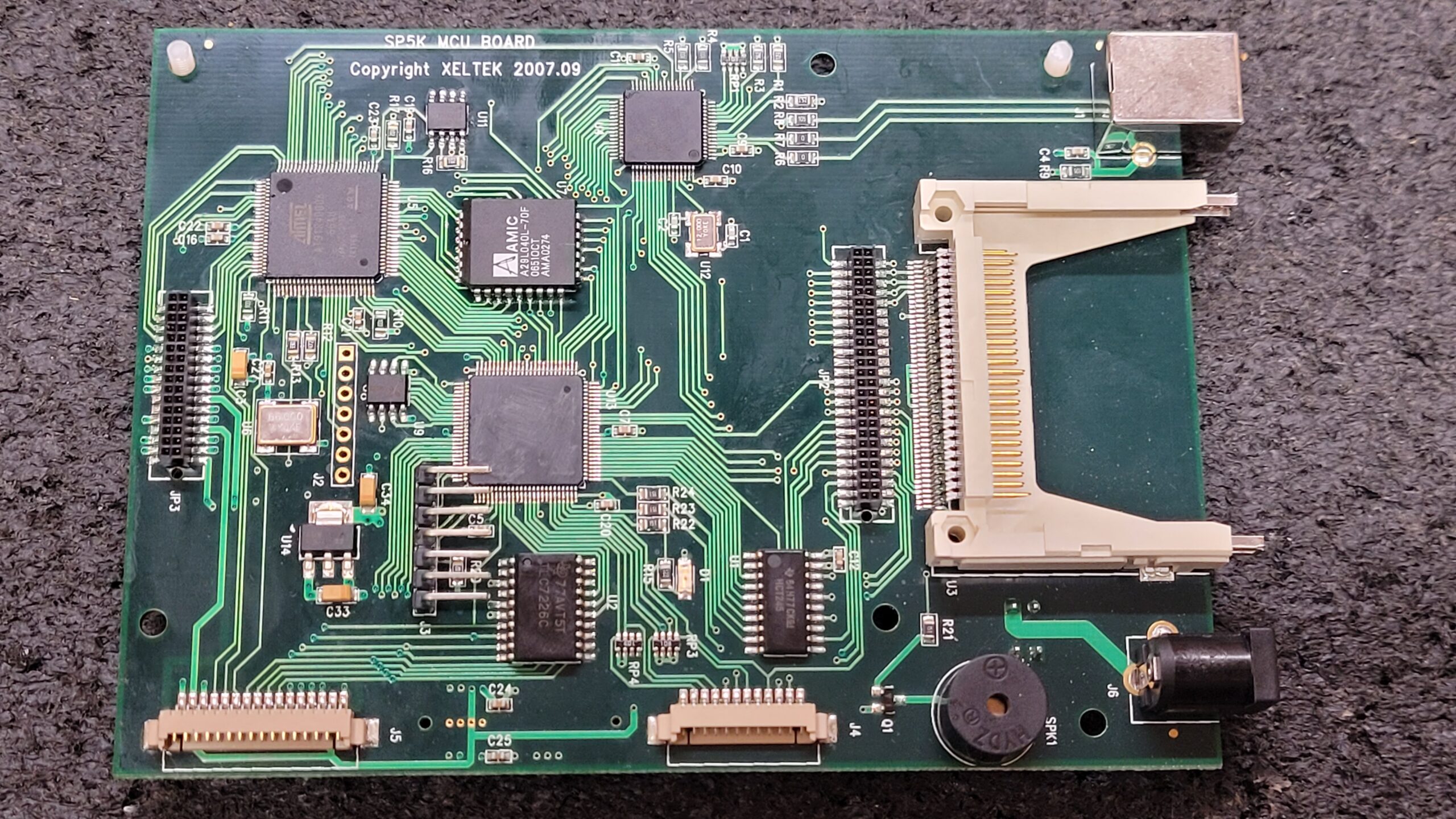

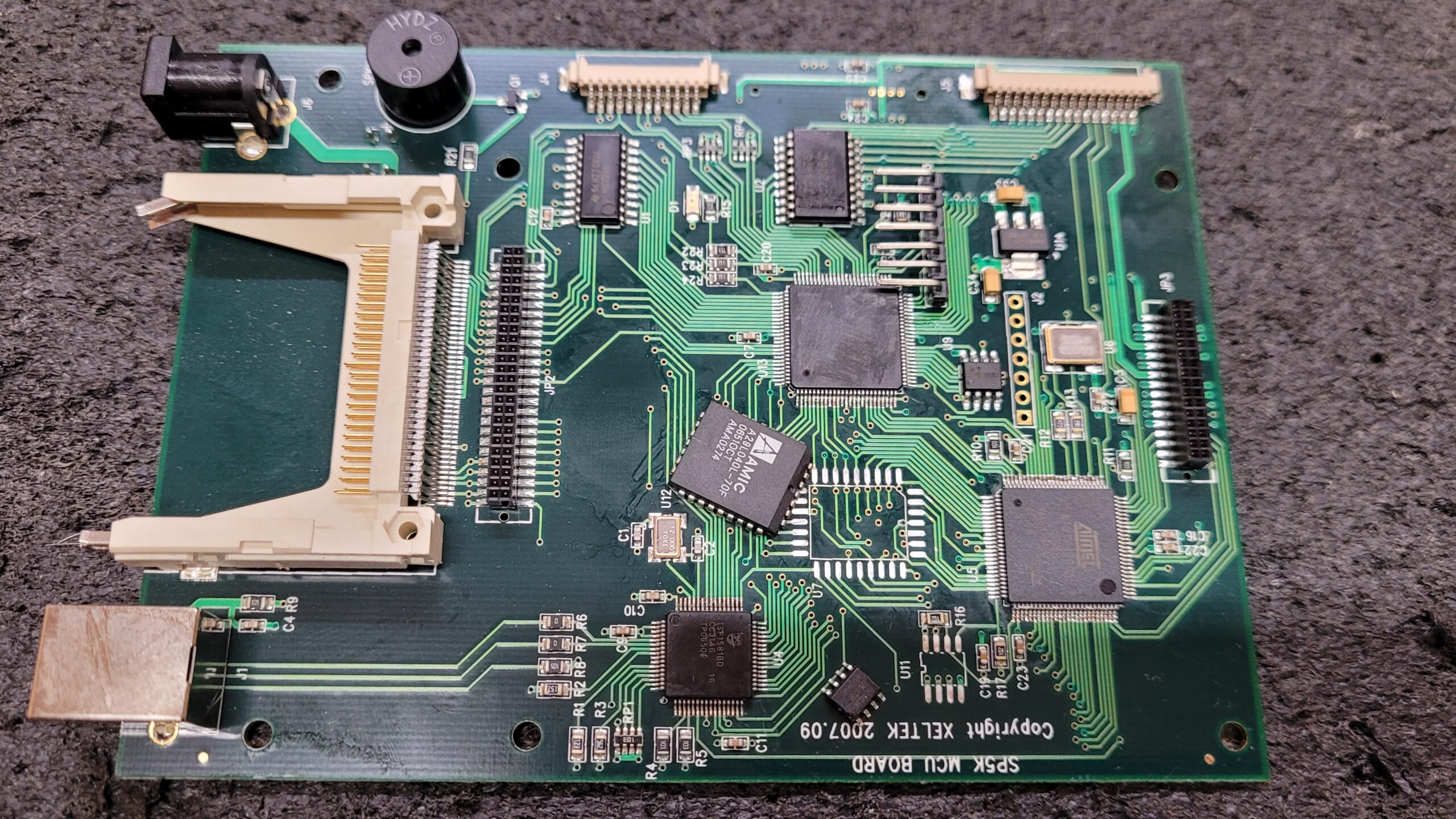

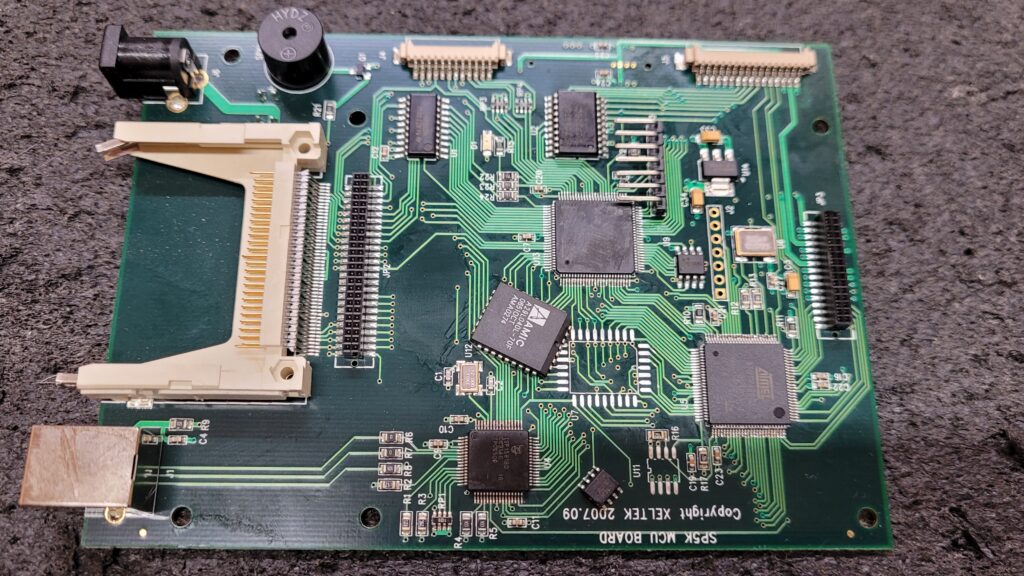

sp5000 MCU Board 2007.09
SP500E 5000E MCU Board Form Another Post.

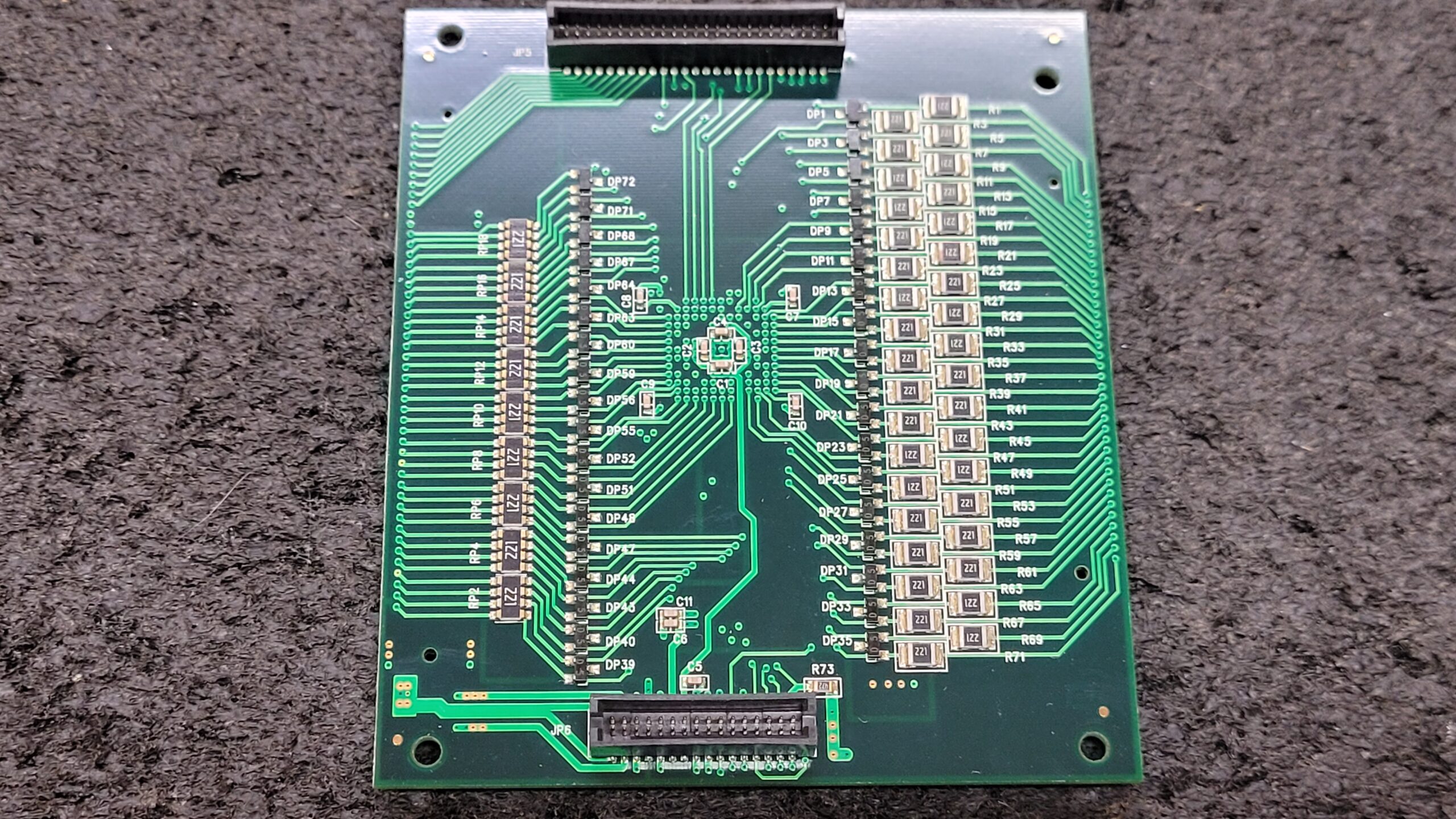

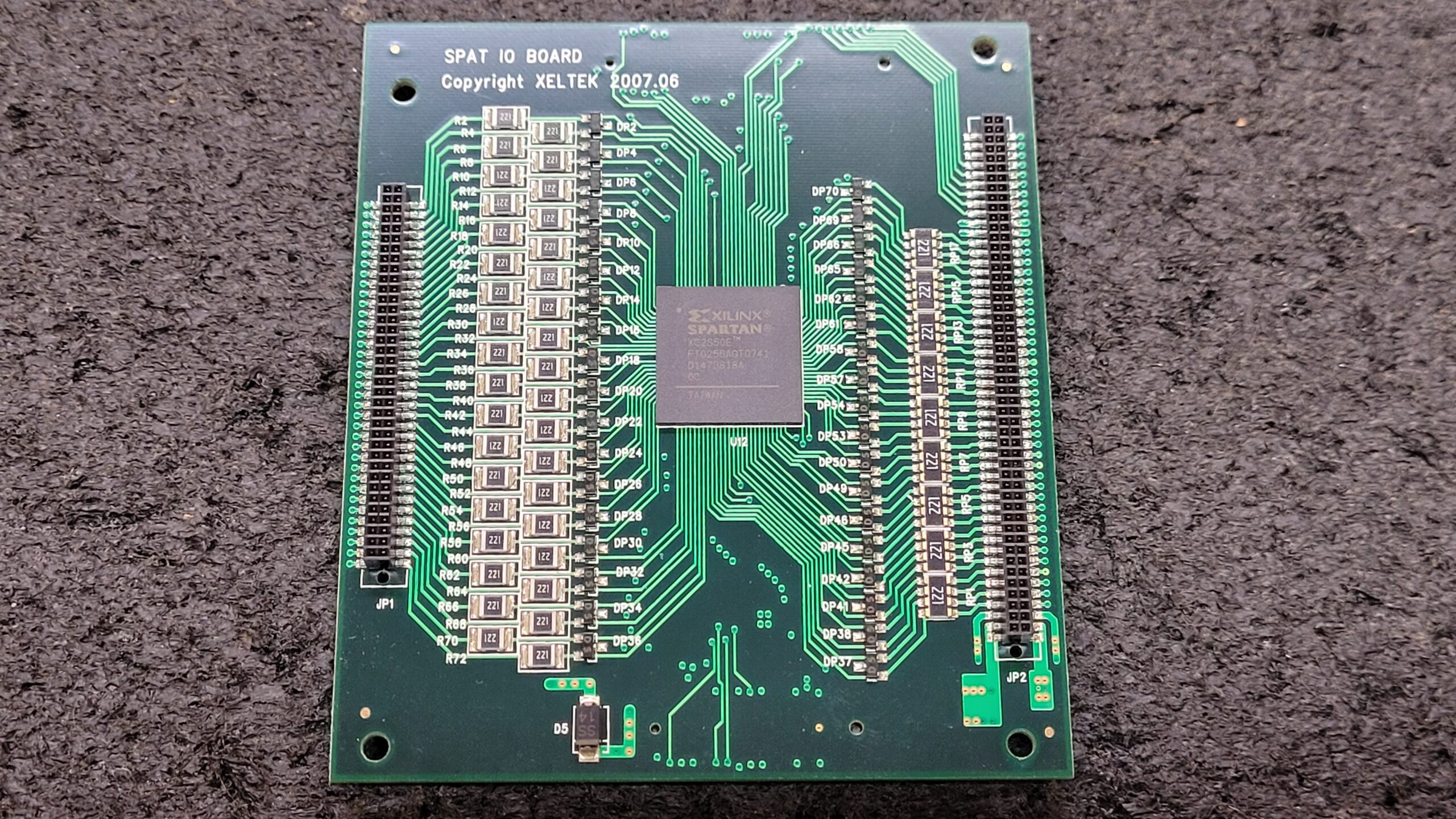

I/O Board 2007.06

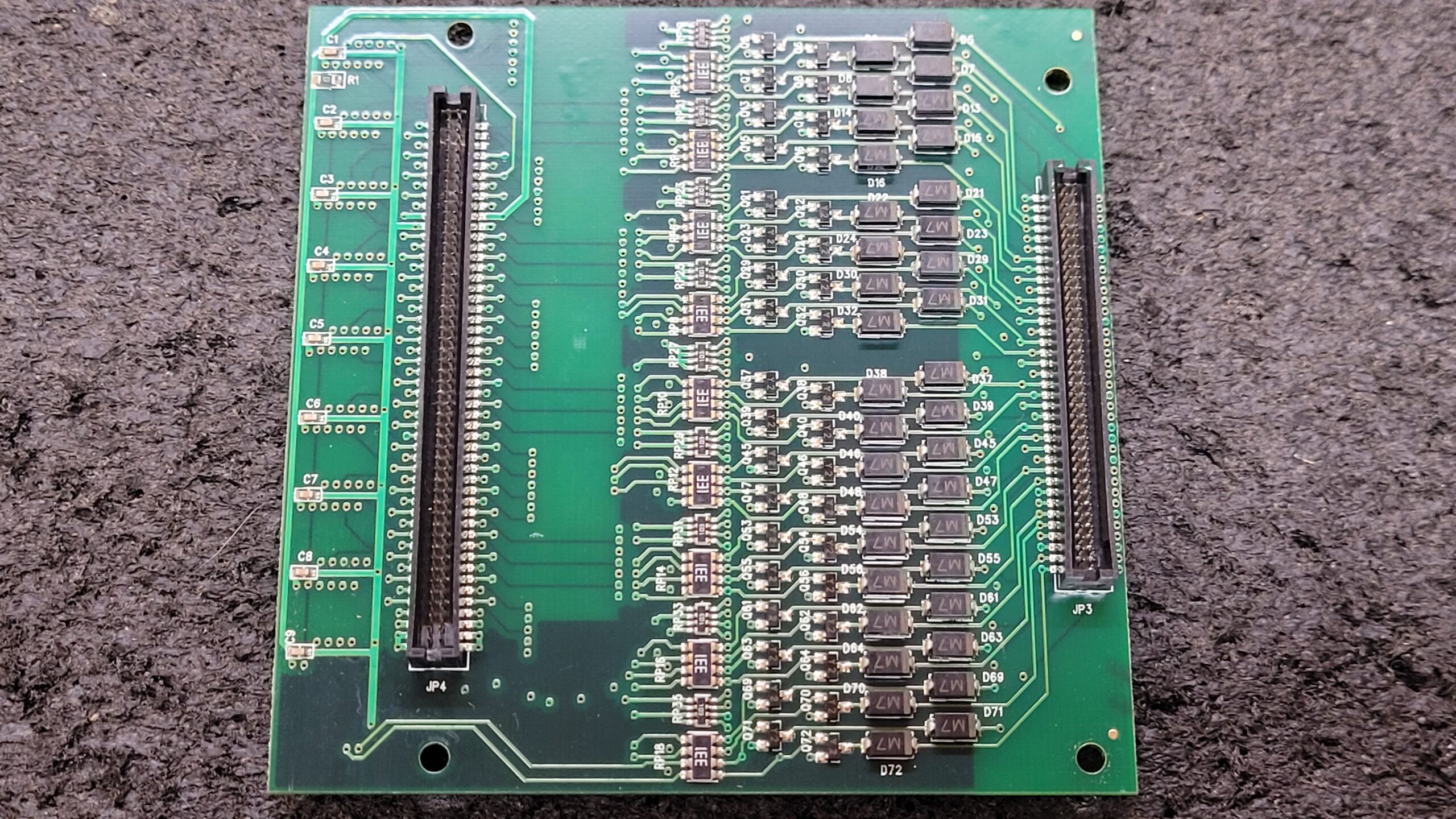

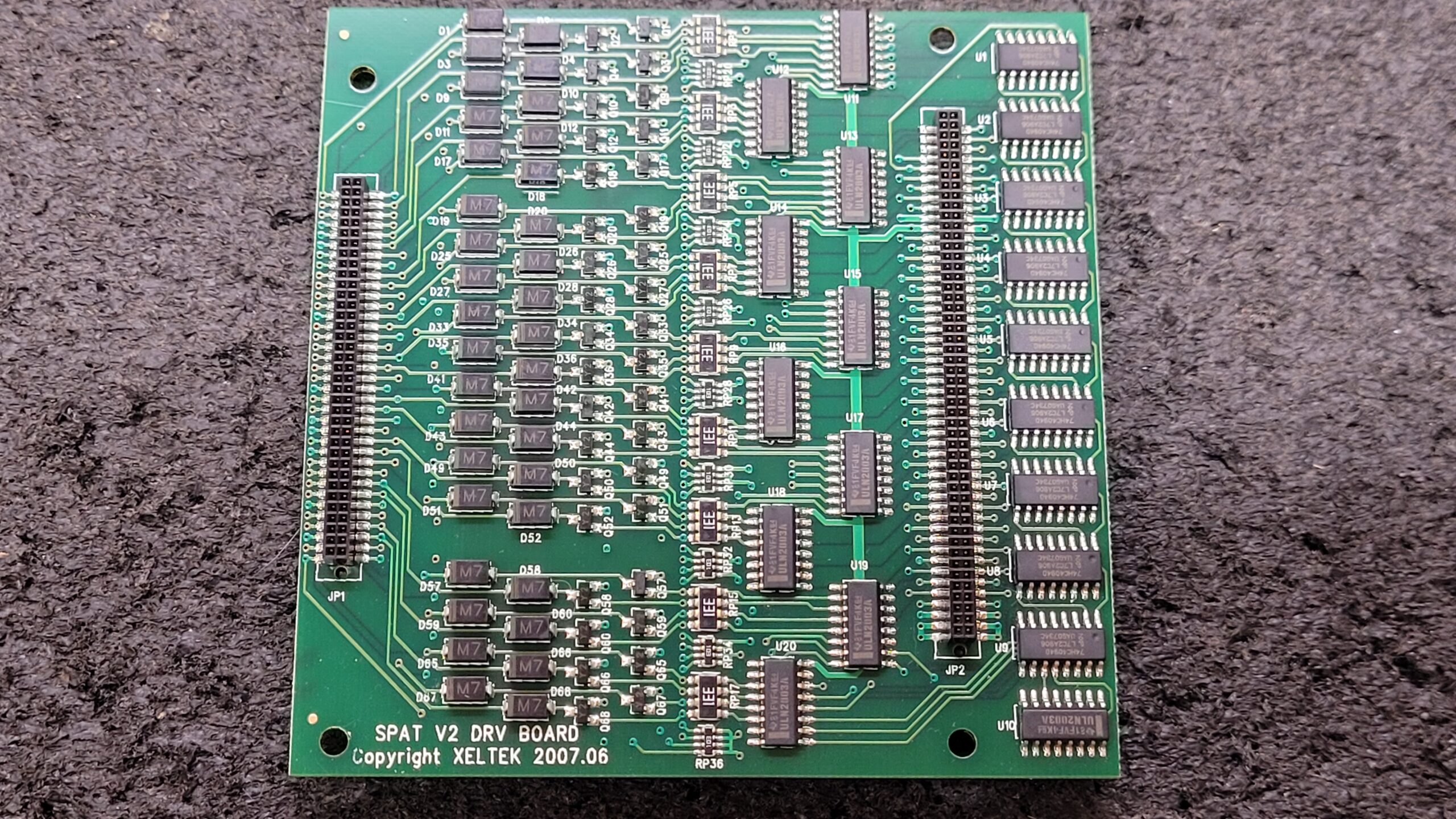

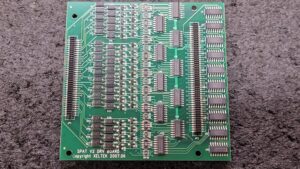

V2 Driver Board 2007.06

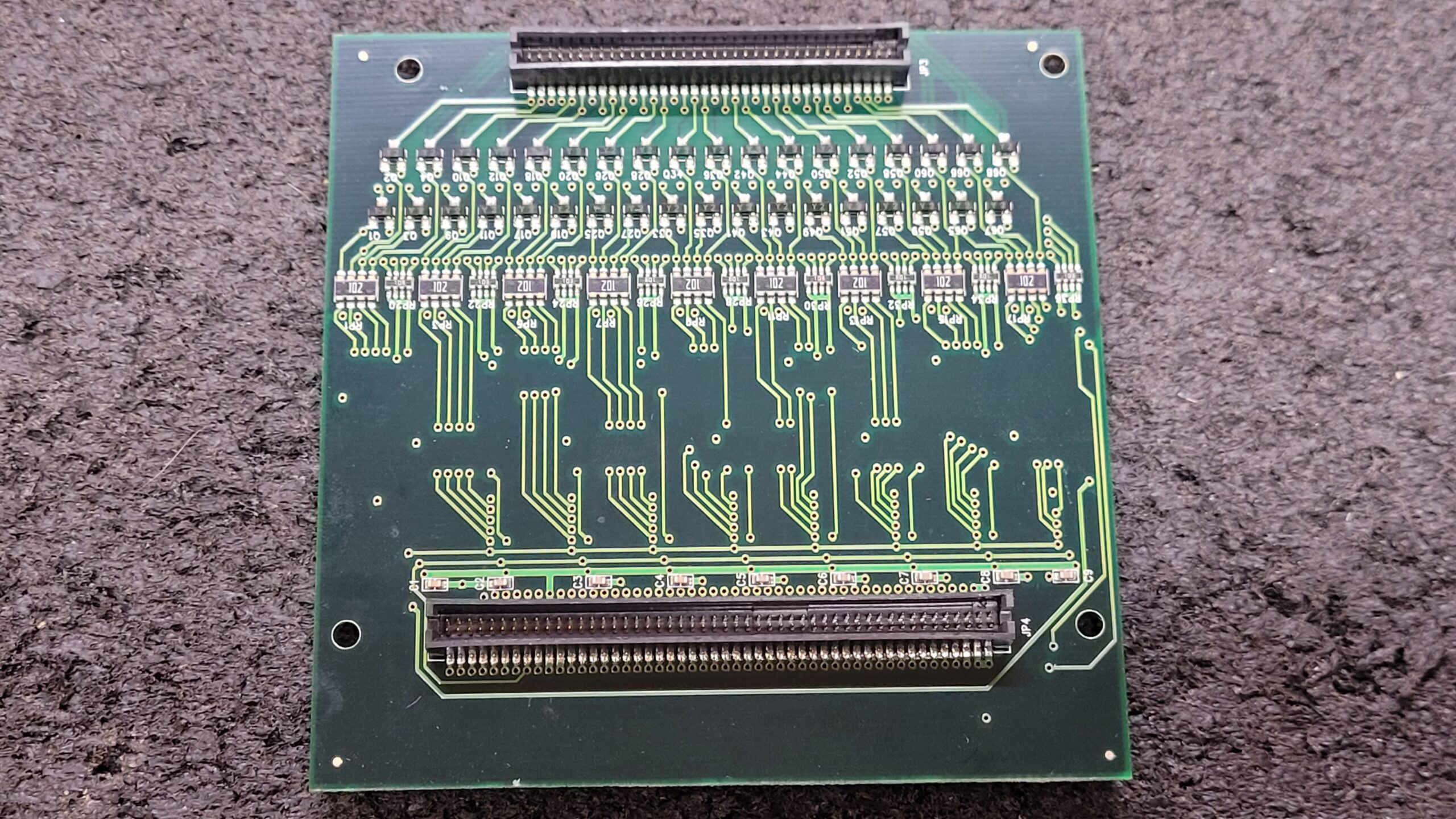

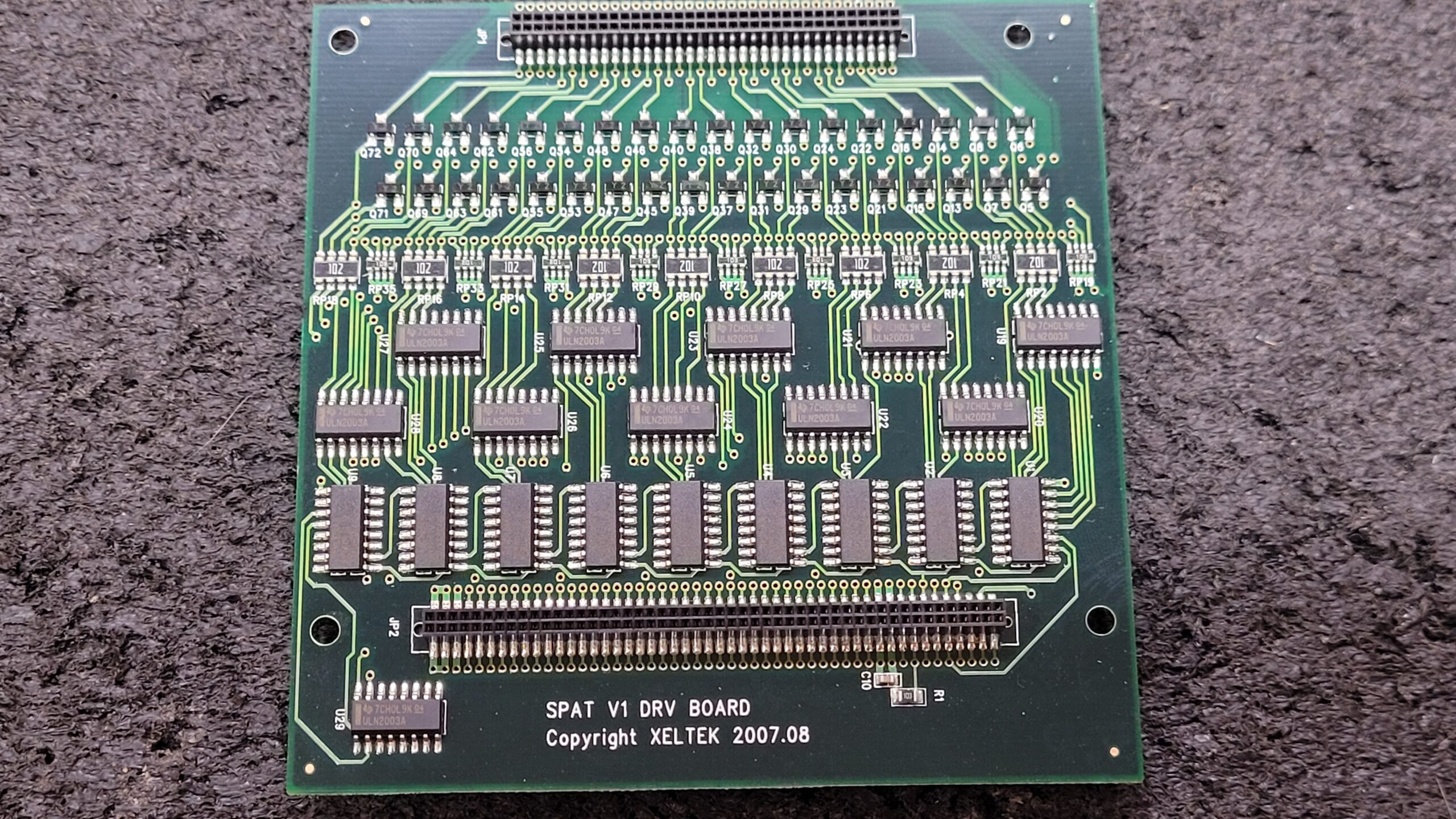

V1 Driver Board 2007.07

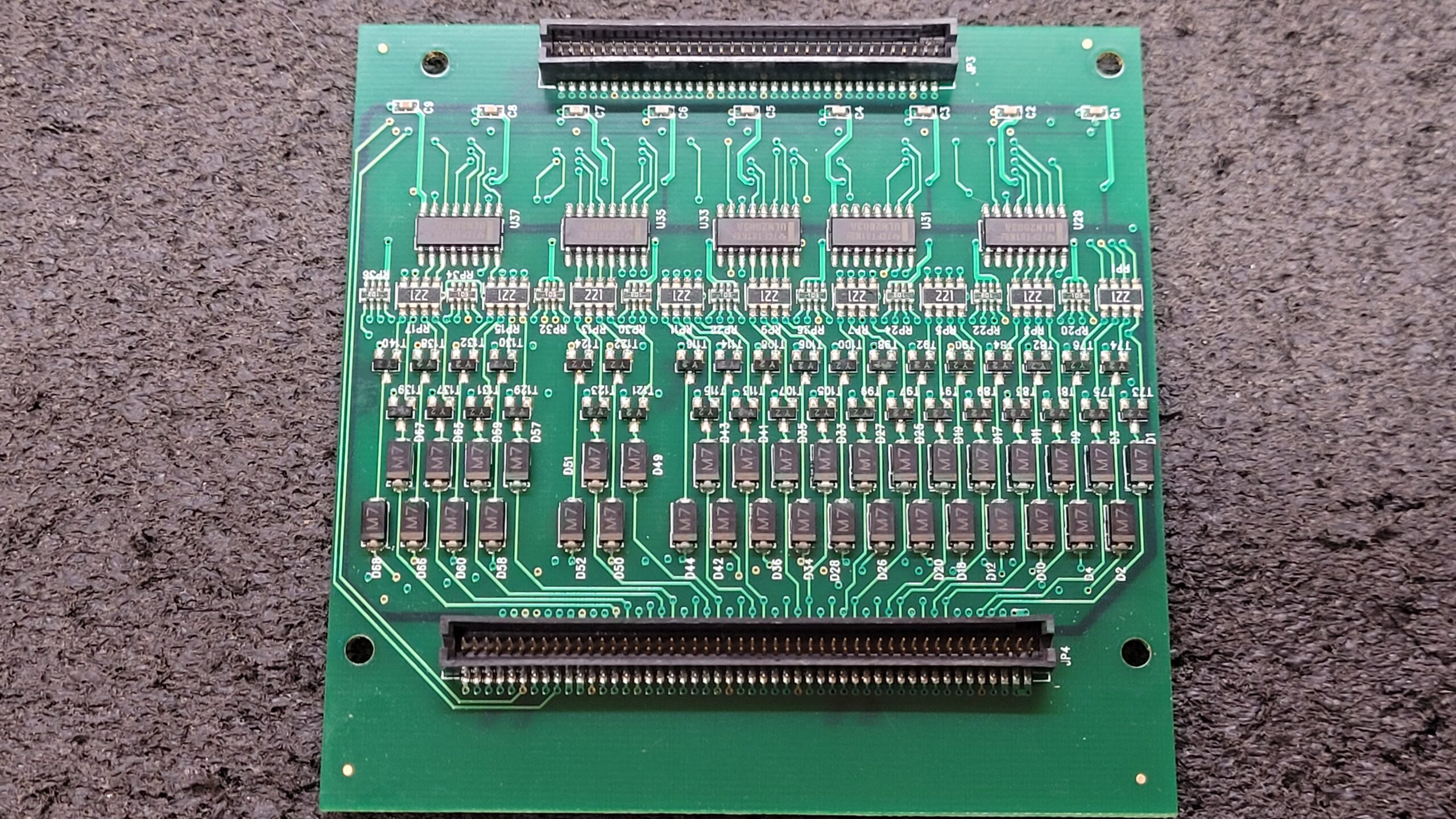

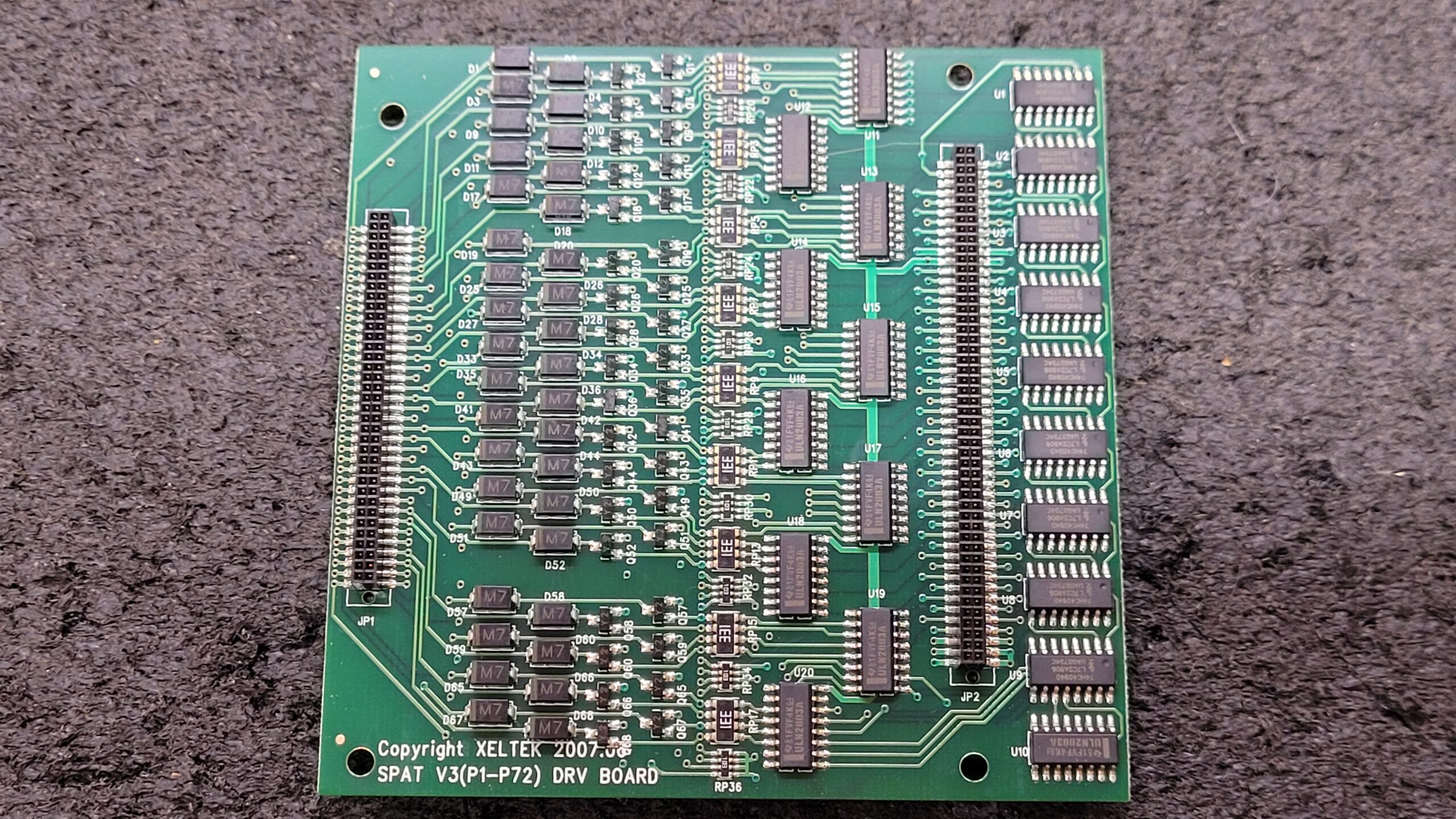

V3 Driver Board 1-72 2007.06 /08?

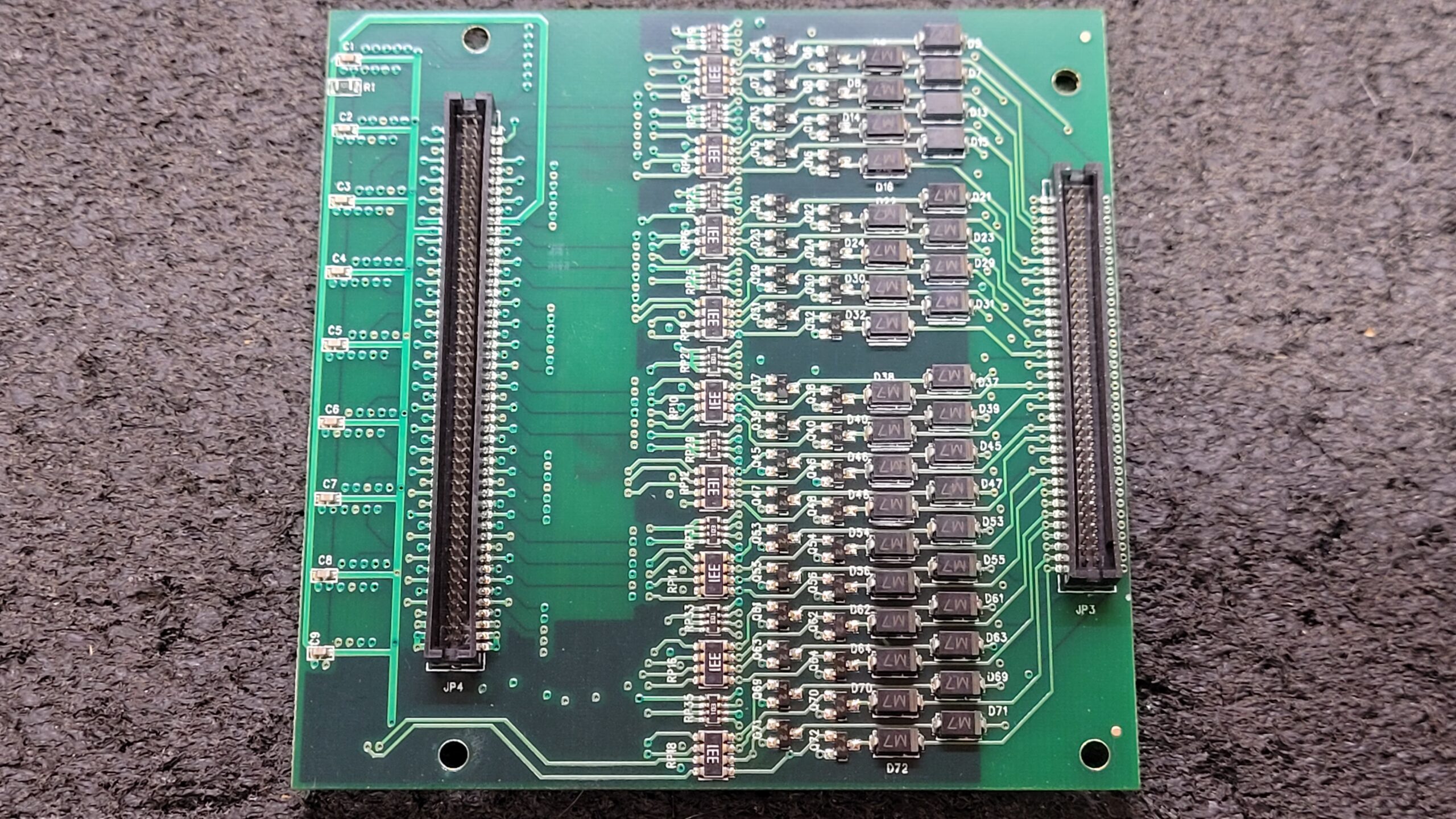

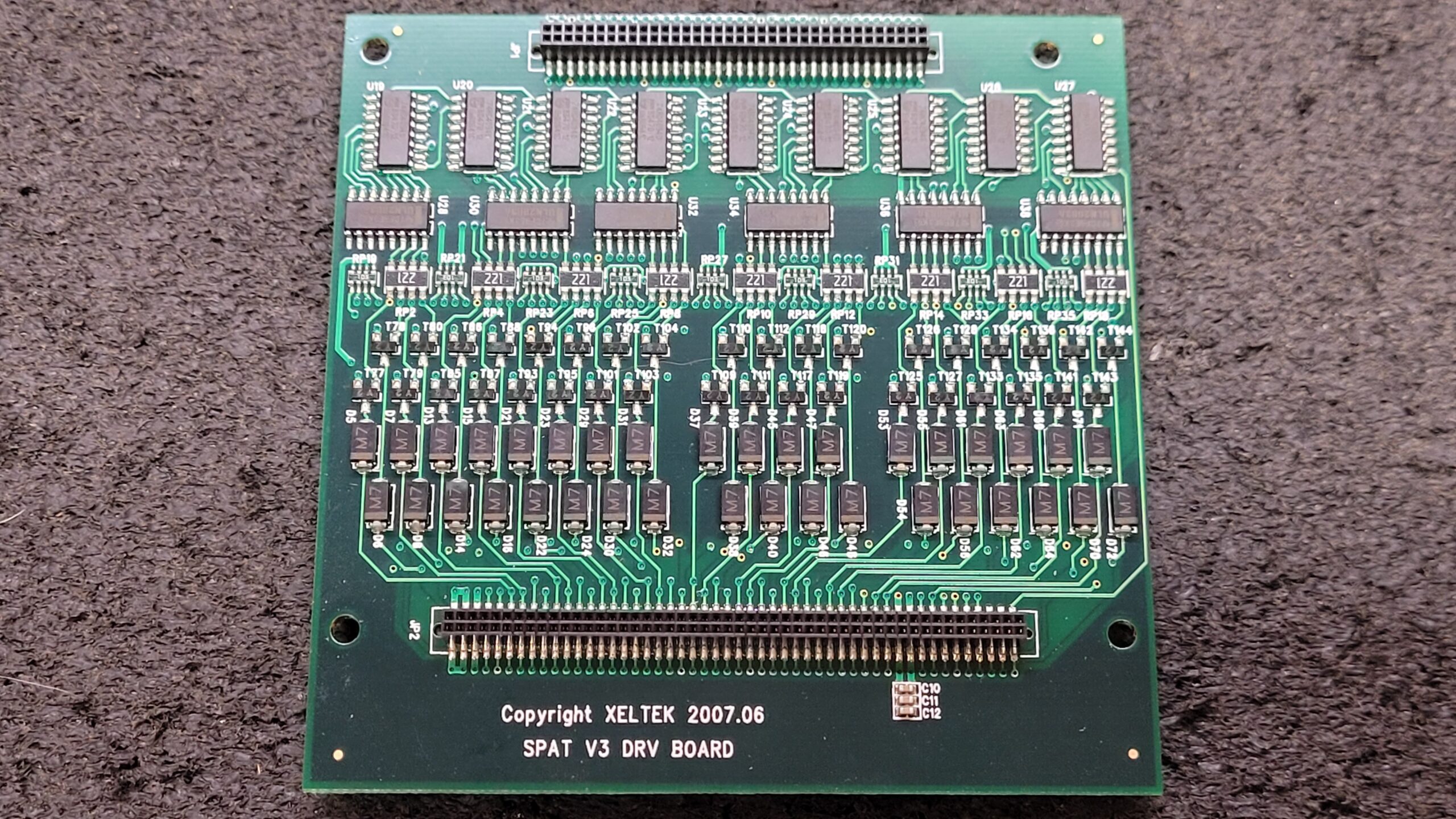

V3 Driver Board 2007.06

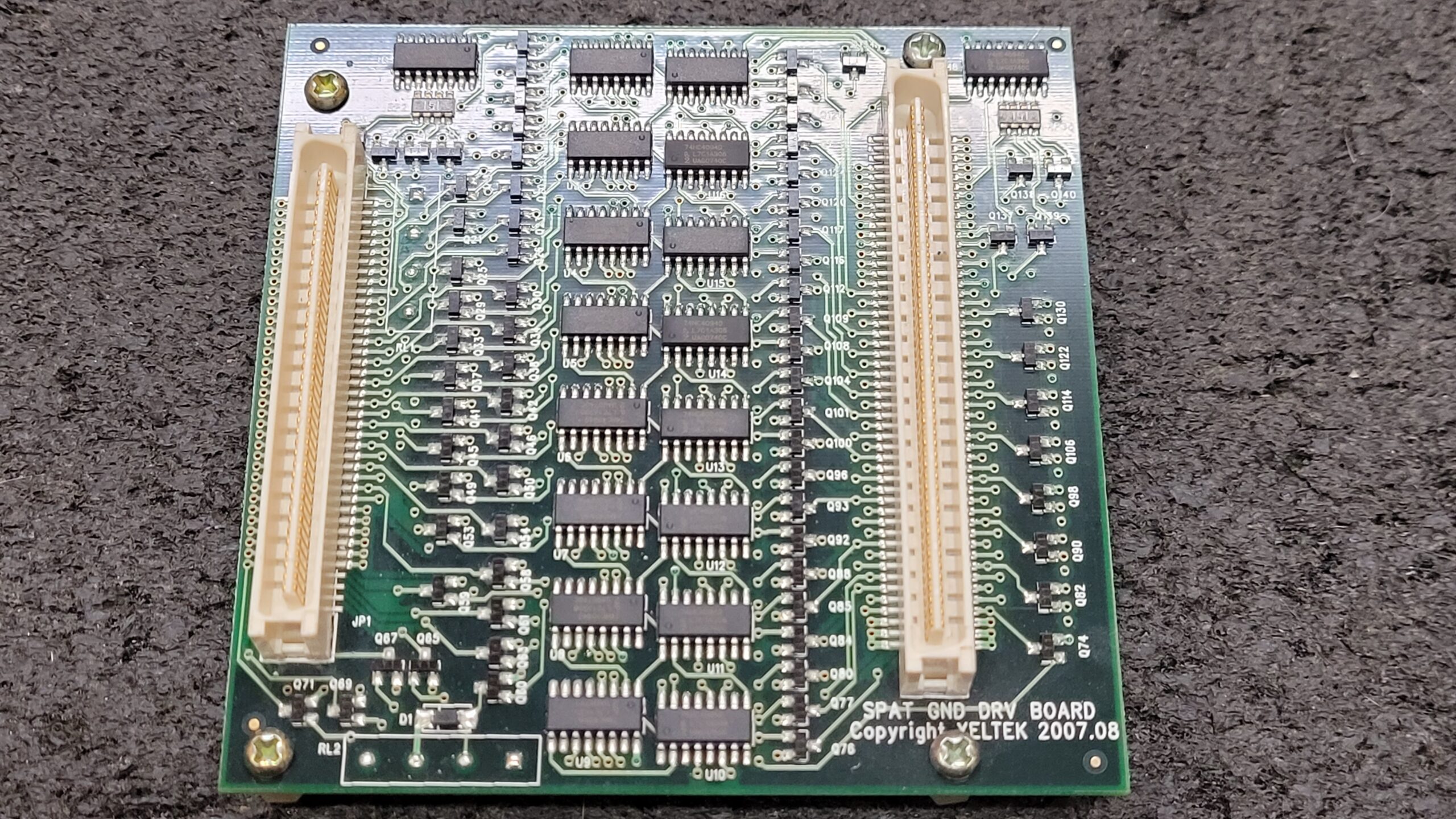

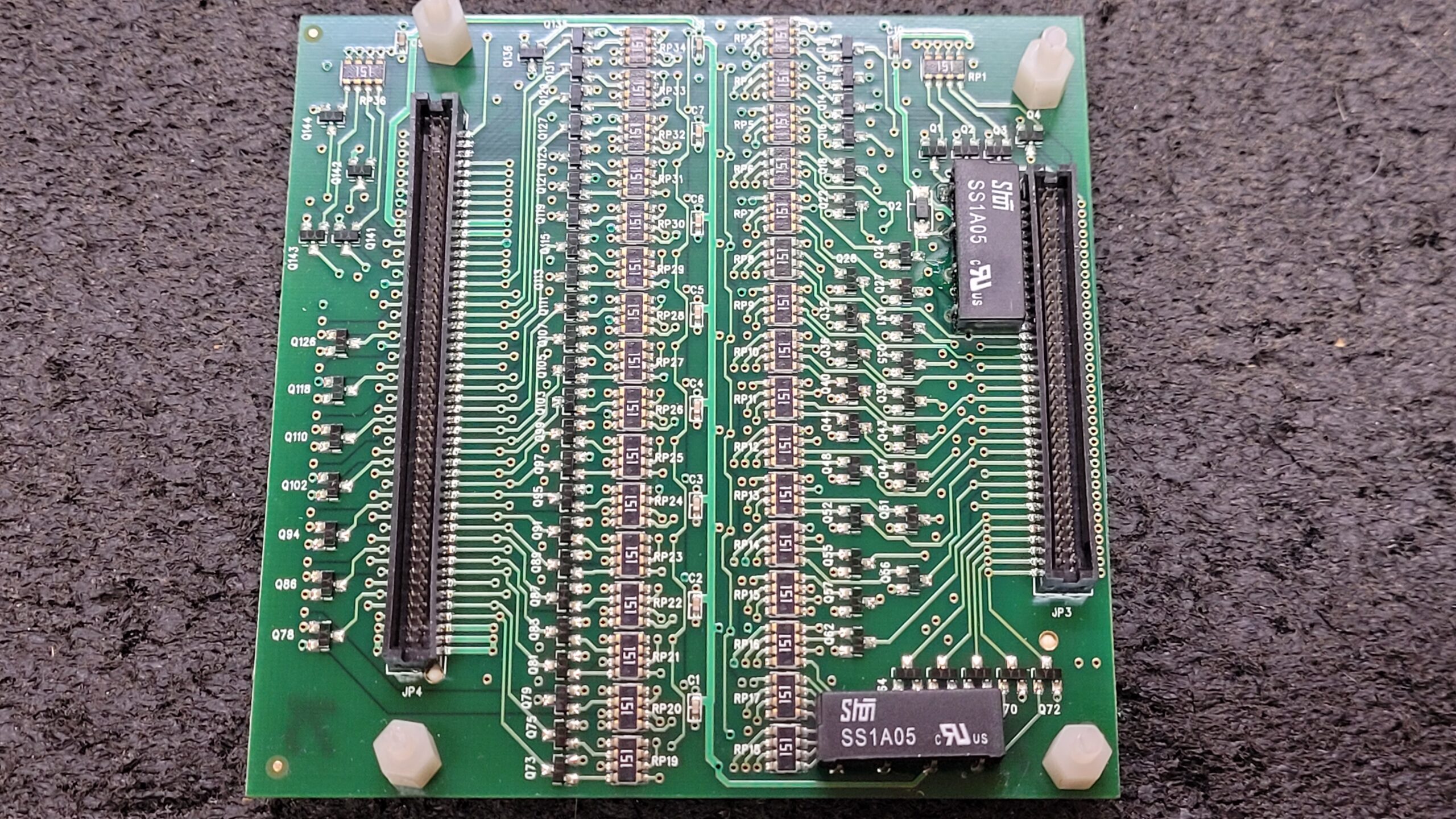

GND Driver Board 2007.08

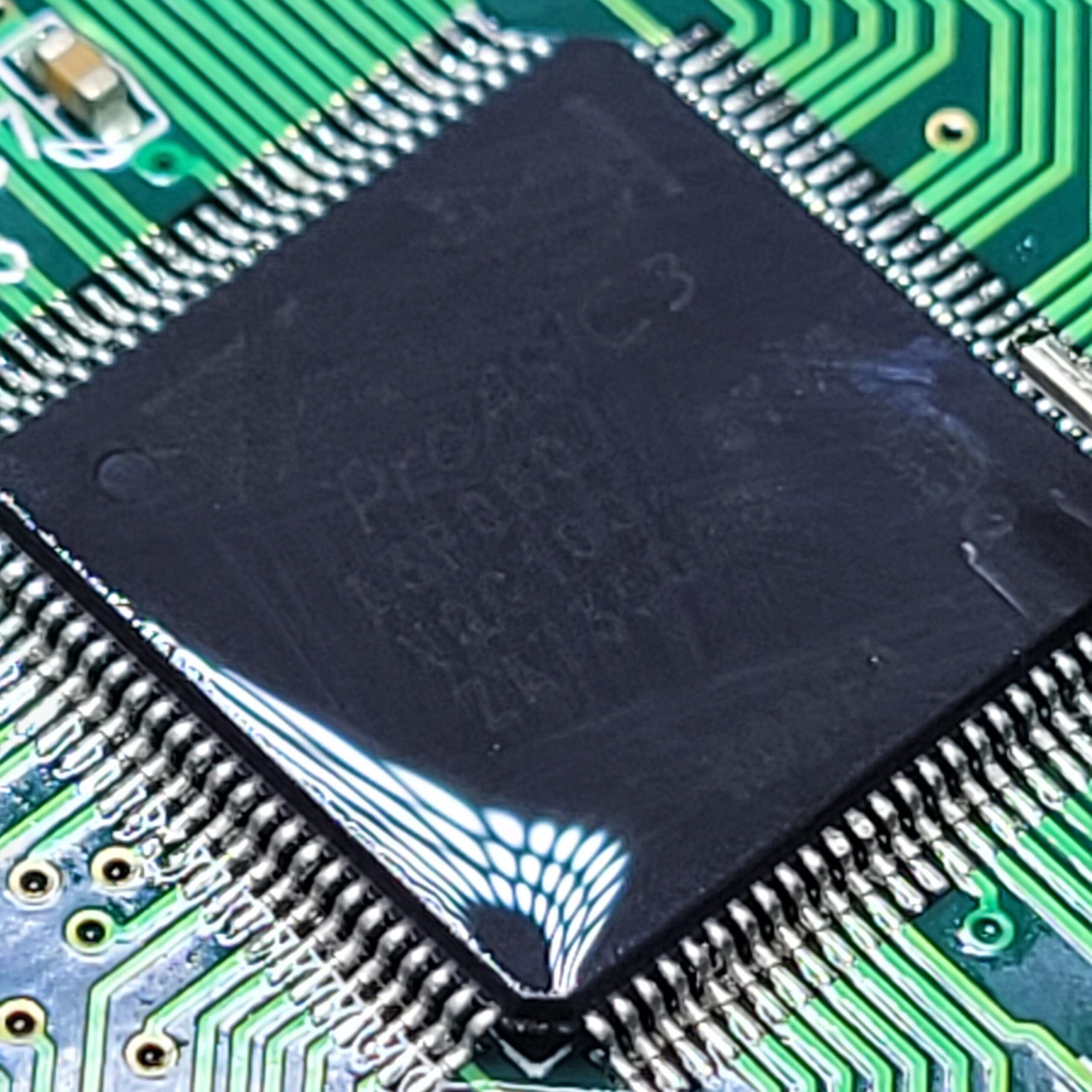

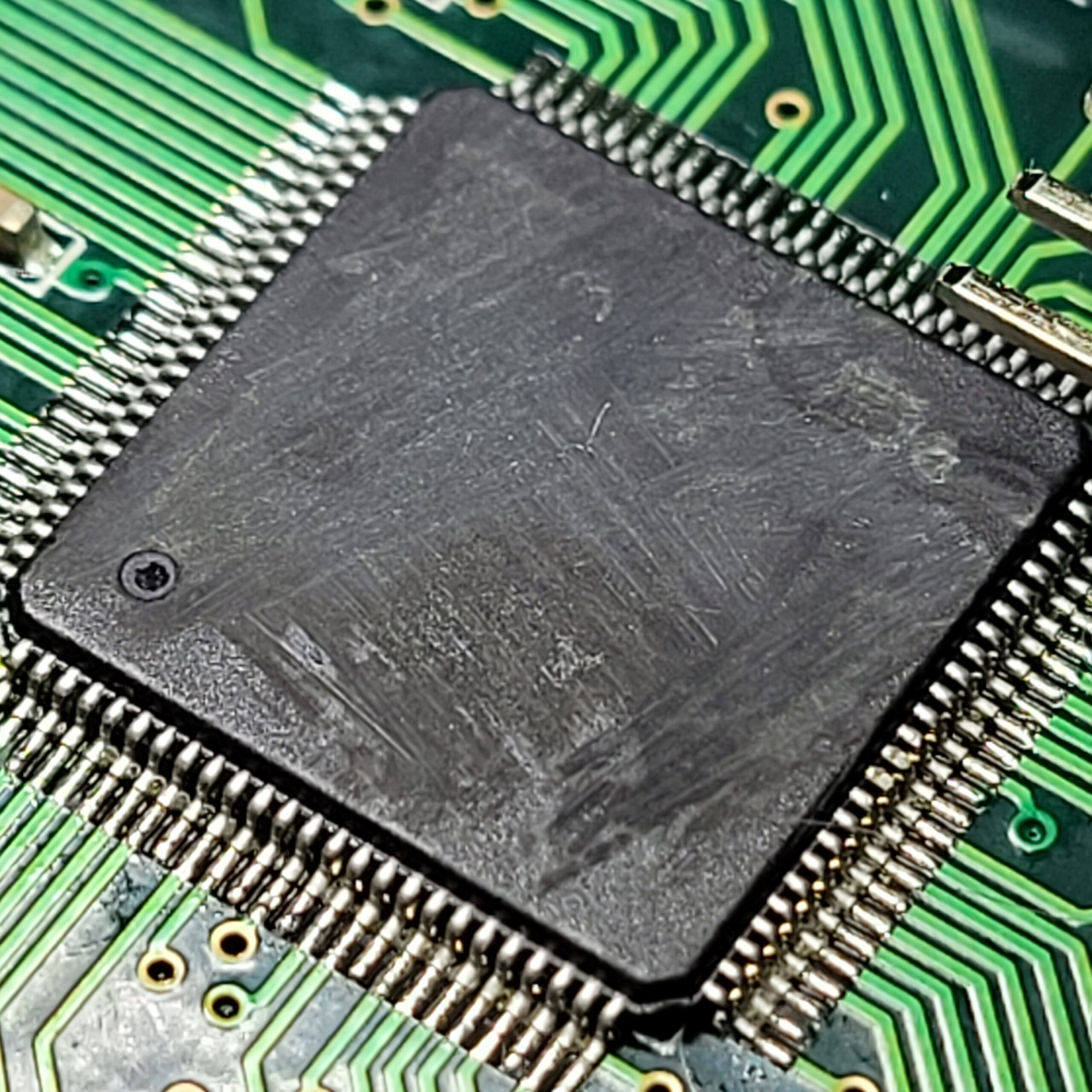

MCU Scratched Off Chip.. Just a little bit of IPA and is Revealed an Actel A3P060-VQG100 FPGA Same FPGA in the Xeltek Superpro 7000 and Xeltek Superpro 7500
I removed U7 and U11 and Backed Up The Firmware On the MCU the Actel Chip Cannot Be Backed Up Easily.

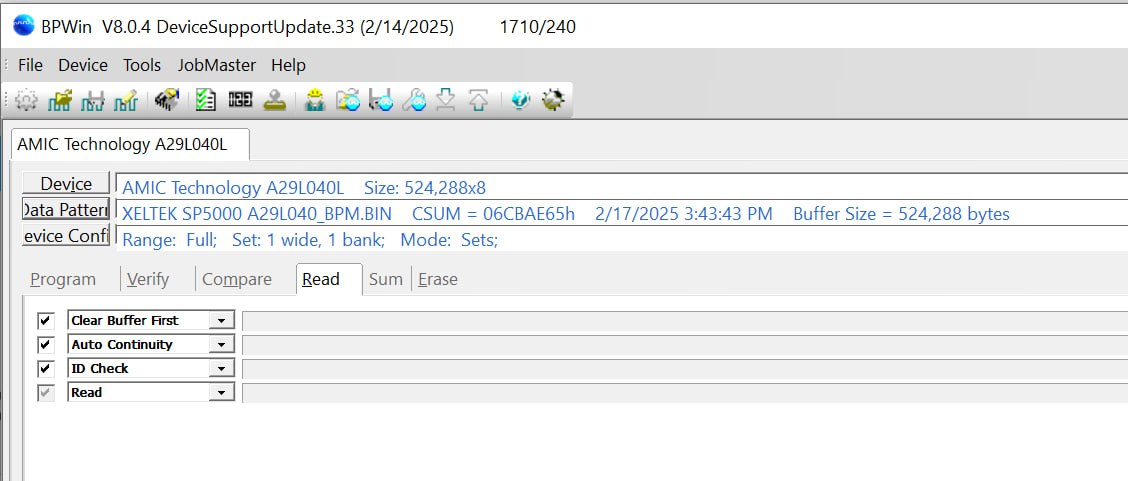

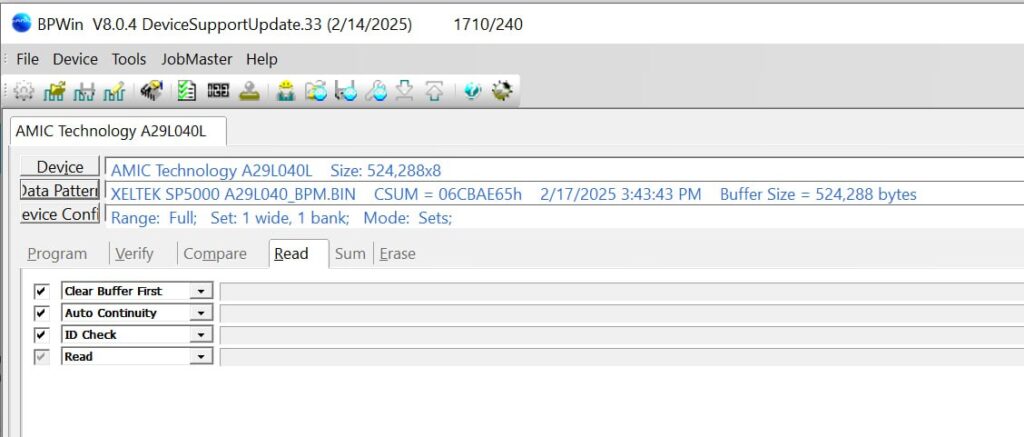

I Used the BPM Microsystems FP-1710 Programmer to Back Up the Firmware. I ahve other Xeltek’s that could ahve dont the Job i just wanted to use the FP-1710
Xeltek Superpro 5000 SP5K PCB Inspection and Reassembly of Board Stack Video.
Last Updated on February 18, 2025 by Steven Rhine
