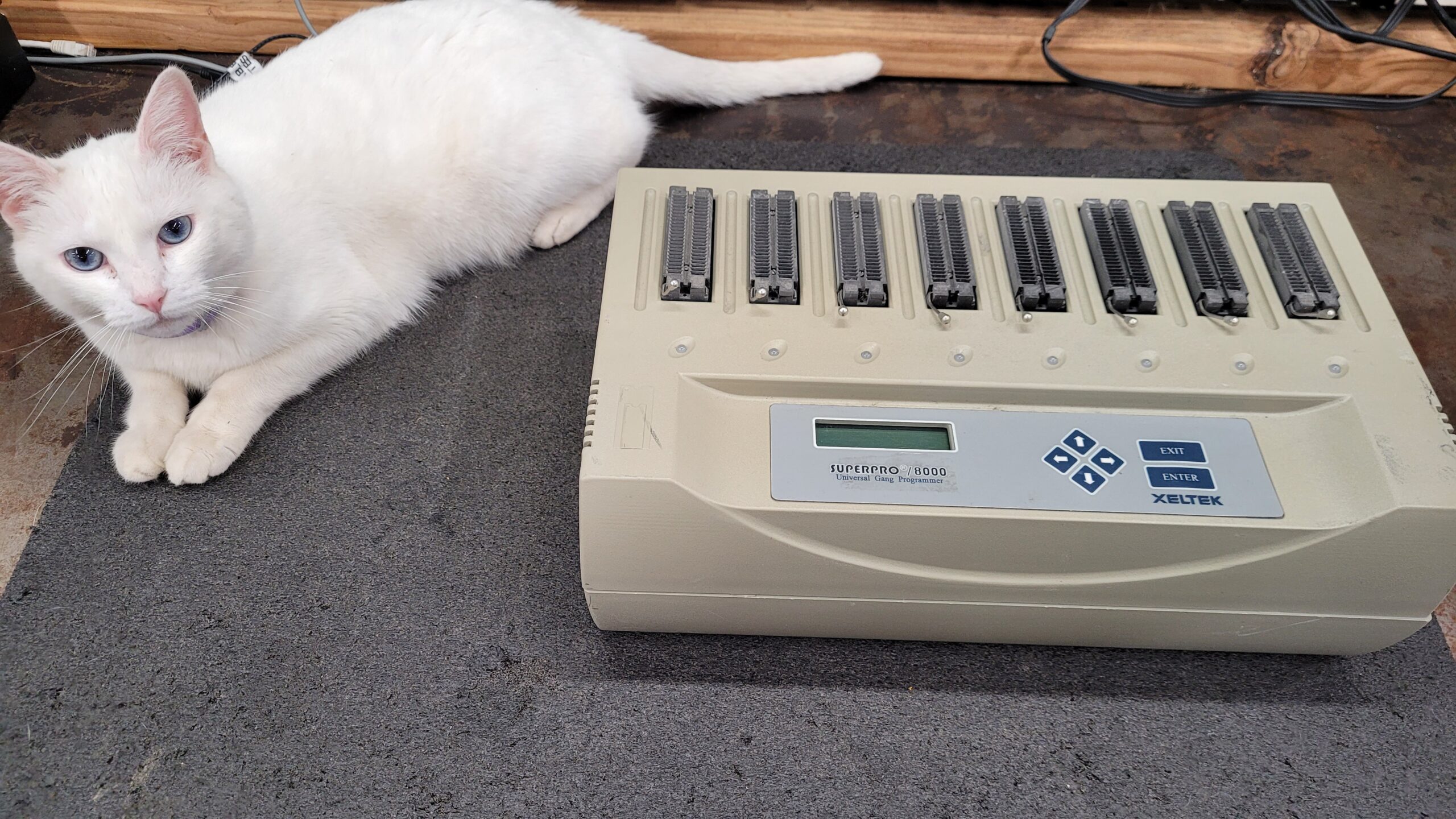

Unboxing Video
Info:

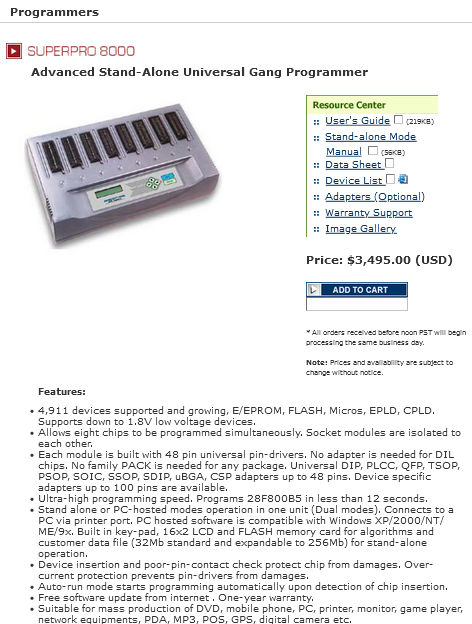

Device List PDF | Device List HTML | Data Sheet | Manual | Software
Features:
- Superpro 8000 Gang Programmer supports 5,179 devices and growing, including EPROM, EEPROM and Flash memory, PIC, AVR and other popular microcontrollers and PLDs. Supports down to 1.8V low voltage devices.

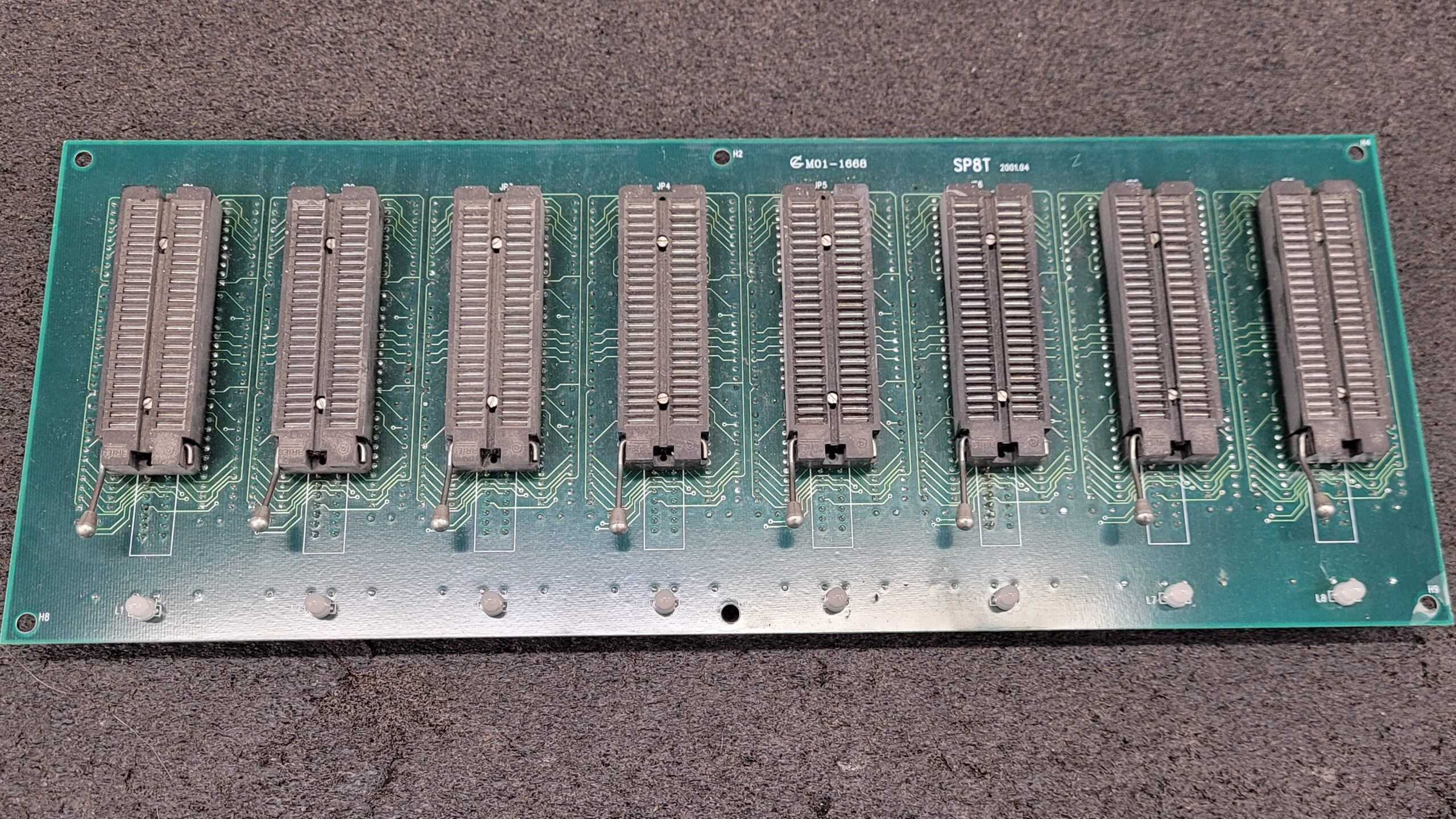

- Superpro 8000 Gang Programmer allows eight chips to be programmed simultaneously. Socket modules are isolated to each other.
- Each module is built with 48 pin universal pin-drivers. No adapter is needed for DIL chips. No family PACK is needed for any package. Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP, uBGA, CSP adapters up to 48 pins. Device specific adapters up to 100 pins are available.
- Ultra-high programming speed. Programs 28F800B5 in less than 12 seconds.
- Stand alone or PC-hosted modes operation in one unit (Dual modes). Connects to a PC via printer port. PC hosted software is compatible with Windows XP/2000/NT/ME/9x. Built in key-pad, 16×2 LCD and FLASH memory card for algorithms and customer data file (32Mb standard and expandable to 256Mb) for stand-alone operation.
- Device insertion and poor-pin-contact check protect chip from damages. Over-current protection prevents pin-drivers from damages.
- Auto-run mode starts programming automatically upon detection of chip insertion.
- Superpro 8000 Gang Programmer provides free software update from internet . One-year warranty.
- Suitable for mass production of DVD, mobile phone, PC, printer, monitor, game player, network equipments, PDA, MP3, POS, GPS, digital camera etc.
- Power supply : Input 100V-240VAC,Output 5VDC, 12VDC, 24VDC.
- Cable: DB-25 one-one (0.8m long)
- Programmer Dimension : 390(L) x 230(W) x 130(H) mm
- Package : 530(L) x 310(W) x 210(H ) mm
- Shipping Weight : 6 Kg
Power Plug Pinout (Soon)

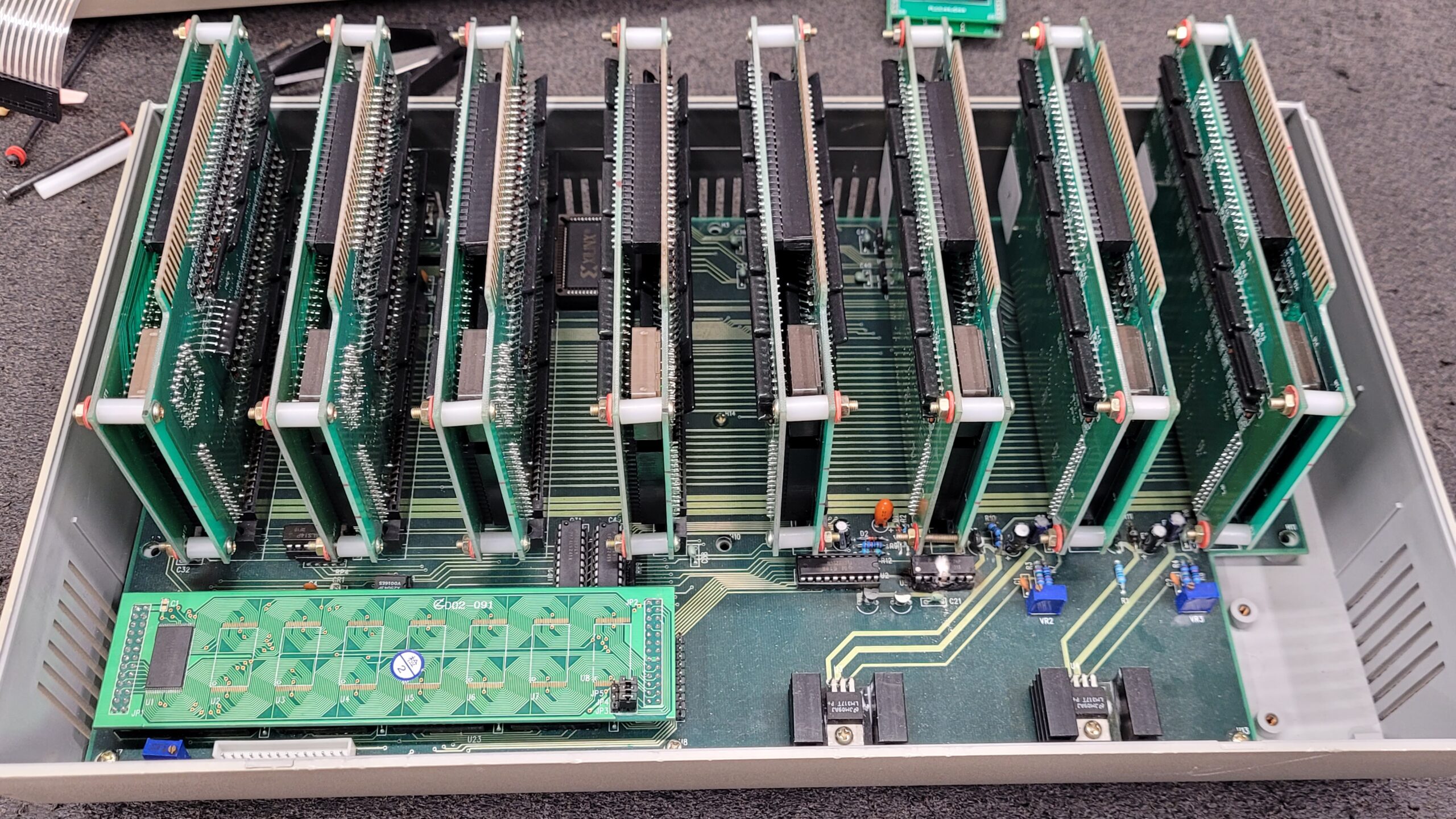

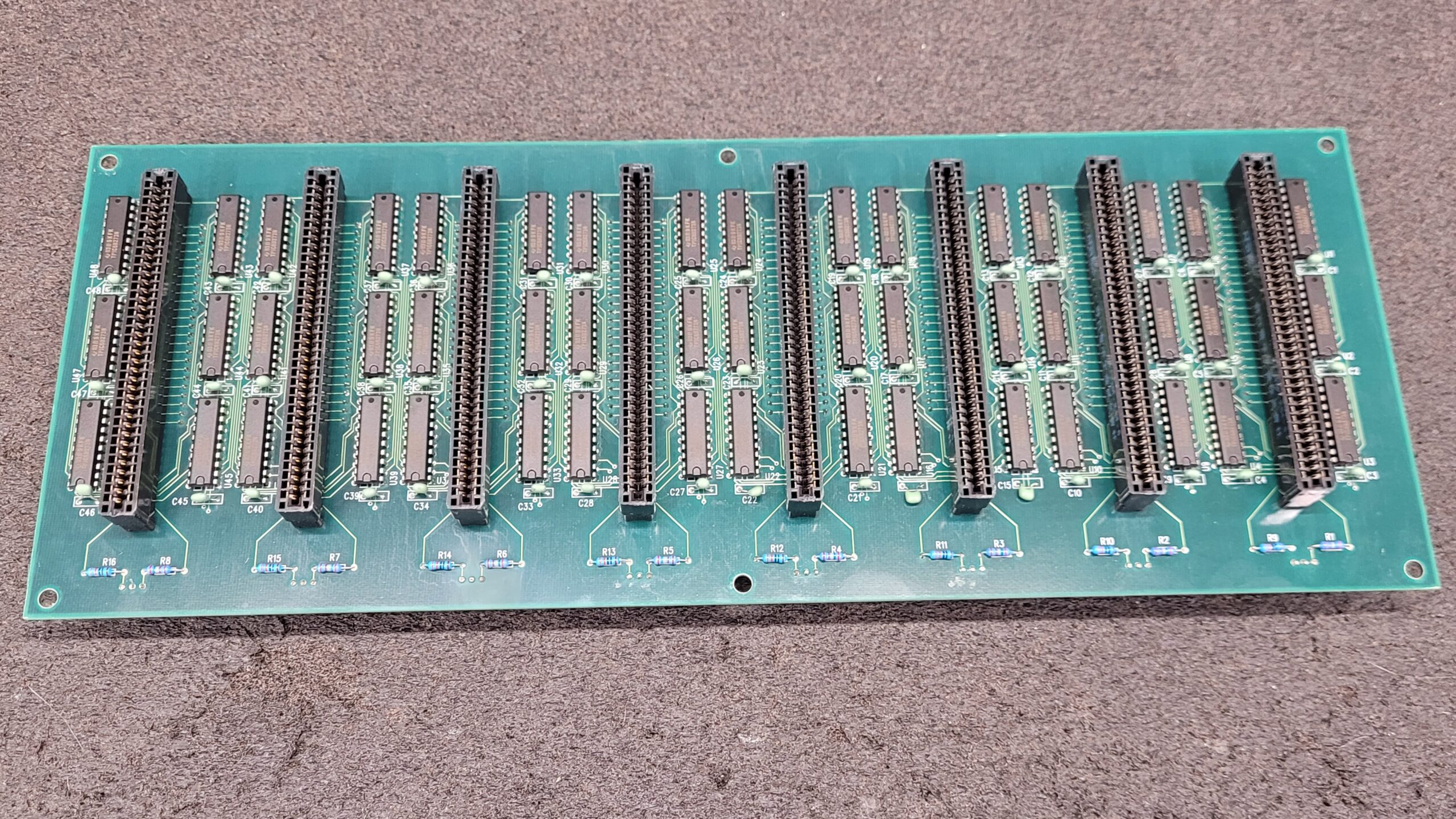

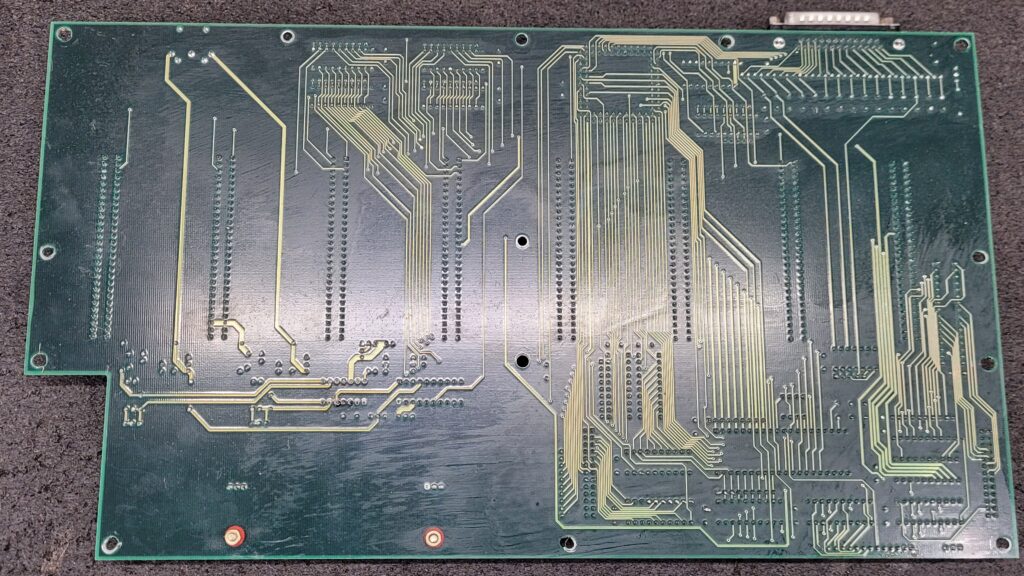

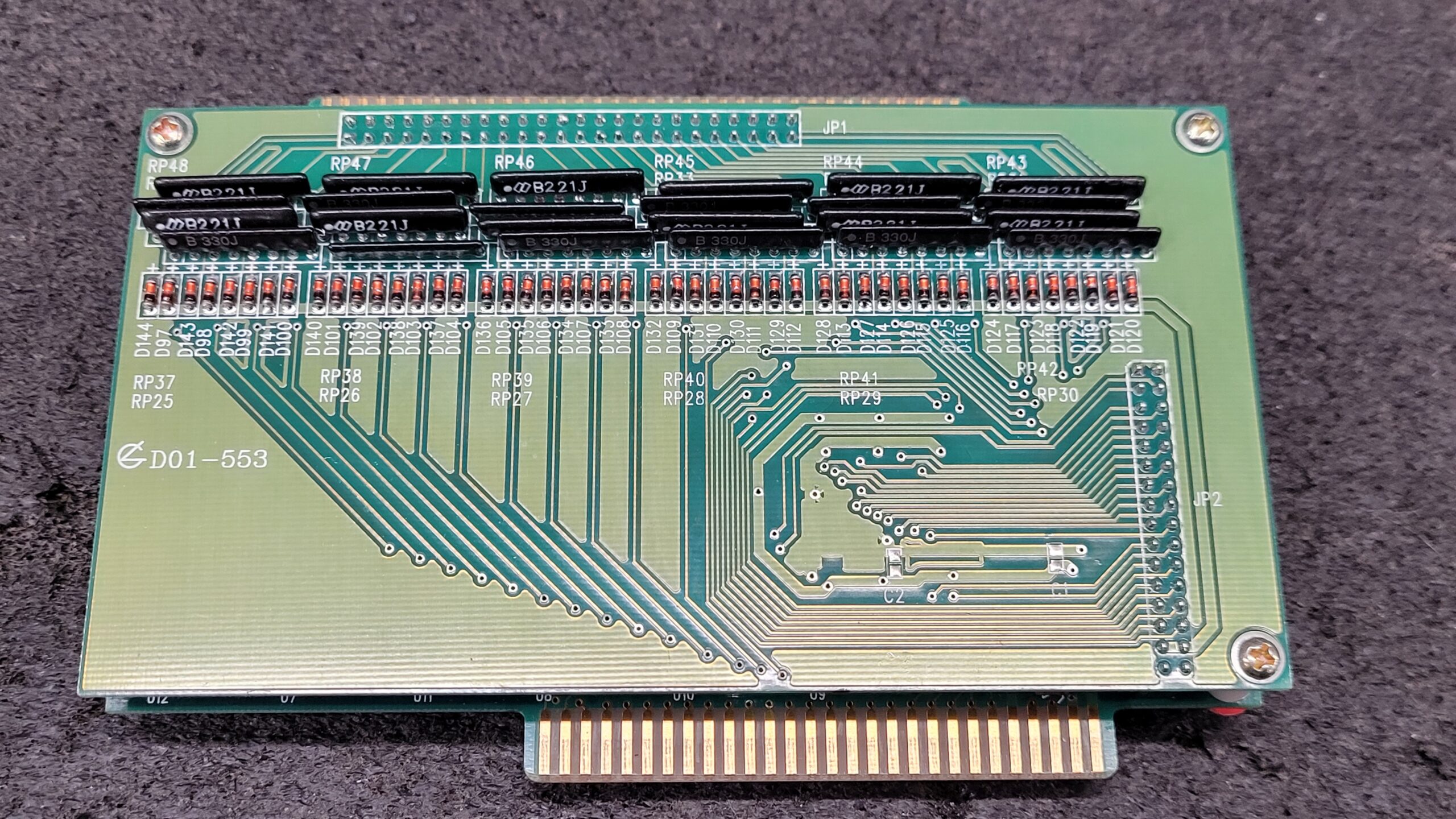

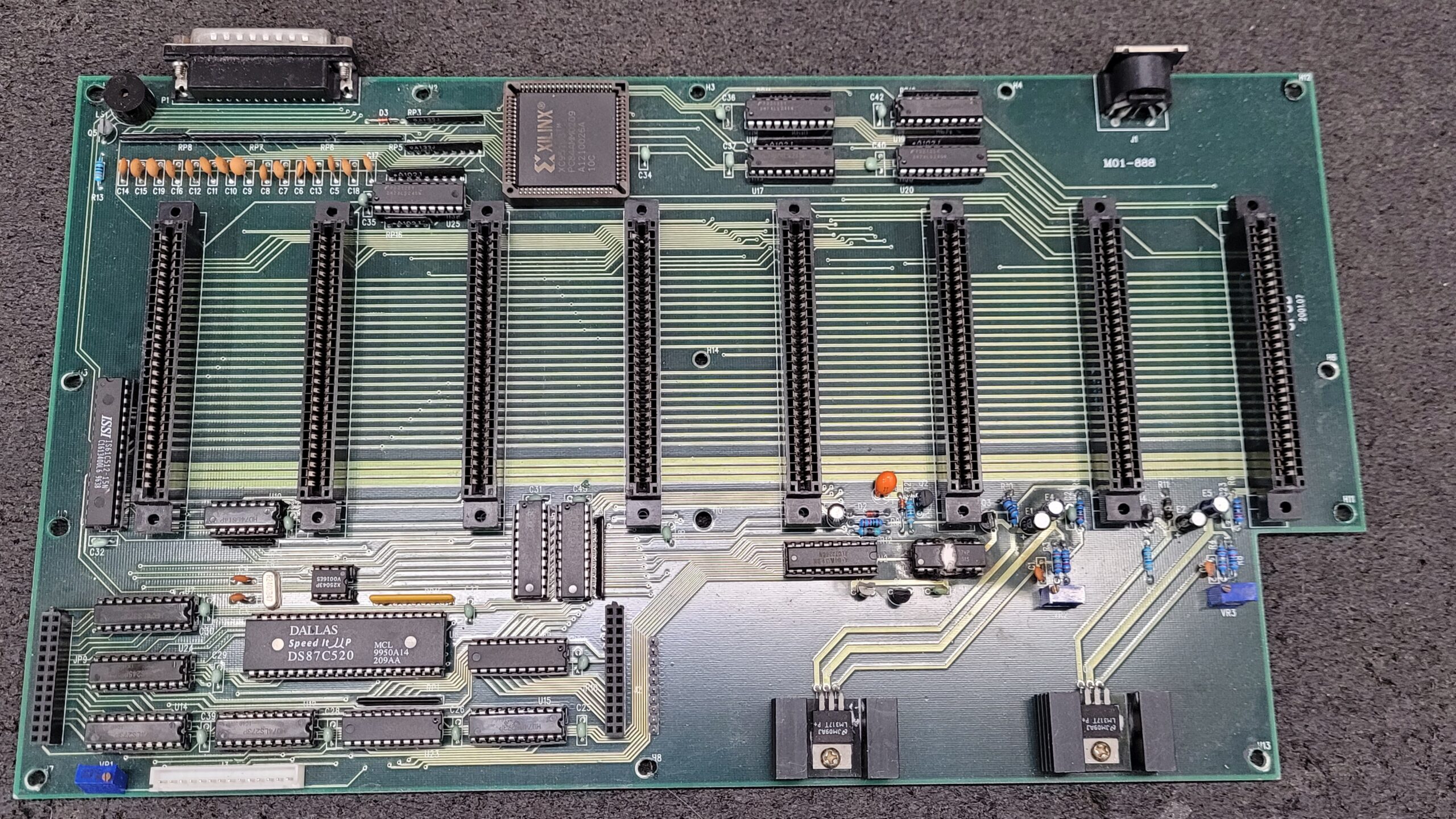

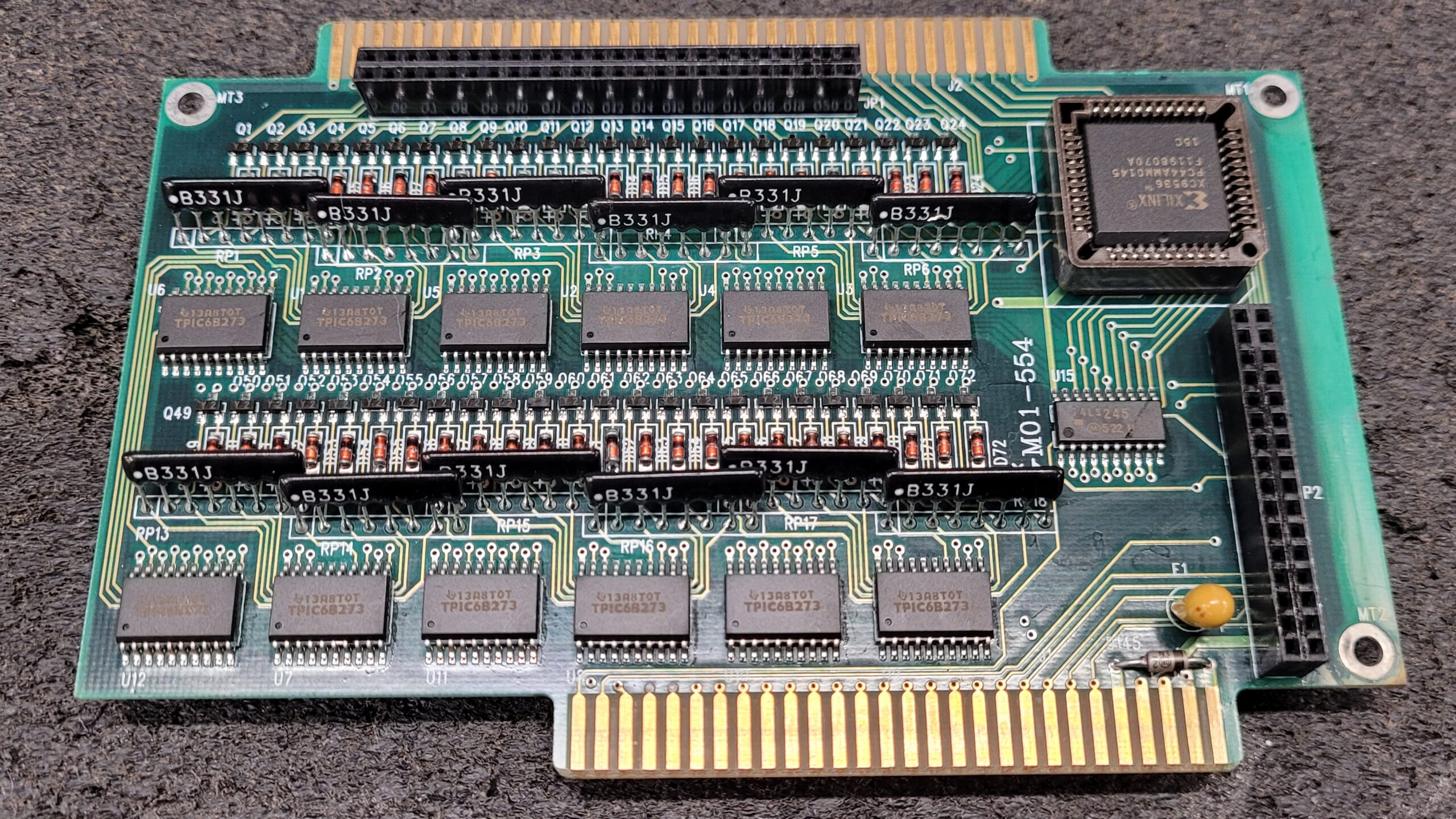

Teardown Soon..
