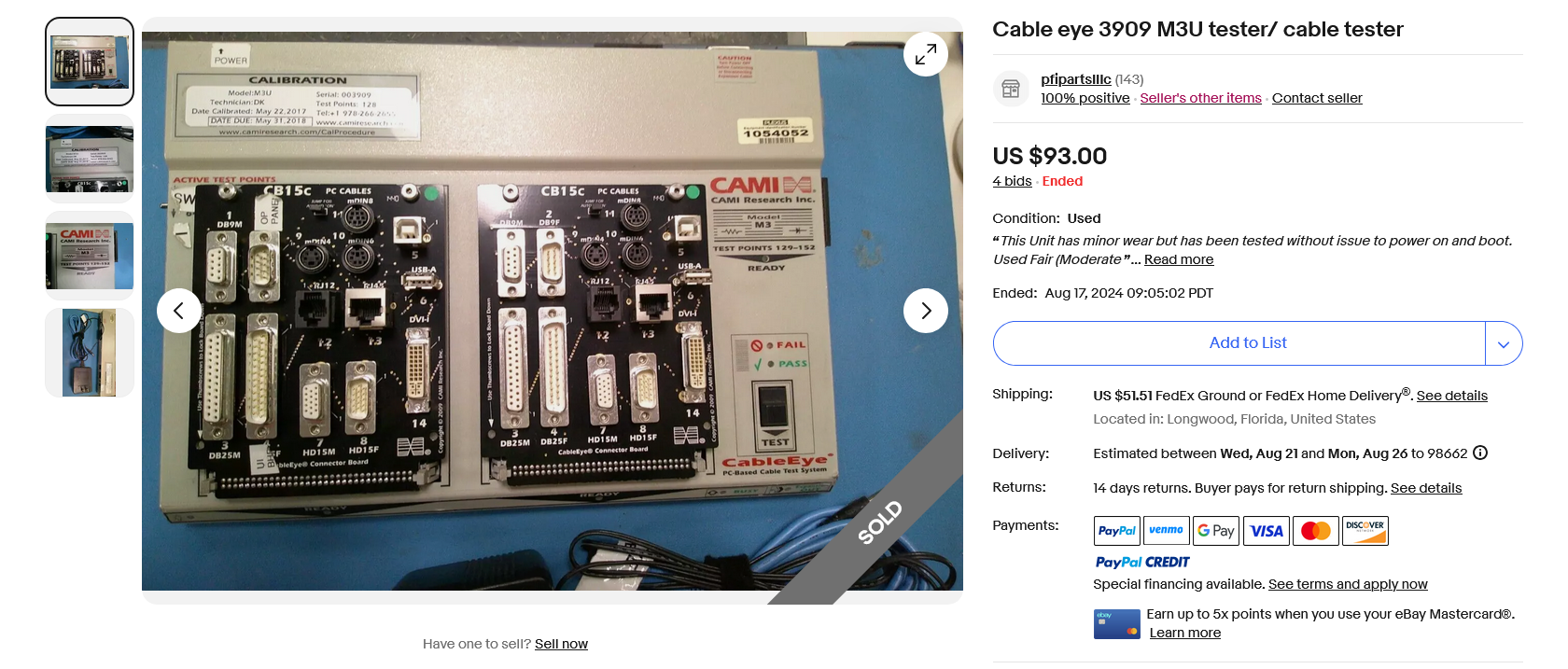

I initially settled for an Cami Research Cableeye M2 just to test the cables I ordered for the Miller TIG Welder Pulser and Sequencer Boards. However, I’ve been on the lookout for a more comprehensive way to test resistance and diodes in various cables. I still had my eye on the Cami Research CableEye M3U, M3Z, or M4, which all seemed ideal for the job. After some time searching and losing bids on other units, a clean-looking M3U finally popped up for sale. The shipping was a bit crazy at $51.51—almost amusing if it had been $51.50! Despite that, I placed my bid, and guess what? I ended up as the highest bidder! Typically, items crazy high shipping costs scare off other bidders. Now, having two of these testers will definitely come in handy. I’m eager to put this one to good use and ensure it earns its keep.
Aug 17th 2024, I made my ownership transfer request, Lets hope that I get the latest version of software available.

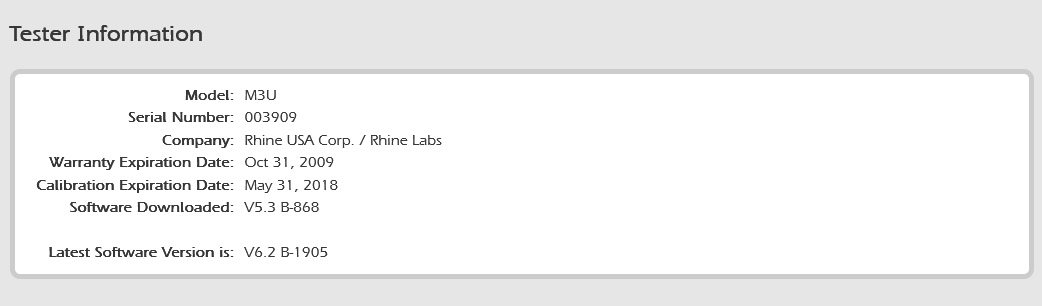

On August 20th, I received a reply from Cami Research—they were a bit busy on Monday, but they assured me the software would be ready when the M3U arrives, with an ETA between Wednesday the 21st and Friday the 23rd. Later that evening, around 7 p.m., I received an email confirming that the ownership transfer was complete and the software was ready. Unfortunately, it’s still the older V5.3 software, but at least it’s newer than what I have on the M2. The latest version is V6.2, so I’m a bit behind, but it’s still an improvement.
Exciting the Cami Research M3U Arrived.
Unboxing and Initial Testing.
Unit Seems to function Fine Here is the Info Form The Software. Unit Has Firmware Version 1.19
Cami Research CableEye M3U Cable Tester Teardown Video:

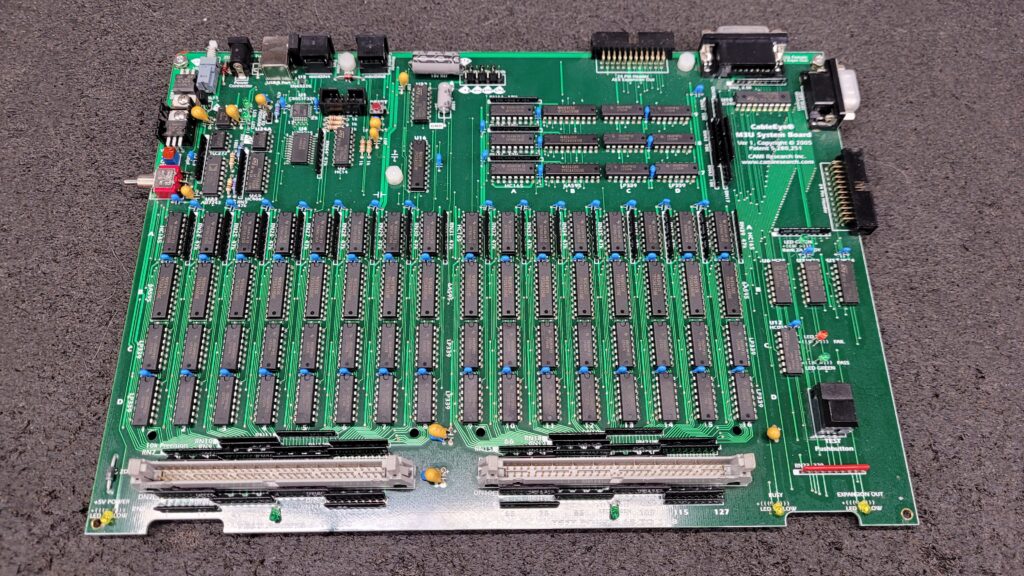

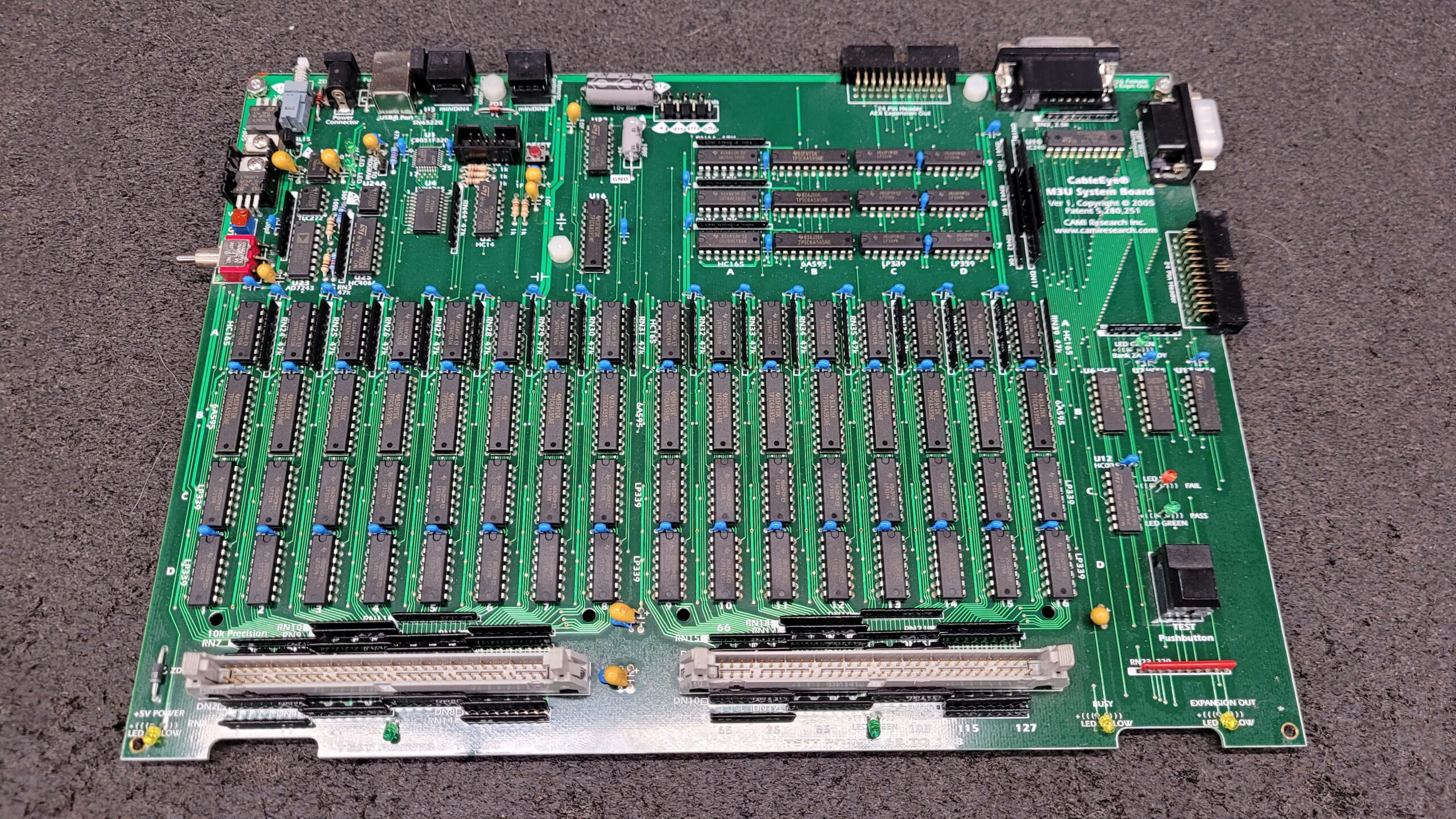

Cami Research CableEye M3U Cable Tester Main Board Top, Notice the Patent. This Patent Number is showing Expired.
Main Logic Chips 74HC165 | TPIC6A595 | LP339

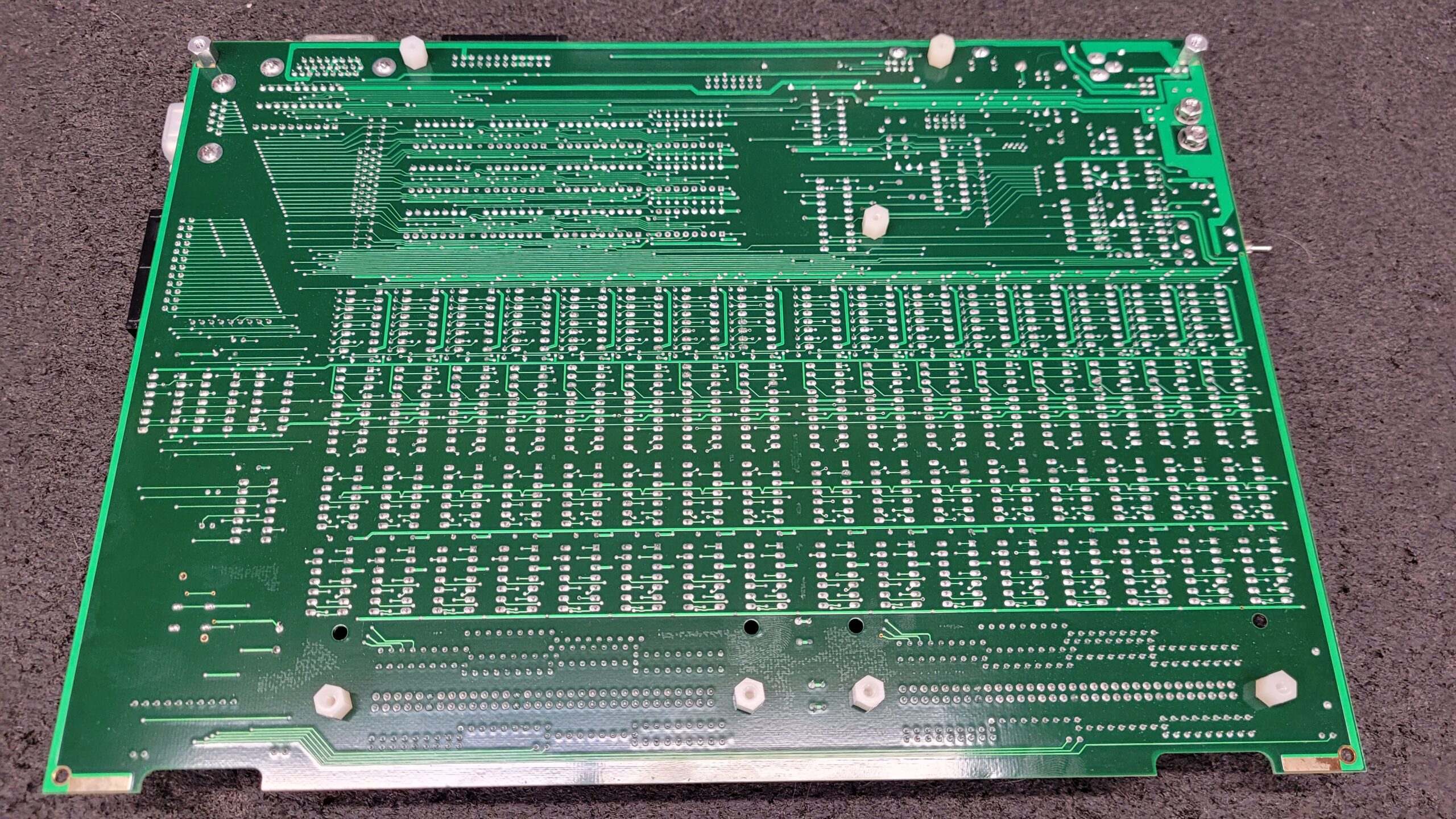

Cami Research CableEye M3U Cable Tester Main Board Bottom
Cami Research CableEye M3U Cable Tester Teardown Close Up Photos (Soon)
Logic Section Of the Cami Research M3U Cable Tester, The Header is a Header Lets Investigate it.

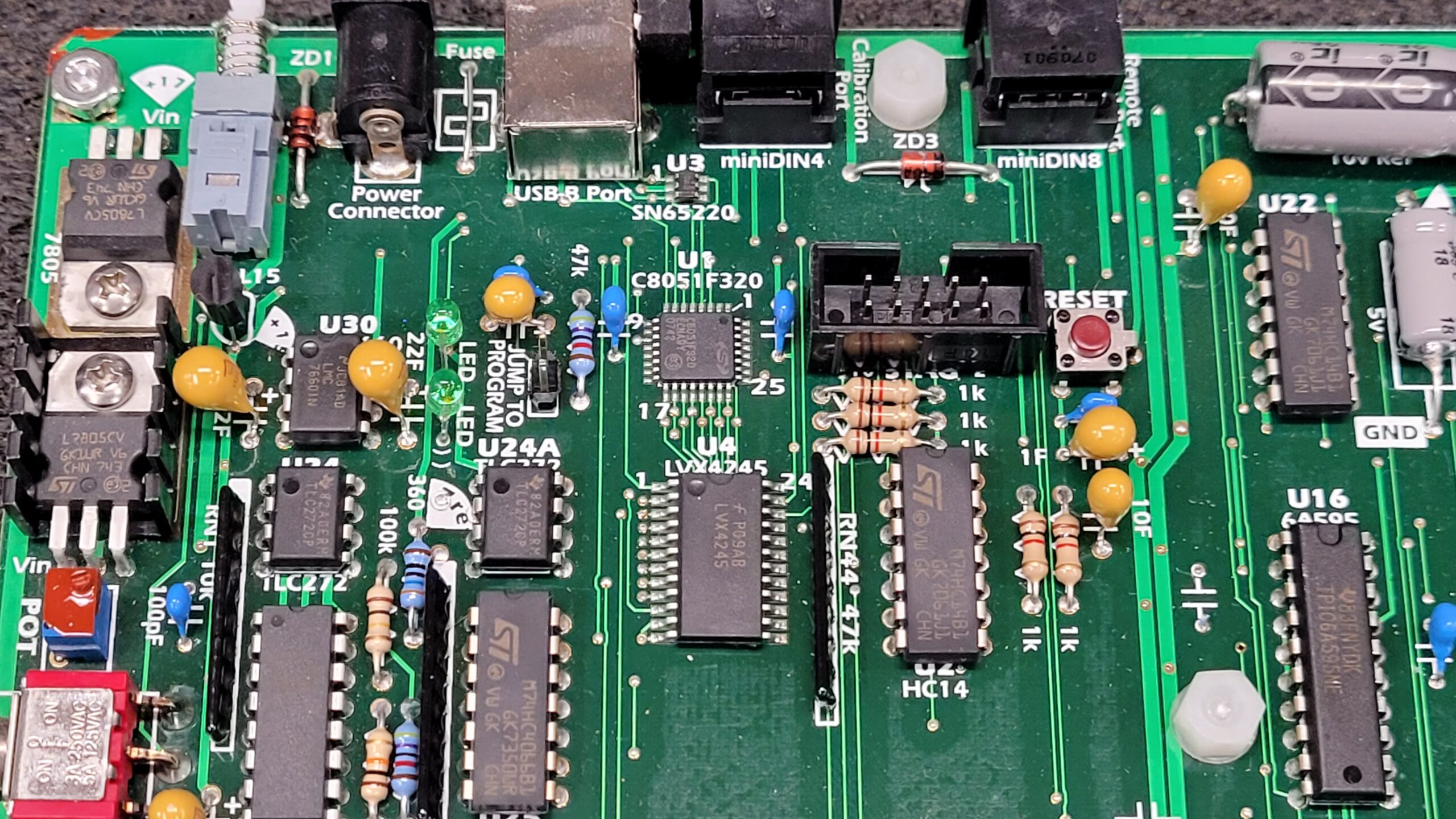

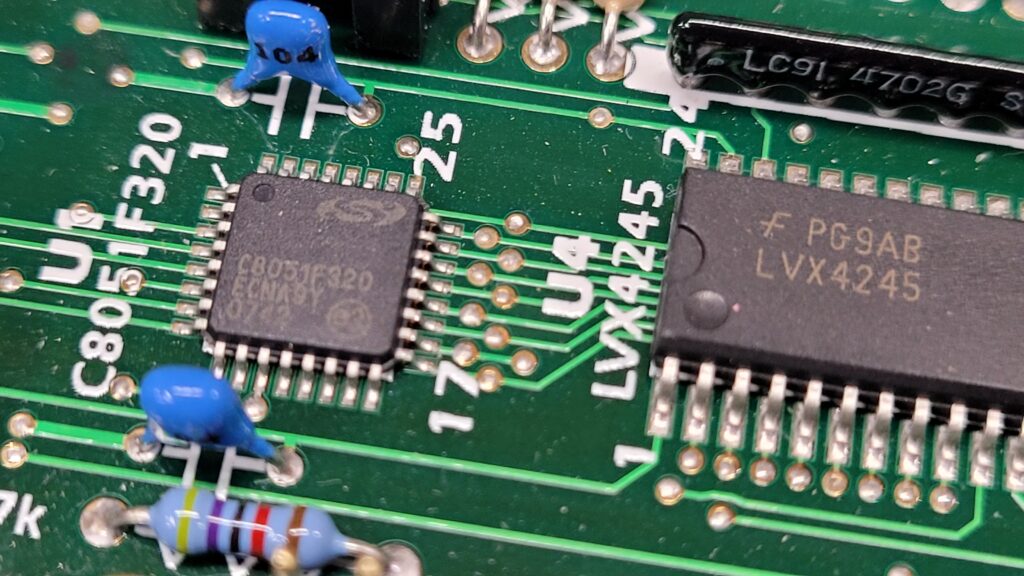

Cami Research Cable Eye M3U Is Controlled With a Silicon Labs C8051F320 MCU Looking thru the Data Sheet this target uses an uncommon C2 interface for In system Programming.

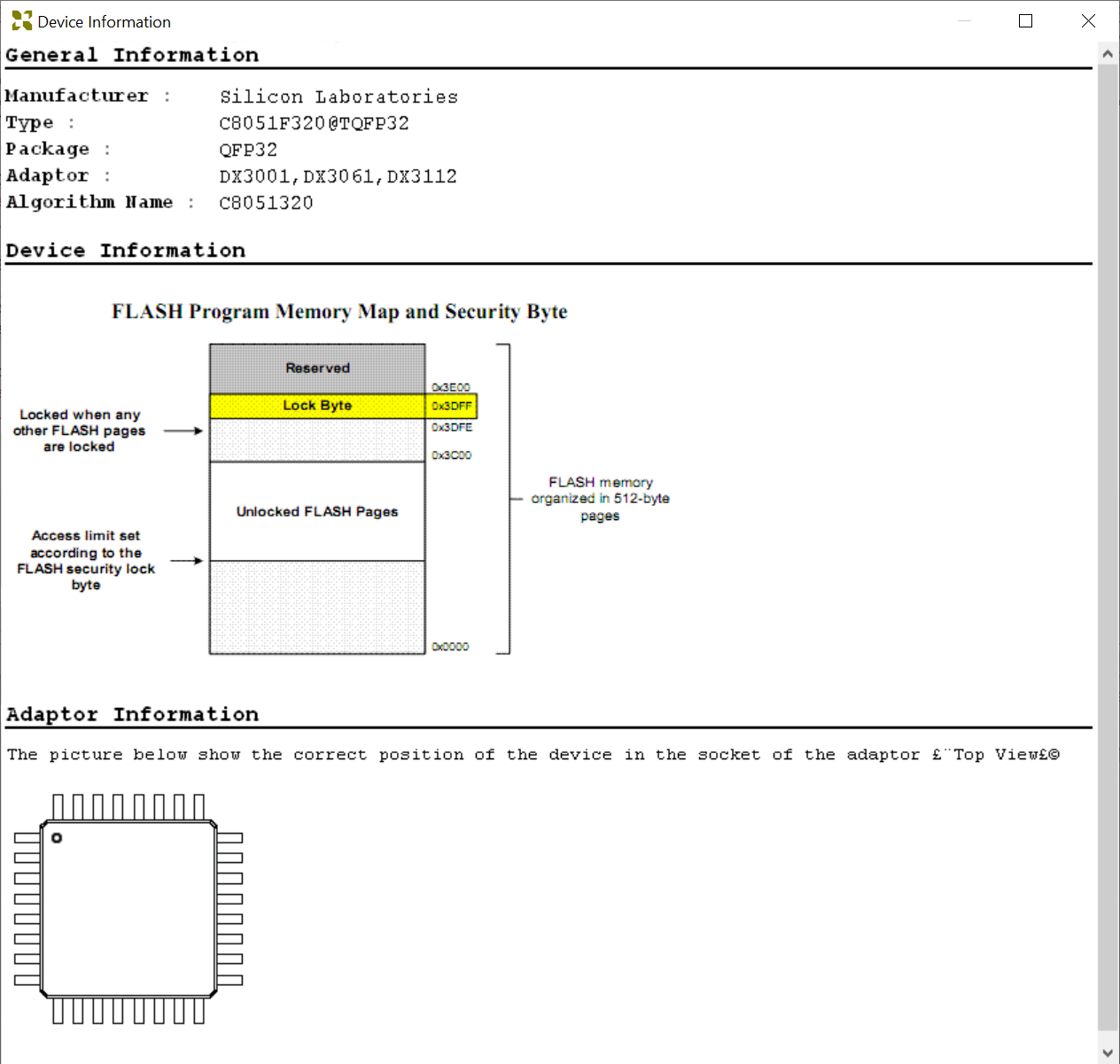

I Checked My Xeltek IS01 It Supports the Silicon Labs C8051F320 MCU.
Required Pins For Programming The Silicon Labs C8051F320 MCU With the Xeltek IS01 We Require GND, VCC, C2D, VDD, RST/C2CK

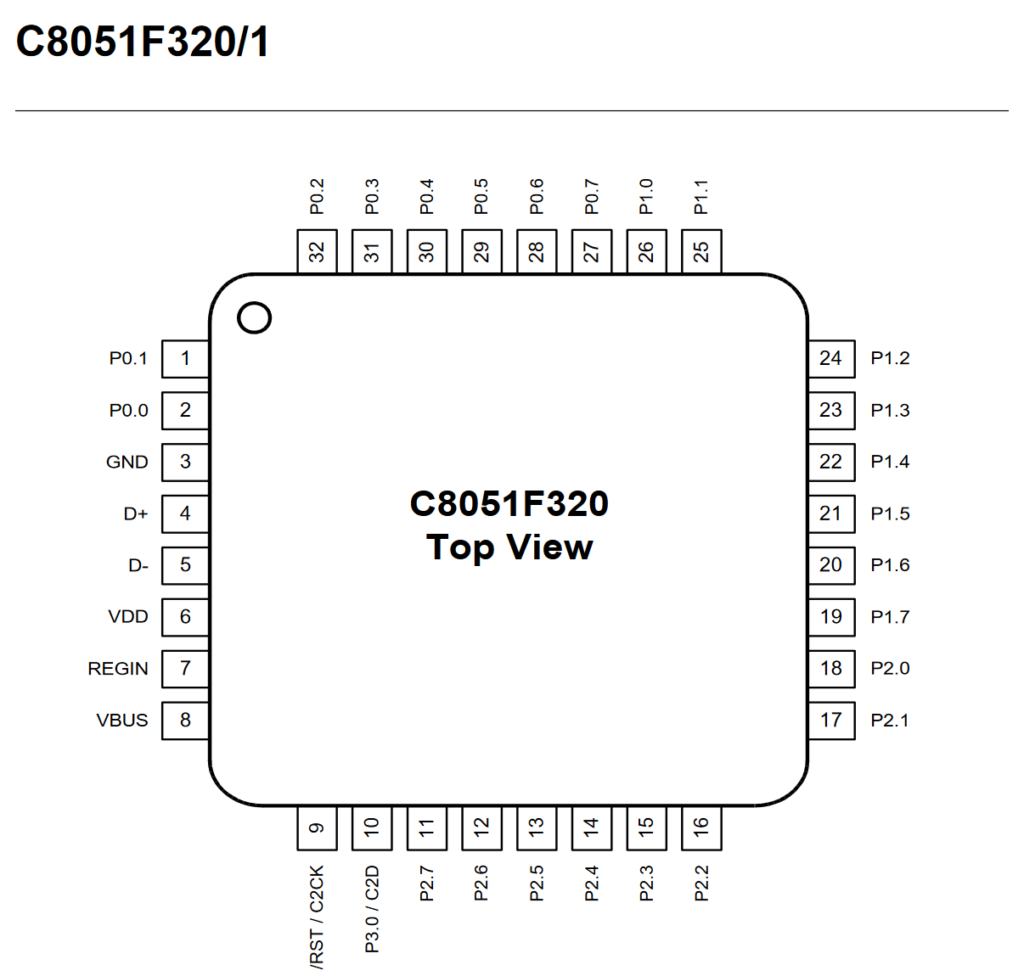

Look at the Data Sheet And the Pin Outs Section. The Pins We Need for In System Programming Are
VDD Pin 6
GND Pin 3
C2D Pin 10
RST/C2CK
Will Check for Continuity On the Header.

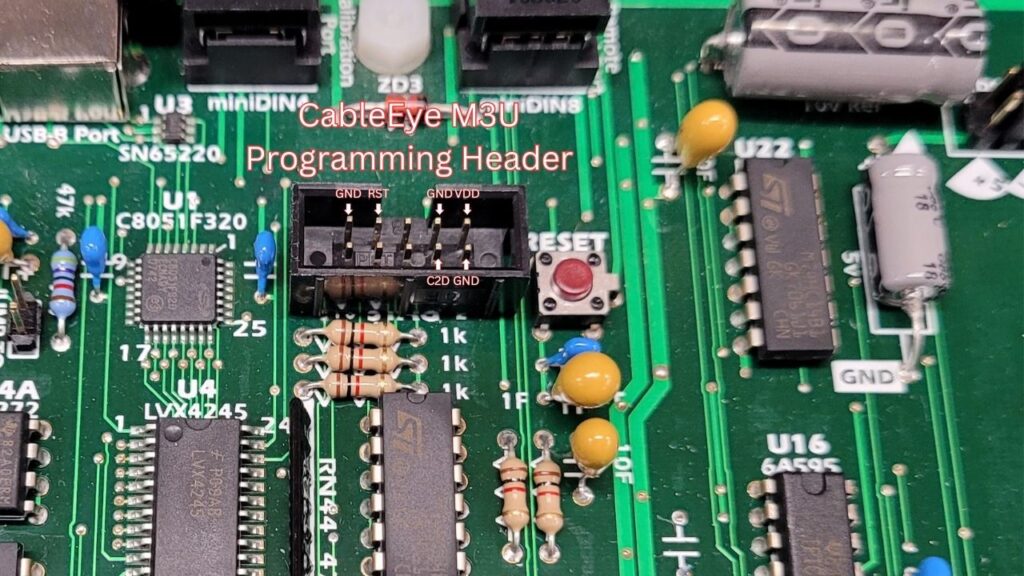

Programming Headder Pin Out.
The Pins Required
Pin 1, VCC
Pin 3, GND
Pin 4, C2D
Pin7, RST/C2CK
Standard SiLabs Segger Flasher Pro Pinout
Now the Question is Is Read Protected? Of Will I Be able to Backup This Instruments Firmware?
Cami Research CableEye M3U Cable Tester Firmware V1.19 Backup. (Soon)
I Did Reach out to Cami Research Inquiring if Firmware Version 1.19 was the most recent for the Cable Eye M3U This was their reply. I really do not like it when companies assuem people asking for firmware updates are idiots. Yes we know what firmware updates do LOL. some of us are more then capable to update ourselves.

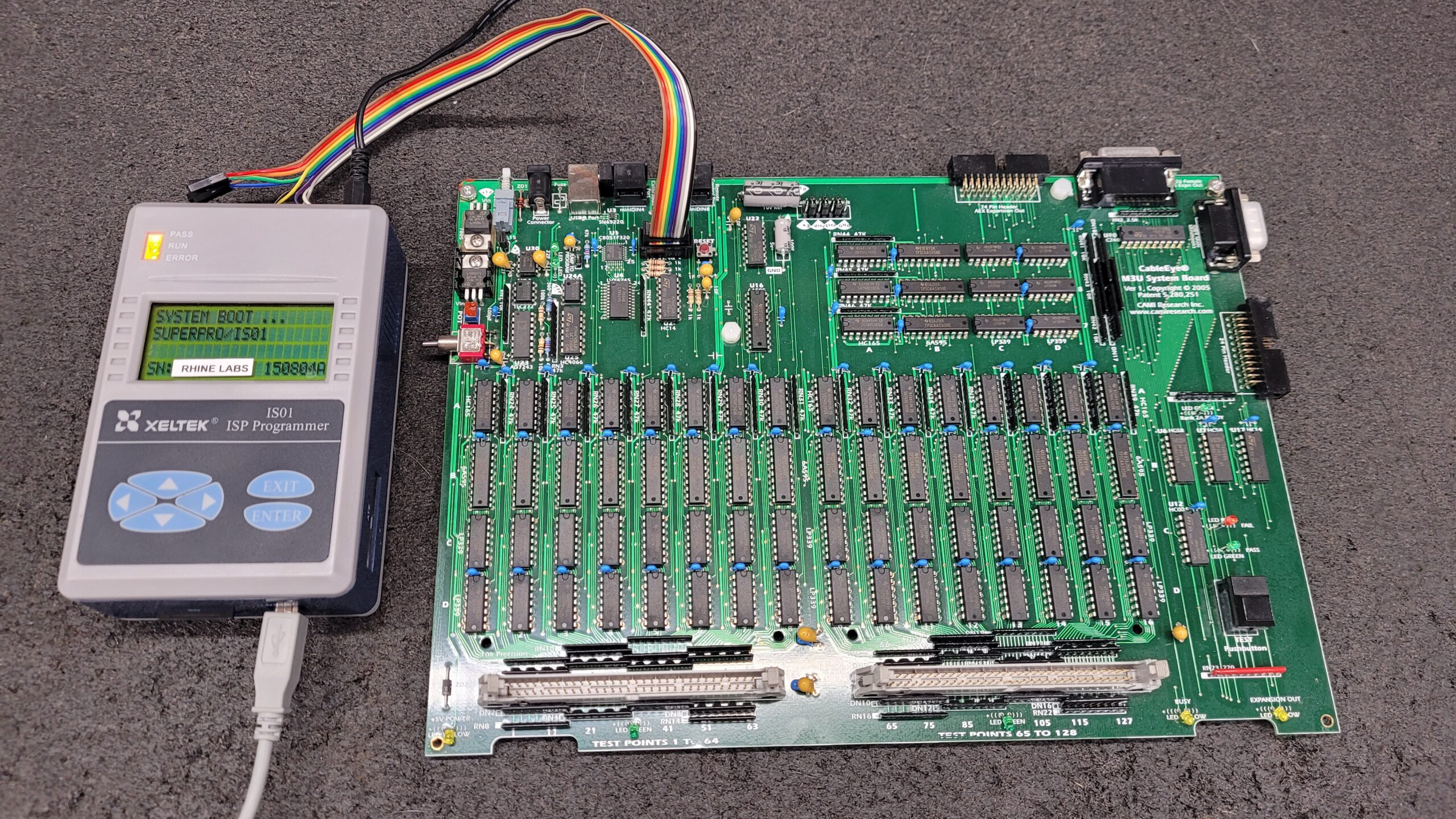

Cami Research Firmware Backup Attempt With Xeltek IS01 In System Programmer Video. (Public Aug 31 2024 4:30Am Pacific Time)
I obtained 2 More if these Cami Research Cableeye M3 M3U Cable Testers…
Ebay Description in very good working condition LOL umm ok! Ebay seller

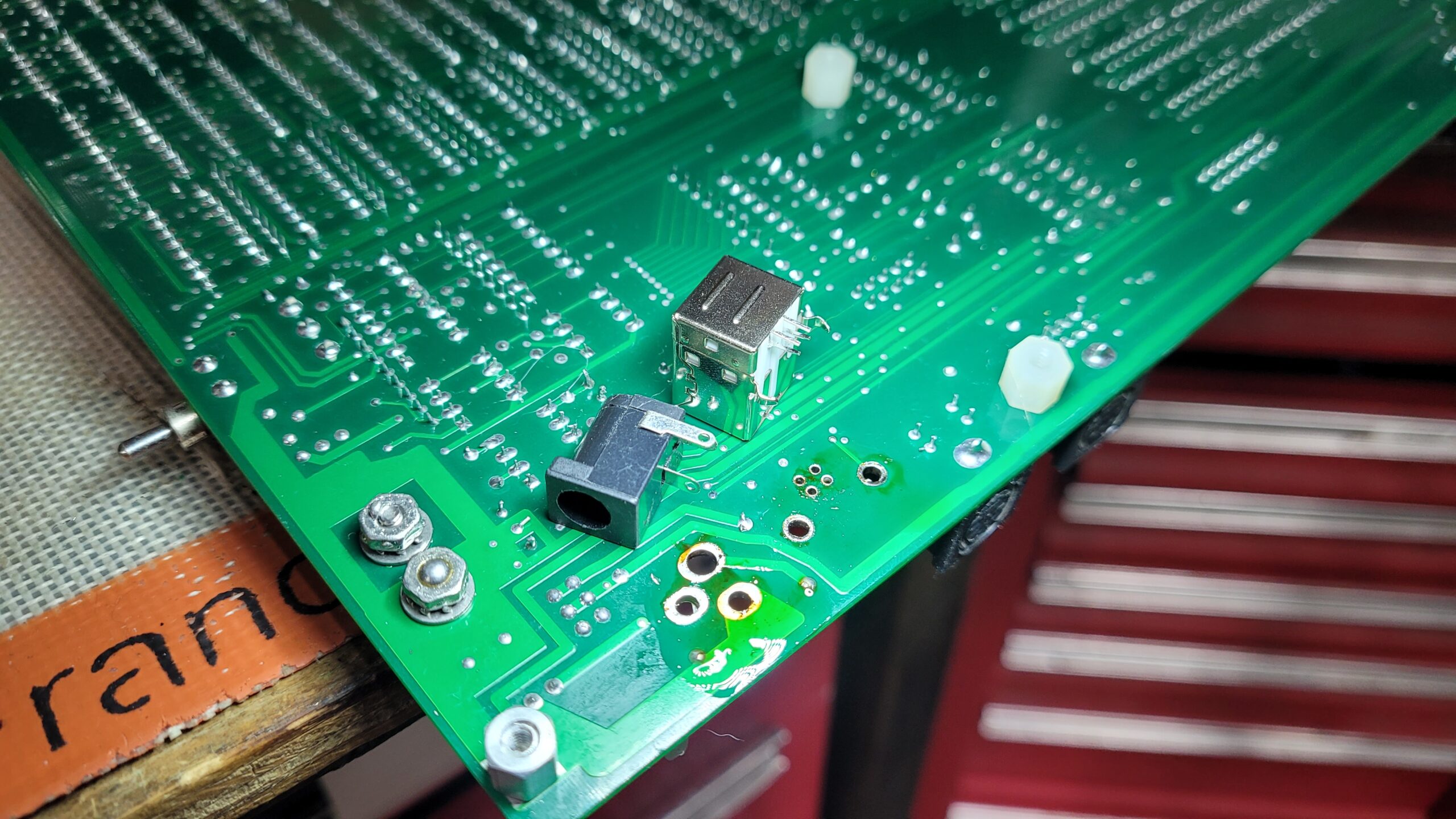

Both units need USB Ports, One Needed a DC Barrel Jack, and One has a Fault. 🙁 looks like I get to investigate. Both are at Firmware V1.19 also.

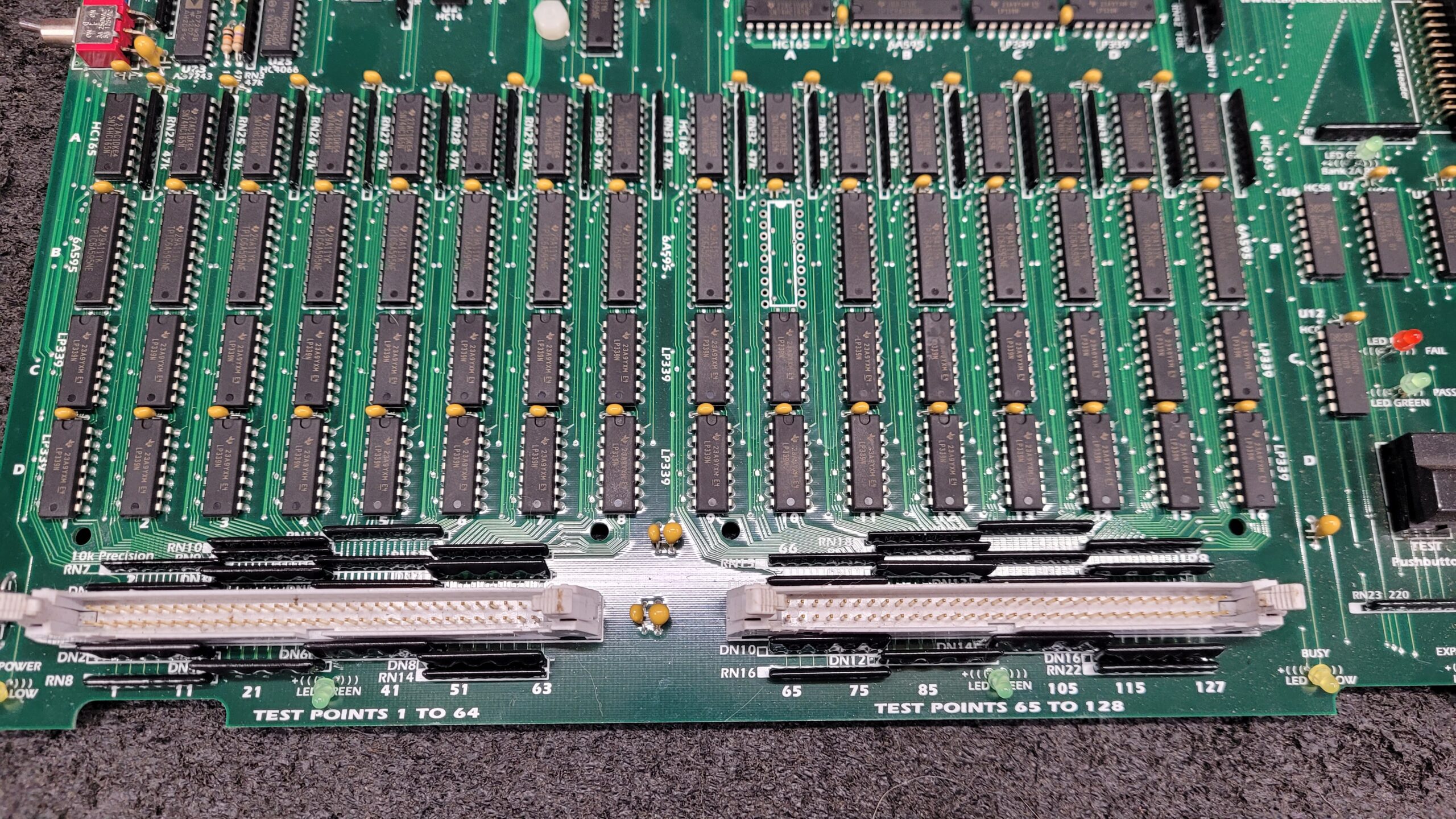

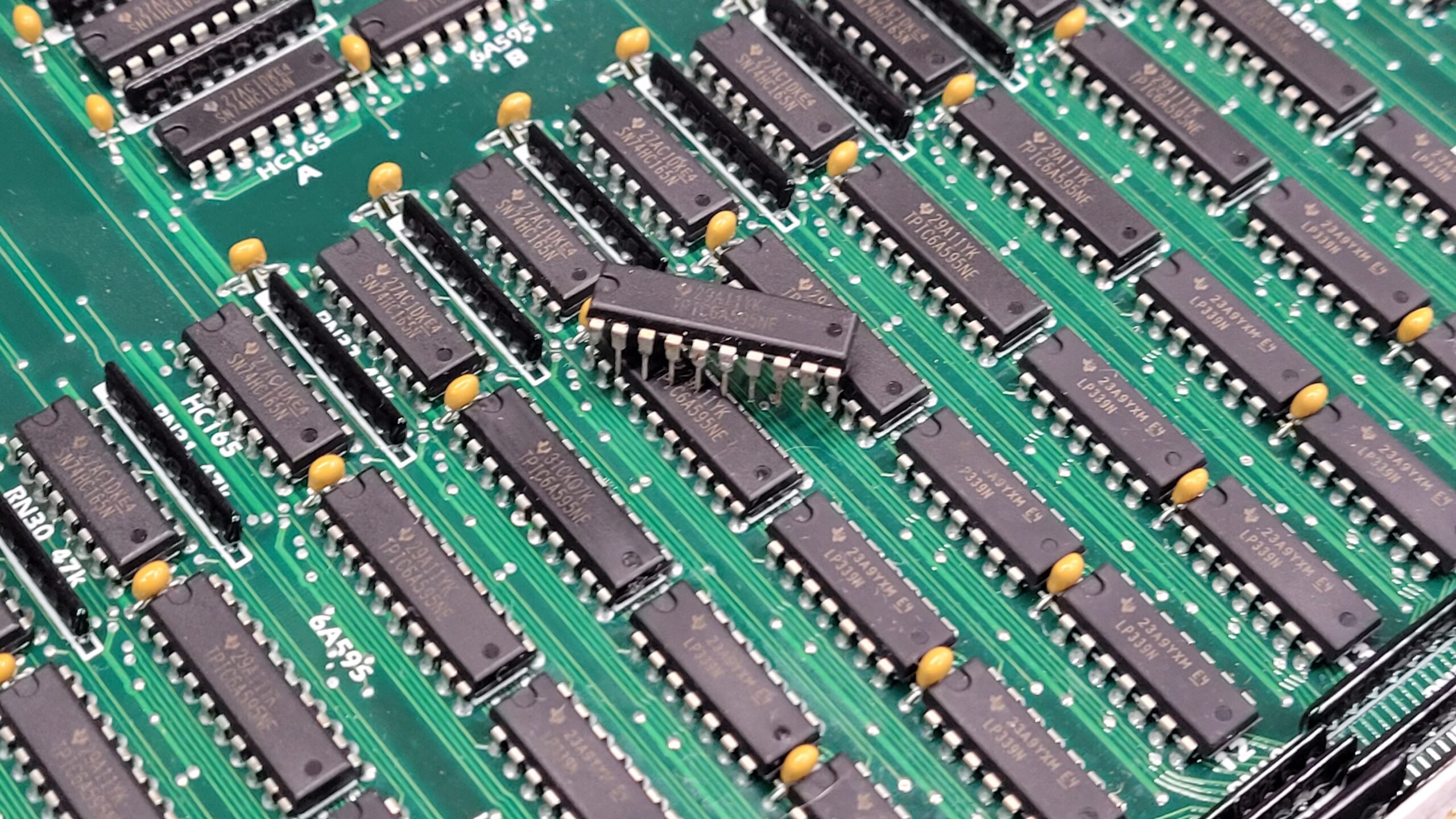

Here is the Fault. When I get time I will look in to it and publish the fix. Sadly no schematics from Cami Research so I will need to make the time for in-depth diagnostics.
More Soon…
