I now have not 1 But Two, Vintage Data I/O 29B Chip Programmers

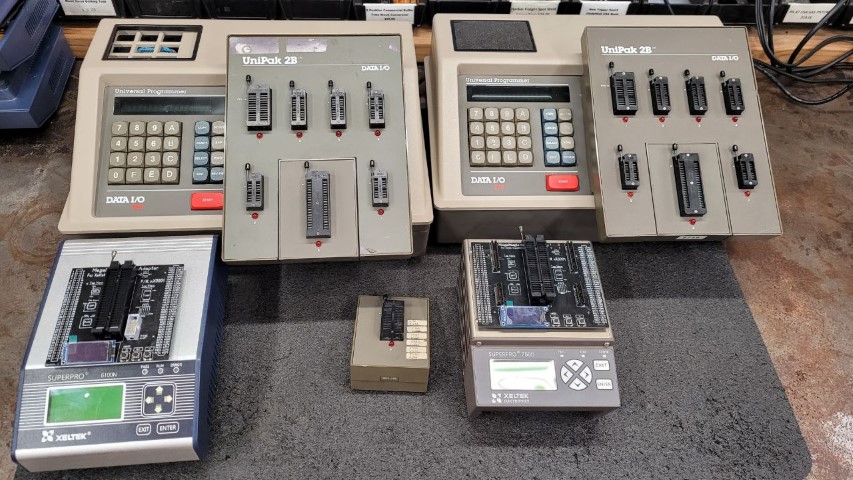

Size Comparison to Modern Xeltek Equipment 6100N Left and 7500 Right
Unboxing Video.
Data I/O 29B 64k and 1Meg Programmers Boot Time Comparison
Unboxing LogicPak 303A-V04 and Some Adapters

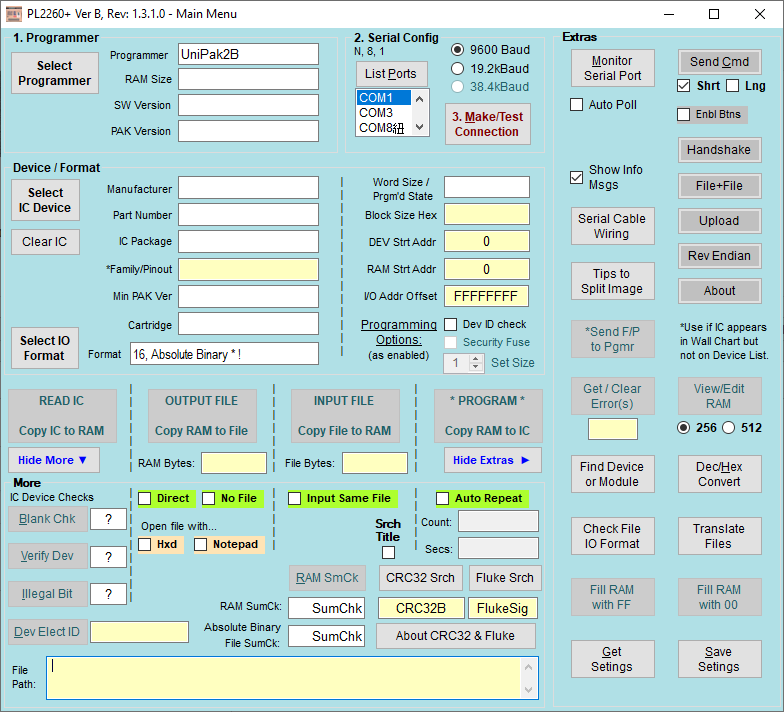

The Data I/O groups the user Mike DiBattista created a modern windows control software called PL2260+ download it here Note: This is the May 18 2024 release program is in active development so be sure to check the Data I/O groups.io for updated versions as I may not update this archive as often as newer versions are released.

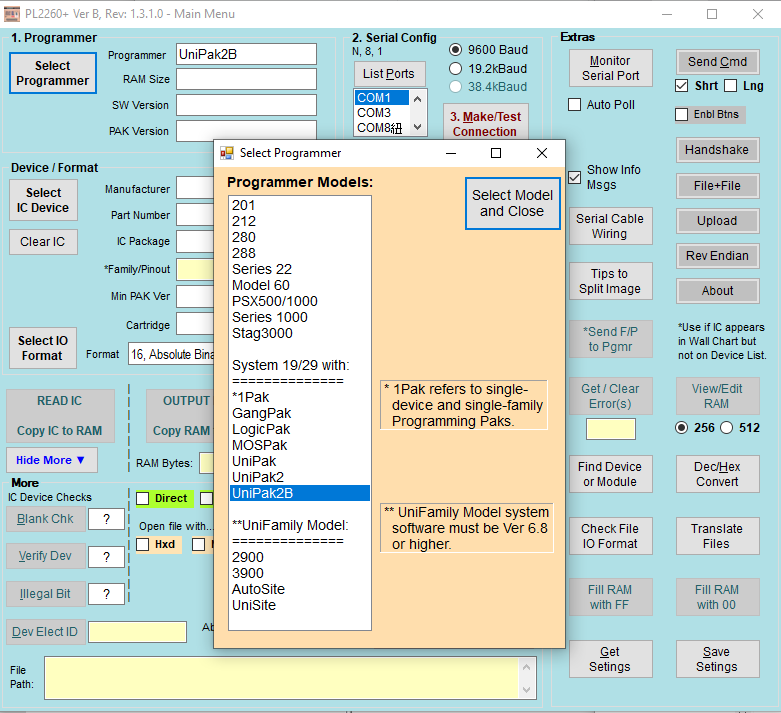

The PL2260+ software has support for a wide rage of Data I/O Models I will be giving this a try.

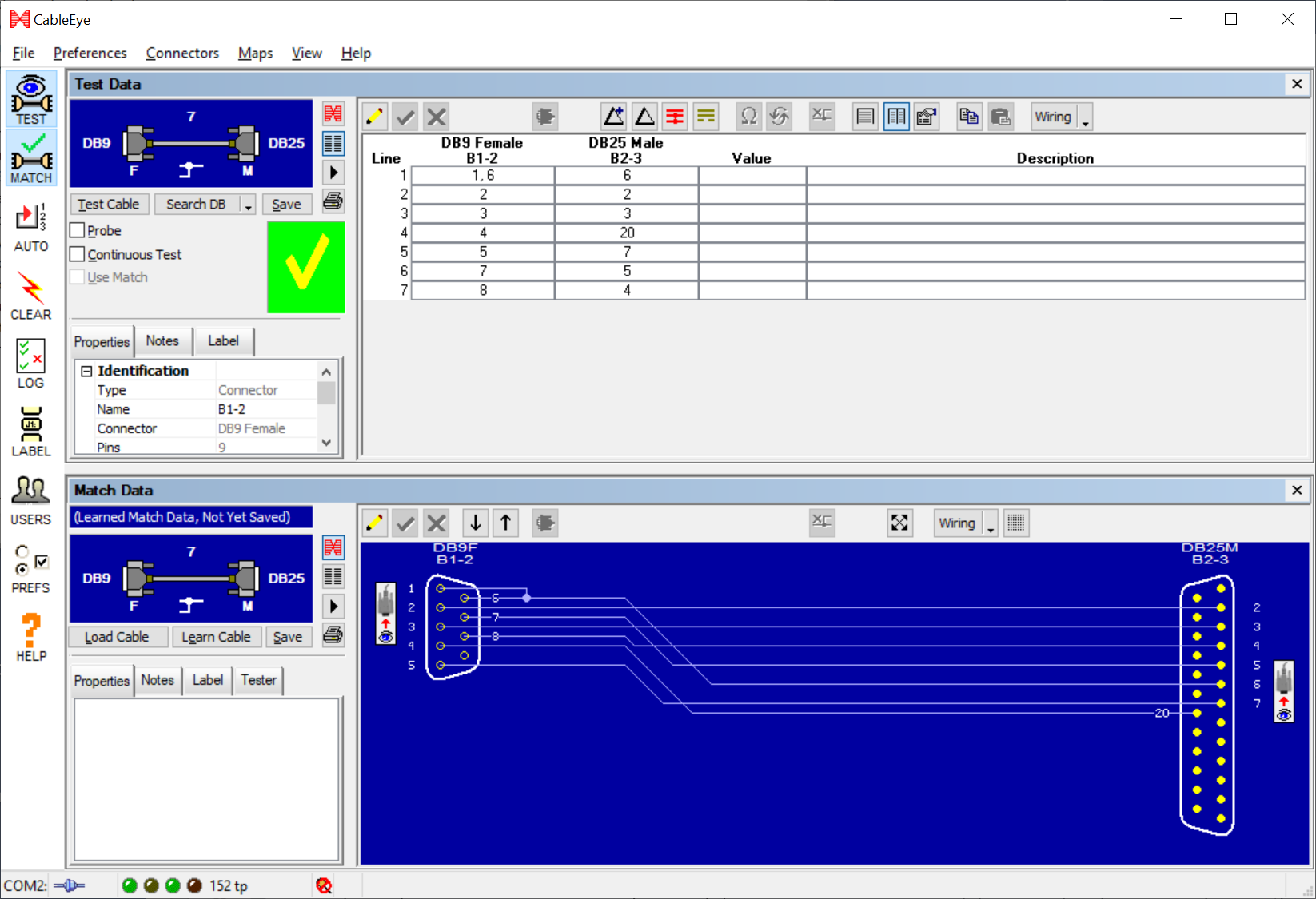

I Made and Tested a Serial Cable.

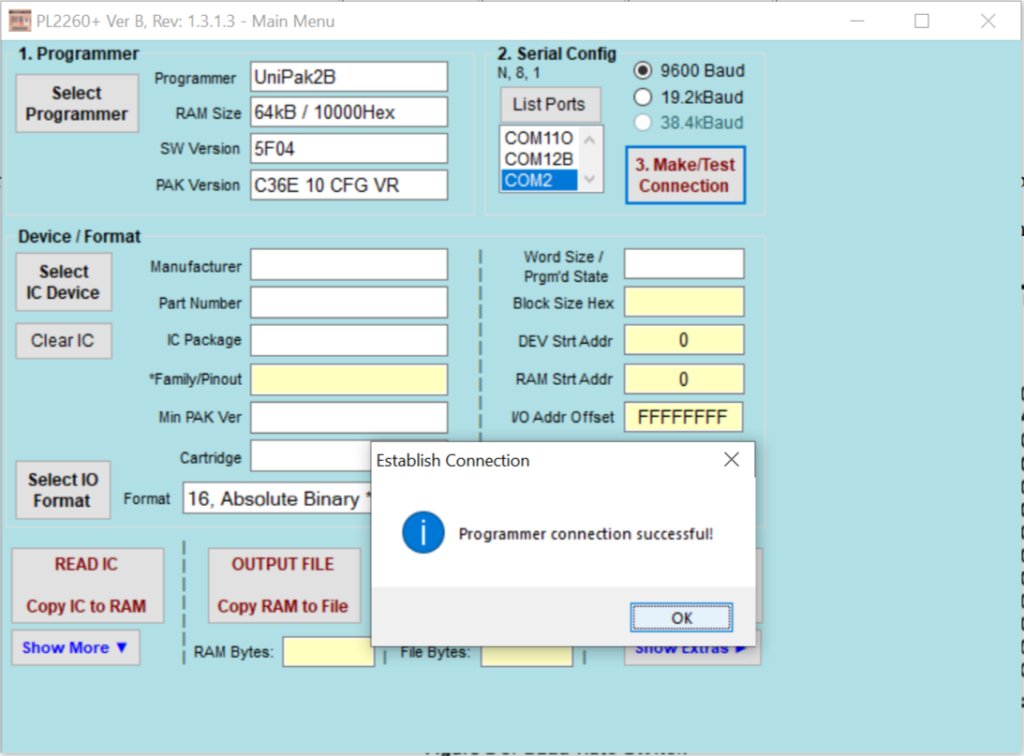

Installed The Most Recent Version of PL2260+ and I checked for communications the 29B With 64K and the Older Unipack 2B

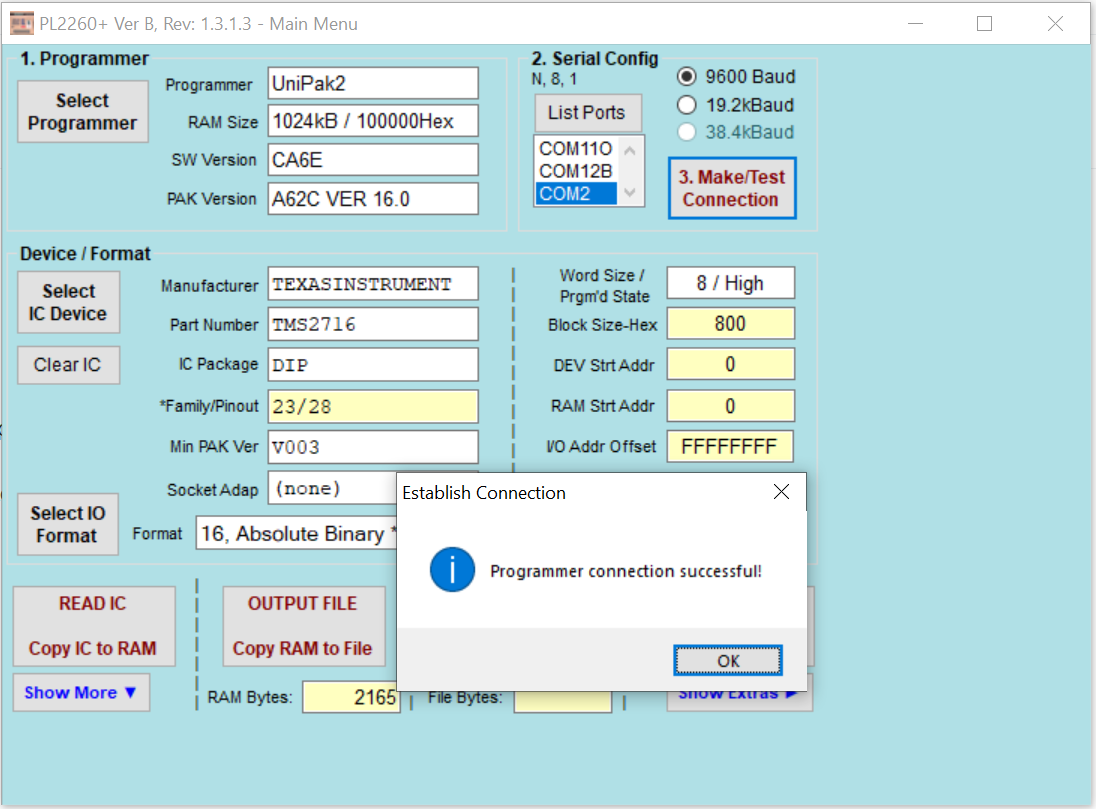

I checked for communications the 29B With 1Meg and the Newer Unipack 2B

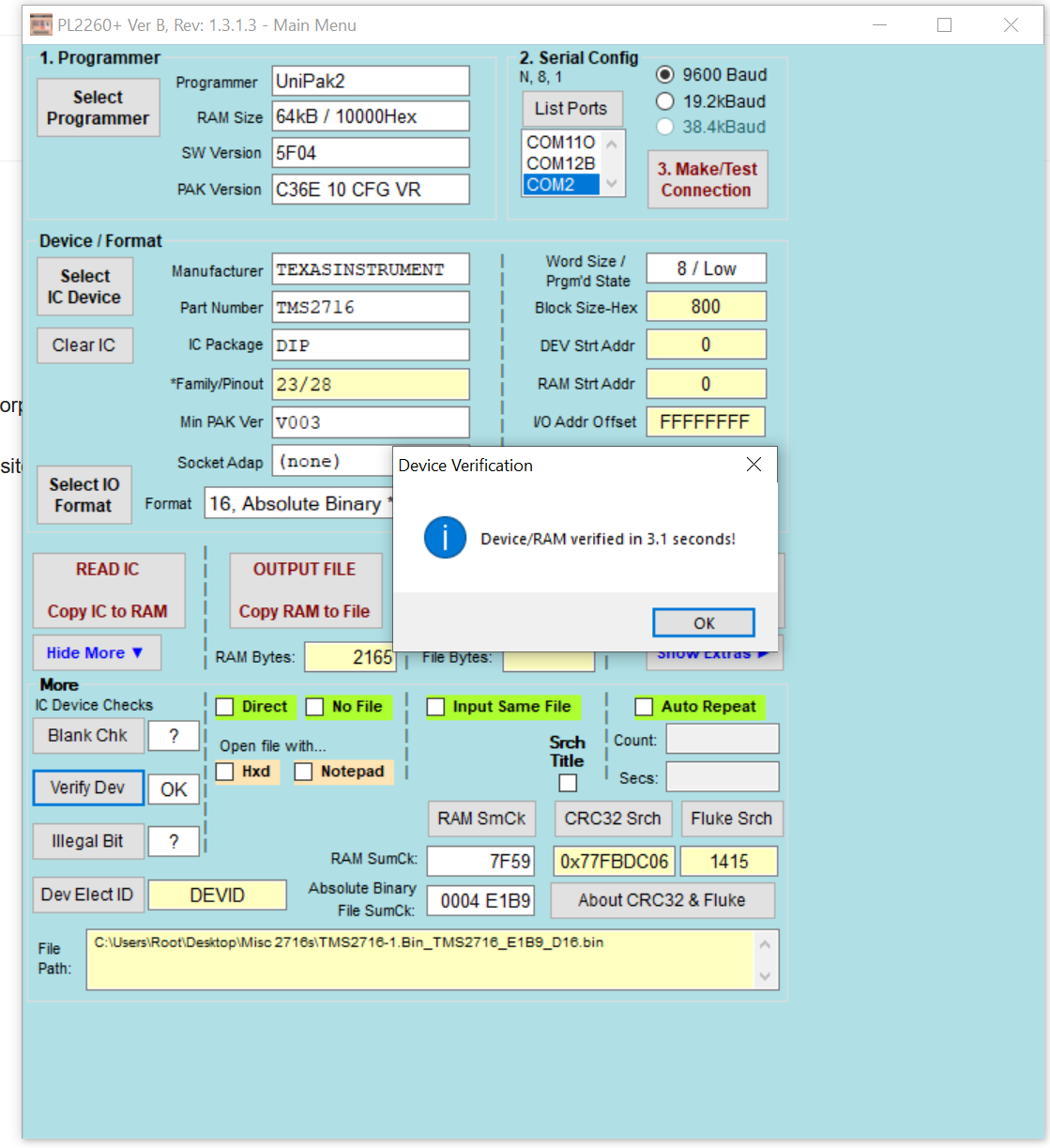

Read and Verify a TMS2716
More Soon.
Last Updated on August 22, 2024 by Steven Rhine
