As I found myself amidst the programmer drawer, curiosity piqued, I seized the opportunity to embark on a teardown expedition of the Genuine Xilinx Platform Cable USB II DLC10. It’s not your typical adventure, but delving into the intricacies of this compact JTAG programmer offers a unique perspective. So, here’s a quick and dirty teardown, contributing a touch of novelty to this week’s content lineup.

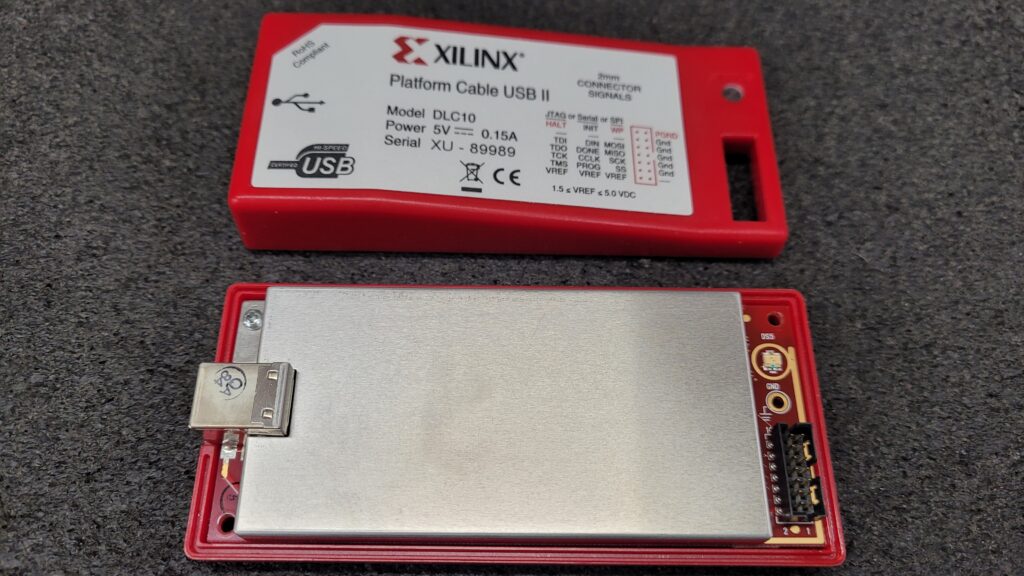

Cover Off, Nice Shielding Can.
Boards Removed Form The Housing
Shielding Cover Removed Simple 1 Screw.

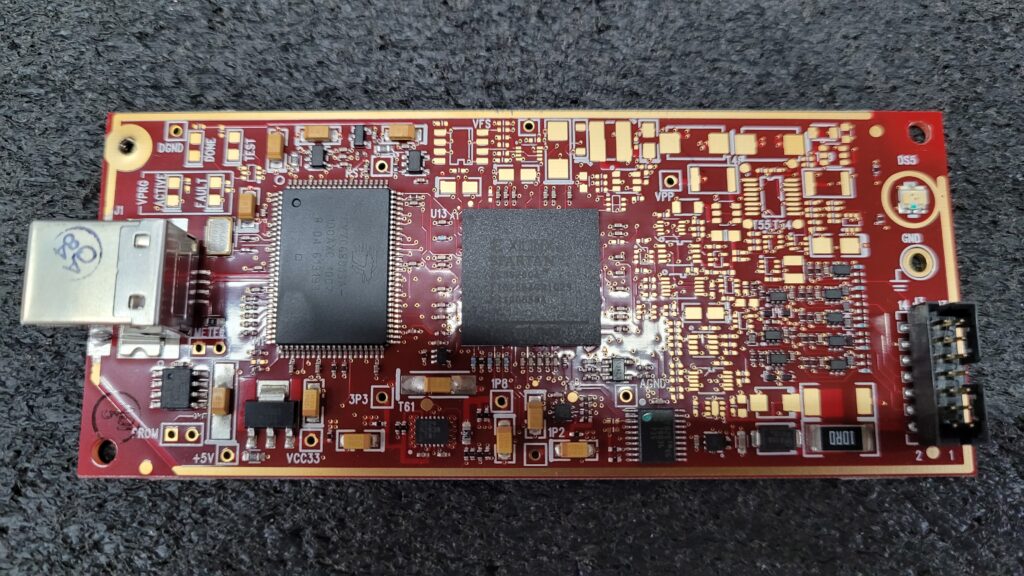

Top Of Board

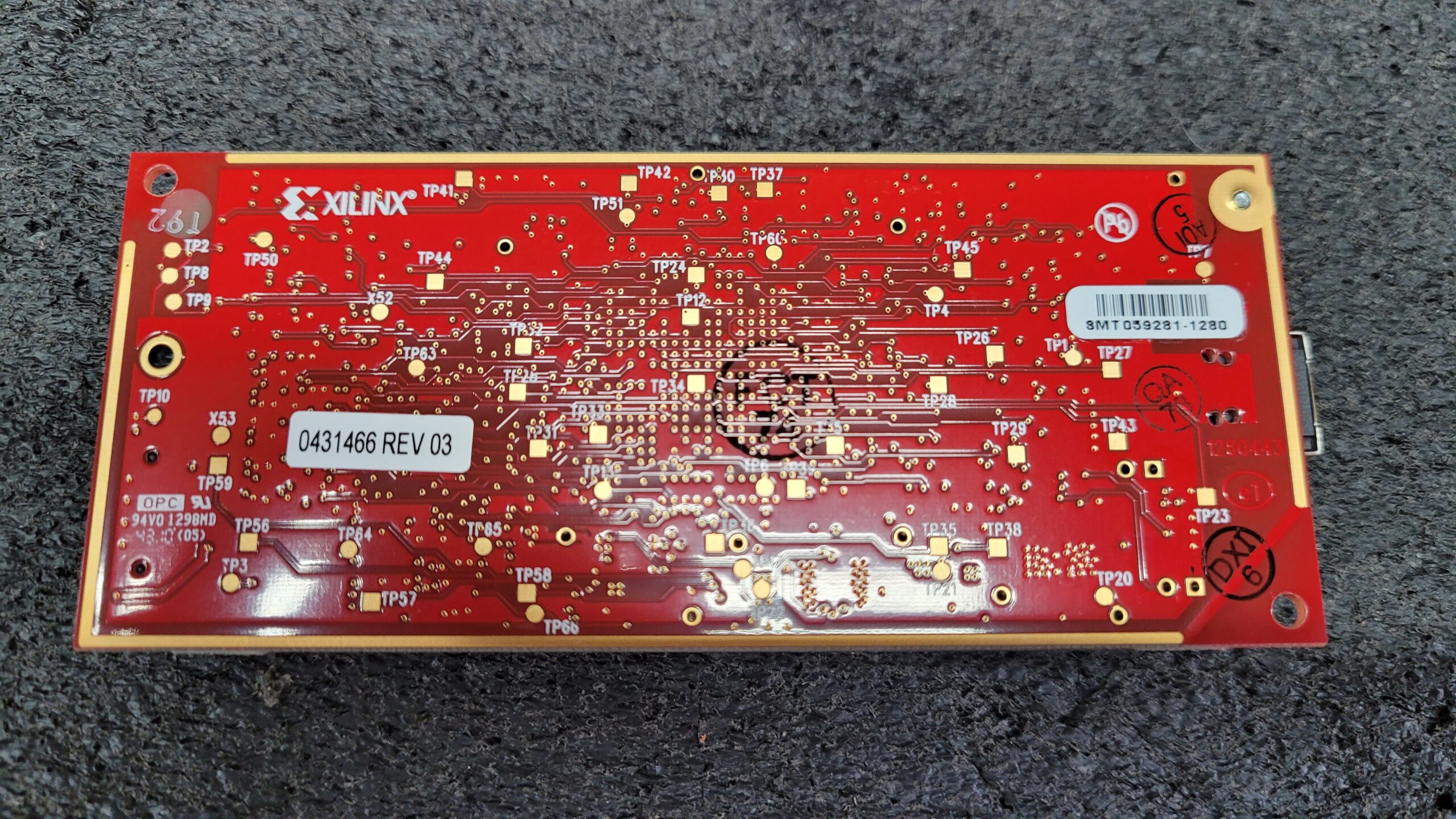

Bottom of Board
This prograsmmer packs a Xilinx xc3s200an-4ft256 FPGA and A Cypress EZ-USB FX2 CY7C68013A
I have more photos i may update later on so check back.
